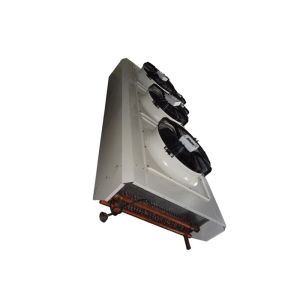

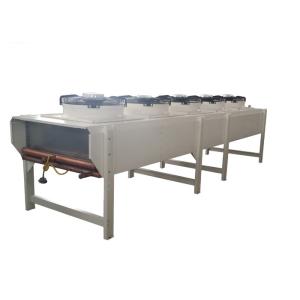

    Blow Moulding Machine CE Air Dry Coolers

    Ask Lasest Price
    Brand Name : Shenglin
    Model Number : SHSL-D3 Series
    Certification : CE
    Price : 2500~9500 USD per unit
    Payment Terms : T/T, Western Union
    Supply Ability : 50~100 units/ month
    Delivery Time : 35~40 days
    • Product Details
    • Company Profile

    Blow Moulding Machine CE Air Dry Coolers

    Power Plant And Power Station Use Air Dry Coolers

    Features

    Air discharge direction
    Performance ranges

    Cooling capacity: from 5 to 649 kw

    Air volume: from 2828 to 263503 m3/h

    Sound pressure level: from 31 to 69 dB A(10m)

    Dry coolers:customized on demand

    High efficiency heat exchanger

    Capacity designs for maximizing the heat transfer relative to the energy consumption of the fan.

    Tube and tube coupling design for low pressure drop in the coil on the media sides(maximum 100KPa at water designing condition).

    Our thermodynamic and aerodynamic designing software is long year tested and proved in Germany

    Fan

    Only choose low specific energy consumption fans.

    Fan nozzle designs for maximum air flow and air throw.

    Our fans from the world`s leading manufacturer are practically proved to be reliable in operation and long lasting.

    Motor: protection class IP 54 and insulation class F.

    Voltage:400V/3N/50Hz

    Air separator for each fan.

    TestingHeat exchangers are supplied clean and tested at a pressure of 30 bars
    Options

    Coil design refrigerant: water, oil, glycol.

    Multiple circuits.

    Sub-cooling circuits.

    Stainless steel or aluminum casing.

    Coated aluminum or copper fins.

    Explosion proof motor.

    Customized fin spacing.



    Technical parameter
    Dry cooler D3 series parameter(fin space 2.1mm)

    Type

    D3-206-

    4X800

    D3-250-

    6X800

    D3-292-

    6X800

    D3-307-

    6X800

    D3-340-

    8X800

    D3-389-

    8X800

    D3-406-

    8X800

    D3-431-

    8X800

    D3-491-

    10X800

    D3-512-

    10X800

    D3-607-

    12X800

    CapacityWater35℃ outdoor temp.Inlet45℃,KW205.8249.8291.9306.6340.5389.1406431.3490.6511.6606.9
    outlet40℃
    20% GlycolInlet45℃201.9238.8286.1300.8329.7381.5398.5420.5482.9504.1597.5
    outlet40℃
    MediumWater flowM3/h35.843.450.753.359.267.670.67585.388.9105.5
    Pressure dropkPa9221988846997982999897
    Air flowM3/h78781128728123170118174171631160328153274214533200405191587227449
    Fan motor(400V/3N/50HZ)W720010800108001080014400144001440018000180001800021600
    A15.222.822.822.822.830.430.438383845.6
    FanNo X φ2x2x8002x3x8002x3x8002x3x8002x4x8002x4x8002x4x8002x5x8002x5x8002x5x8002x6x800
    Sound pressure leveldB(A)5456565658585860606062
    10m
    DimensionLmm380056005600560074007400740092009200920011000
    Wmm21082108210821082108210821082108210821082108
    Hmm13281328132813281328132813281328132813281328
    Amm352853285328532871287128712889298929892910728
    B1mm17641776177617762376237623762232223222322682
    B2mm17641776177617762376237623762232223222322682
    B3mm--1776177617762376237623762232223222322682
    B4mm--------------2232223222322682
    Xmm20212021202120212021202120212021202120212021
    Inlet φmm4”DN125DN125DN125DN1252x4”2x4”2x4”2xDN1252xDN1252xDN125
    Inlet φmm4”DN125DN125DN125DN1252x4”2x4”2x4”2xDN1252xDN1252xDN125
    Product weight(empty)kg11271373146217041785181621502230238025902780
