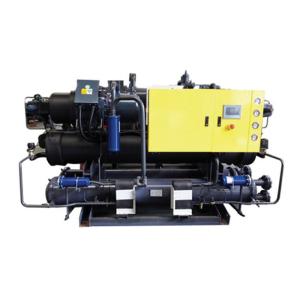

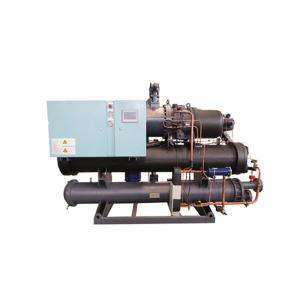

Water-cooled Screw Compressor Industrial Chiller With CE
Certification
Feature:
World famous brand screw type compressor equipped with the
high-efficiency-copper tube condenser and evaporator, together with
famous brand control components so as to ensure the small size, low
noise, small vibration, large energy, long service life and
convenient operation. Elegant design, excellent reliability and
high-quality performance make it outstanding in the refrigeration
field.
Features of the compressor:
1. World famous brand new type and high-efficient screw-rotor
compressor, with efficiency 20%~30% higher than those common ones.
It has obtained several patents of Europe and America countries and
passed the international quality certification of ISO9001.
2. High efficiency 5-to-6 rotor profile patent.
3. Capacity control apply to four-step
(100%-75%-50%-25%),three-step (100%-66%-33%) and no step control
system.
4. With 11 bearings and a balance piston against axial thrust. This
extends longer bearings life 2.5 to 3.5 times than traditional
design.
5. Designed with efficient silicon steel and special slots , and
equipped with the inside and outside all around design to cool the
flow channel so to ensure maximum efficiency of the compressor
motor under any load.
6. Built-in oil pressing system ensure compressor maintaining the
optimal lubricity without oil pump.
7. High efficiency double filtration oil separator ensures maxinum
heat exchanger.
8. Efficient, low noise and small vibration.
9. Various options of refrigerants, R22, environment-friendly
R134A, R407C etc.
10. All-wave compressor volume ratio(Vi=2.2/2.6/3.0/3.5) for
selection to avoid the extra energy consumption caused by over or
under compression.
Technical paramater:
Water screw chiller parameters (outlet temp 7℃ Single compressor)
| Model | SLW- |
| UNIT | 100.1 | 135.1 | 180.1 | 195.1 | 235.1 | 260.1 | 305.1 | 320.1 | 350.1 | 385.1 |
| Cooling capacity | Btu | 341200.00 | 460620.00 | 614160.00 | 665340.00 | 801820.00 | 887120.00 | 1040660.00 | 1091840.00 | 1194200.00 | 1313620.00 |
| RT | 28.41 | 38.35 | 51.14 | 55.40 | 66.76 | 73.86 | 86.65 | 90.91 | 99.43 | 109.38 |
| Kw | 100.00 | 135.00 | 180.00 | 195.00 | 235.00 | 260.00 | 305.00 | 320.00 | 350.00 | 385.00 |
| x104Kcal/h | 8.60 | 11.60 | 15.50 | 16.80 | 20.30 | 22.40 | 26.30 | 27.60 | 30.20 | 33.20 |
| Control mode | PLC automatic control |
| power source | 380V/3N/50Hz |
| Compressor | Type | 5-6 asymmetric semi-hermetic twin screw compressors |
| Startup type | Y-△ |
| Energy regulation | 0-33-66-100% | 0-25%-50%-75%-100% |
| Qty | 1.00 |
| Input power | KW | 22.60 | 29.80 | 37.30 | 41.00 | 49.90 | 54.30 | 61.10 | 64.30 | 70.80 | 78.00 |
| Operation Current | A | 39.30 | 51.90 | 64.90 | 71.30 | 86.80 | 94.50 | 106.30 | 111.90 | 123.20 | 135.70 |
| Condenser | Type | High efficiency copper dry type shell-and-tube heat exchanger |
| Water pipe connection | mm | DN65 | DN80 | DN100 | DN125 |
| Cooling Water Flow | m³/h | 21.50 | 29.00 | 38.70 | 41.90 | 50.50 | 55.90 | 65.60 | 68.80 | 75.30 | 82.80 |
| Water pressure | kpa | 46.00 | 46.00 | 47.00 | 47.00 | 48.00 | 49.00 | 51.00 | 53.00 | 53.00 | 56.00 |
| Evaporator | Type | Horizontal shell-and-tube/Coil type high efficiency copper heat
exchanger |
| Water pipe connection | mm | DN65 | DN80 | DN100 | DN125 |
| Chilled water Flow | m³/h | 17.20 | 23.20 | 31.00 | 33.60 | 40.60 | 44.80 | 52.60 | 55.20 | 60.40 | 66.40 |
| Water pressure | kpa | 48.00 | 48.00 | 50.00 | 50.00 | 50.00 | 52.00 | 54.00 | 55.00 | 55.00 | 58.00 |
| Refrigerant | Type | R22 |
| kilogram | kg | 20.00 | 27.00 | 36.00 | 39.00 | 47.00 | 52.00 | 61.00 | 64.00 | 70.00 | 77.00 |
| Safety protection | high and low pressure protection, overload protection, over
temperature protection, phase sequence protection, etc. |
| Dimensions (L*W*H) | Length | mm | 2100 | 2360 | 2450 | 2860 | 2860 | 2860 | 2860 | 2860 | 2860 | 3225 |
| Width | mm | 700 | 700 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| High | mm | 1410 | 1520 | 1580 | 1600 | 1720 | 1745 | 1745 | 1770 | 1880 | 1960 |
| Net Weight | kg | 850 | 1050 | 1270 | 1340 | 1640 | 1680 | 1720 | 1750 | 2080 | 2300 |
| Operating weight | kg | 900 | 1150 | 1420 | 1540 | 1890 | 1940 | 1990 | 2050 | 2330 | 2550 |
| Model | SLW- |
| UNIT | 420.1 | 500.1 | 530.1 | 570.1 | 610.1 | 635.1 | 740.1 | 815.1 | 865.1 | 965.1 |
| Cooling capacity | Btu | 1433040.00 | 1706000.00 | 1808360.00 | 1944840.00 | 2081320.00 | 2166620.00 | 2524880.00 | 2780780.00 | 2951380.00 | 3292580.00 |
| RT | 119.32 | 142.05 | 150.57 | 161.93 | 173.30 | 180.40 | 210.23 | 231.53 | 245.74 | 274.15 |
| Kw | 420.00 | 500.00 | 530.00 | 570.00 | 610.00 | 635.00 | 740.00 | 815.00 | 865.00 | 965.00 |
| ×104Kcal/h | 36.00 | 43.00 | 46.00 | 49.00 | 53.00 | 55.00 | 64.00 | 70.00 | 75.00 | 83.00 |
| Control mode | PLC automatic control |
| power source | 380V/3N/50Hz |
| Compressor | Type | 5-6 asymmetric semi-hermetic twin screw compressors |
| Startup type | Y-△ |
| Energy regulation | 0-25%-50%-75%-100% |
| Qty | 1 |
| Input power | KW | 84.10 | 99.70 | 105.20 | 114.00 | 122.80 | 126.70 | 147.50 | 162.00 | 172.00 | 193.40 |
| Operation Current | A | 146.30 | 173.50 | 183.00 | 198.40 | 213.70 | 220.50 | 256.70 | 281.90 | 299.30 | 336.50 |
| Condenser | Type | High efficiency copper dry type shell-and-tube heat exchanger |
| Water pipe connection | mm | DN125 | DN150 |
| Cooling Water Flow | m³/h | 90.30 | 107.50 | 114.00 | 122.60 | 131.20 | 136.50 | 159.10 | 175.20 | 186.00 | 207.50 |
| Water pressure | kpa | 56.00 | 60.00 | 65.00 | 65.00 | 67.00 | 67.00 | 68.00 | 68.00 | 68.00 | 68.00 |
| Evaporator | Type | Horizontal shell-and-tube/Coil type high efficiency copper heat
exchanger |
| Water pipe connection | mm | DN125 | DN150 |
| Chilled water Flow | m³/h | 72.00 | 86.00 | 92.00 | 98.00 | 106.00 | 110.00 | 128.00 | 140.00 | 150.00 | 166.00 |
| Water pressure | kpa | 60.00 | 62.00 | 67.00 | 68.00 | 68.00 | 69.00 | 69.00 | 70.00 | 70.00 | 70.00 |
| Refrigerant | Type | R22 |
| kilogram | kg | 84.00 | 100.00 | 105.00 | 113.00 | 121.00 | 126.00 | 147.00 | 162.00 | 172.00 | 192.00 |
| Safety protection | high and low pressure protection, overload protection, over
temperature protection, phase sequence protection, etc. |
|
| Dimensions (L*W*H) | Length | mm | 3225 | 3225 | 3505 | 3605 | 3605 | 3720 | 3720 | 3930 | 3930 | 4230 |
| Width | mm | 900 | 900 | 900 | 900 | 900 | 1100 | 1100 | 1100 | 1100 | 1100 |
| High | mm | 1960 | 2010 | 2010 | 2080 | 2110 | 2110 | 2110 | 2110 | 2150 | 2150 |
| Net Weight | kg | 2570 | 2850 | 2900 | 3100 | 3450 | 3600 | 3850 | 4050 | 4230 | 5150 |
| Operating weight | kg | 3950 | 3000 | 3200 | 3450 | 3750 | 3900 | 4180 | 4450 | 4600 | 5650 |
Note:
1. Chilled water inlet temperature 12 ℃, chilled water outlet
temperature 7 ℃; cooling water inlet temperature of 30 ℃ cooling
water outlet temperature of 35 ℃;
2. Temperature conditions: Chilled water outlet temperature range 5
℃ -15 ℃,cooling water inlet temperature ranger 19℃-33℃
3. Safe operating range : Chilled water inlet temperature 9℃-20℃;
4. The using compressor is closed turbine imported from Europe and
the United States , superior performance, strong ability of
anti-effusion;
5. Nominal operating conditions in the evaporator and condenser
water side fouling factor of 0.018m² ℃ / kw, condenser water side
fouling factor of 0.044 m² ℃ / kw;
6. Water side of the evaporator and condenser, designed to
withstand a pressure of 1.0MPa;
7. The actual head of Host is that the pump head minus head losses
within the host;
8. In addition to the specifications and requirements, We can
provide non-standard products according to customer requirements.
Application:
Our water cooled screw chillers, water cooled screw type low
temperature unit, flooded type water hillers, air-cooled screw
chiller, air-cooled, water-cooled box type chillers products have
been widely used in chemical industry, chemical fiber, plastics,
oil, food, as long as the industry, printing, electroplating,
electronics and other industries.
