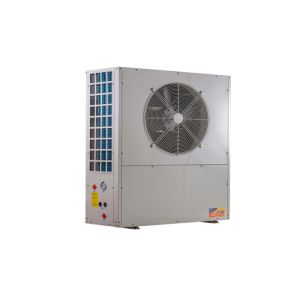

    Water Heater DKFXR High Temp Air Source Heat Pumps EVI Low Cold Condition

    Ask Lasest Price
    Brand Name : Shenglin
    Model Number : DKFXR series
    Certification : CE
    Price : 1700~7250USD
    Payment Terms : T/T, Western Union
    Supply Ability : 1000 PCS/month
    Delivery Time : 18~20 days
    • Product Details
    • Company Profile

    Water Heater DKFXR High Temp Air Source Heat Pumps EVI Low Cold Condition

    -30℃ Low Temperature Commercial Water Heater Heat Pump


    Description:

    This series water heater can work in very low temp., down to -30℃. The heat pump is equipped with EVI compressor and high efficiency in low cold conditions, its heating performance is higher by 50-80% than normal water heater heat pump. It is widely used in cold climate and even work well at -30℃, supply the hot water for villa, hotel, office, hospital etc.

    Features:

    Copeland EVI compressor and Schneider electrical components.
    Working ambient temperature down to -30℃
    Automatically defrosting.
    Intelligent controller and adjustment by microprocessor.
    High efficiency tube in shell heat exchanger.
    Easy installation and operation.

    Optional:

    Galvanized metal cabinet or stainless steel cabinet.
    Refrigerant: R22, R407C and R410A


    Technical paramater:


    -30℃ Low temperature commercial water heater heat pump
    MODELDKFXR-017SIIDKFXR-033UIIDKFXR-060UII
    Ambient temp. range-30~+43℃-30~+43℃-30~+43℃
    Rated heating capacityKW16.53360
    COPW/W3.73.83.8
    Rated power inputKW4.458.715.6
    Max. running currentA12.52648
    Power supply/380V 3N~50Hz
    IP code/IPX4
    Safety function/High and low pressure protection; Overload protection;
    Temperature protection; Power phase sequence protection, etc.
    Refrigerant type/weight-/kgR407c/4.0R407c/4.0×2R407c/8.5×2
    Compressor QTYPCS122
    Compressor type/EVI Scroll Compressor
    Max. temp. outlet water60
    Water side heat exchanger type/Shell heat exchanger
    Air side heat exchanger type/Finned heat exchanger
    Waterpipe nozzle size/G1'' Internal threadG1.5'" Internal threadDN100
    Rated water flowm³/h2.85.710.3
    Air out type/SidewardTop dischargeTop discharge
    Fan motor QTYPCS112
    NoisedB/(A)566269
    Machine dimension (W×D×H)mm1120×405×13551500×690×12702100×1100×2000
    Packing dimension (W×D×H)mm1200×540×15301550×740×14002140×1200×2040
    Net weightkg155350700
    Gross weightkg165370750
    Remarks:
    1. Test conditions: (DB/WB) 7°C/6°C, inlet water temperature 9°C, outlet water temperature 55°C.
    2. Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard.

    Packing:




    EVI heat pump diagram:



    Why choose us?
    A. Technical service
    1. We calculate the capacity and recommend the best models.
    2. We supply you the professional refrigeration technical support and electronic technical support for your installation,
    debugging and operation.
    3. We supply the spare parts and technical support in and after the warranty time.
    4. We supply the training course to your workers at our factory if you need, we can also offer site training.
    5. We welcome you to be our partner.
    B. After-sales service
    1. Technical support for your installation, operation and maintenance.
    2. Standard warranty time: One year warranty for heat pumps
    You can also pay for extended warranty or we can renegotiate the longer warranty period.
    3. Spare parts and technical support at most economic prices after the warranty.
    C. Certificate we have got :
    1. CE
