120x55x29 mm 30311D 30311C3 30311V2 Taper Roller Bearing P0 P4 P2 Quality Level

    Buy cheap 120x55x29 mm  30311D 30311C3 30311V2   Taper Roller Bearing P0 P4 P2 Quality Level from wholesalers

    Buy cheap 120x55x29 mm  30311D 30311C3 30311V2   Taper Roller Bearing P0 P4 P2 Quality Level from wholesalers
    • Buy cheap 120x55x29 mm  30311D 30311C3 30311V2   Taper Roller Bearing P0 P4 P2 Quality Level from wholesalers
    • Buy cheap 120x55x29 mm  30311D 30311C3 30311V2   Taper Roller Bearing P0 P4 P2 Quality Level from wholesalers
    • Buy cheap 120x55x29 mm  30311D 30311C3 30311V2   Taper Roller Bearing P0 P4 P2 Quality Level from wholesalers
    • Buy cheap 120x55x29 mm  30311D 30311C3 30311V2   Taper Roller Bearing P0 P4 P2 Quality Level from wholesalers

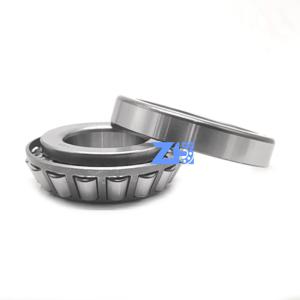

    120x55x29 mm 30311D 30311C3 30311V2 Taper Roller Bearing P0 P4 P2 Quality Level

    Ask Lasest Price
    Brand Name : ZH
    Model Number : 30311D
    Price : Factory price
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30000 Set/Sets per Month
    Delivery Time : 2-5 days
    Certification : IS09001
    MOQ : 1
    • Product Details
    • Company Profile

    120x55x29 mm 30311D 30311C3 30311V2 Taper Roller Bearing P0 P4 P2 Quality Level

    120x55x29 mm 30311D 30311C3 30311V2 Taper Roller Bearing P0 P4 P2 Quality Level


    Product introduction

    • Tapered roller bearings mainly bear radial and axial combined loads. Bearing bearing capacity depends on the raceway angle of the outer ring. The larger the carrying capacity. This type of bearing is a separate bearing, which is divided into single, double and four-row tapered roller bearings according to the number of rows of rolling elements in the bearing.
    • The angle is between 10 degrees and 19 degrees. It can withstand the joint action of axial load and radial load simultaneously. The bigger the contact angle is, the greater the capacity will be.
    • inner diameter size range: 20 mm to 1270 mm
    • diameter size range: 40 mm to 1465 mm


    Product Name
    taper roller bearing
    Type
    30311D
    Material
    Chrome Steel
    Characteristic
    Easy to replace and install, well sealed, suitable for high dust environment, multiple fixing methods are optional, and multiple
    designs are used.
    Delivery time
    5-7 days,Related by order quantity
    Application
    Stacker and reclaimer, conveyor, pump and other equipment






    Dimensions

    d
    55 mm
    Bore diameter
    D
    120 mm
    Outside diameter
    T
    63 mm
    Total width
    2B
    58 mm
    Width of inner rings
    b
    8 mm
    Width of lubrication groove
    K
    4.5 mm
    Diameter of lubrication hole
    r3,4
    min.2 mm
    Chamfer dimension
    r5
    min.0.6 mm
    Chamfer dimension


    Abutment dimensions

    da
    max.72 mm
    Diameter of shaft abutment
    Da
    min.104 mm
    Diameter of housing abutment
    Da
    max.110.5 mm
    Diameter of housing abutment
    Ca
    min.4 mm
    Minimum width of space required in housing on large side face
    ra
    max.2.5 mm
    Radius of fillet
    rc
    max.0.6 mm
    Radius of fillet


    D(mm) d(mm) B(mm) Weight(kg)
    30306 72 30 19 0.398
    30306D 72 30 19 0.398
    32306 72 30 27 0.592
    320/32X 58 32 17 0.181
    332/32 65 32 26 0.395
    323/32C 75 32 28 0.659
    32907XU 55 35 14 0.121
    32007X 62 35 18 0.224
    33007 62 35 21 0.263
    30207 72 35 17 0.344
    32207 72 35 23 0.457
    32207C 72 35 23 0.461
    32207CR 72 35 23 0.461
    33207 72 35 28 0.531
    30307 80 35 21 0.54
    30307C 80 35 21 0.517
    30307D 80 35 21 0.53
    32307 80 35 31 0.787
    32307C 80 35 31 0.797
    32908XU 62 40 15 0.161
    32008X 68 40 19 0.273
    33008 68 40 22 0.312
    33108 75 40 26 0.494
    30208 80 40 18 0.435
    32208 80 40 23 0.558
    33208 80 40 32 0.728
    T2EE040 85 40 32.5 0.907
    30308 90 40 23 0.769
    30308C 90 40 23 0.728
    30308D 90 40 23 0.738
    32308U 90 40 33 1.08
    32308C 90 40 33 1.1
    32909XU 68 45 15 0.188
    32009X 75 45 20 0.346
    33009 75 45 24 0.398
    33109 80 45 26 0.542
    30209 85 45 19 0.495
    32209 85 45 23 0.607
    33209 85 45 32 0.783
    30309 100 45 25 1.01
    30309D 100 45 25 0.958
    32309U 100 45 36 1.46
    32910XU 72 50 15 0.191
    32910 72 50 14 0.192
    32010X 80 50 20 0.366
    33010 80 50 24 0.433
    33110 85 50 26 0.58
    30210 90 50 20 0.563
    32210 90 50 23 0.648
    33210 90 50 32 0.852
    T2ED050 100 50 35 1.31
    T7FC050 105 50 29 1.23
    30310 110 50 27 1.31
    30310D 110 50 27 1.25
    32310U 110 50 40 1.92
    32911XU 80 55 17 0.274
    32011X 90 55 23 0.563
    33011 90 55 27 0.643
    33111 95 55 30 0.846
    30211 100 55 21 0.74
    32211 100 55 25 0.876
    33211 100 55 35 1.15
    30311 120 55 29 1.66
    30311D 120 55 29 1.59
    32311U 120 55 43 2.44
    32912XA 85 60 17 0.296
    32012X 95 60 23 0.576
    33012 95 60 27 0.684
    33112 100 60 30 0.912

    Dimensions

    d
    55 mm
    Bore diameter
    D
    120 mm
    Outside diameter
    T
    63 mm
    Total width
    2B
    58 mm
    Width of inner rings
    b
    8 mm
    Width of lubrication groove
    K
    4.5 mm
    Diameter of lubrication hole
    r3,4
    min.2 mm
    Chamfer dimension
    r5
    min.0.6 mm
    Chamfer dimension


    Calculation data

    Basic dynamic load rating C
    302 kN
    Basic static load rating C0
    325 kN
    Fatigue load limit Pu
    39 kN
    Reference speed
    3 800 r/min
    Limiting speed
    5 600 r/min
    Limiting value e
    0.35
    Calculation factor Y1
    1.9
    Calculation factor Y2
    2.9
    Calculation factor Y0
    1.8

    30311D Collection

    I84M5X130 30314D NUP309 30312D=155 NUP206=100
    M5X180 30312D NUP308 M2X120 NUP2208
    32205 30309D GM35VL 32207 NUP2211
    T7FC060 NUP2207=140 NUP2206=130 NUP205E HMGC48
    M2X150 30312D 6008 NUP207=120 NUP309
    M2X170 NUP2209 NUP307 NUP2209=160 30312D
    M2X210 JMF23 30210 6305 GM35VA
    HMGF57 JMF151 30311D NUP2211=250 30312D=155
    NUP306 11749/11710 30210 KMF160-PC360-7 SG04
    NUP307 NUP309=180 KMF125-PC200-8 MSG-27P SG025
    KMF41-PC60 NUP309 M2X96 NUP207 HMGC32
    NUP308 NUP206 MCB172 HMS072 HMGF35
    JMF29 6305M NUP206E AP5S67 M2X63
    NUP307 4T-30307 M2X55 NUP308=140 NUP2208=210
    30312D SG08 NUP307 T7FC055=300 NUP307=110
    NIP2310 GM17VA NUP307 NUP309 JMF195
    NUP208E JMV-44/22 NUP309=180 JMF250 NUP2212
    NUP308=14 KMF125-PC200-7 JMV-53/31 15578
    T7FC065 NUP2310 NUP310 MAG85 NUP306
    30309D=110 30309D KMF90-PC200-6 30312 NUP308
    NUP207/NUP306 NUP2211 NUP2206 NUP207
