    Spherical Roller Bearing V5 V3 P0 P5 P3 Neutral packing high quality Bearings 22212CA CHROME STEEL

    Ask Lasest Price
    Model Number : 22212CA
    Price : interview
    Payment Terms : T/T, Western Union,,
    Supply Ability : 30000 Set/Sets per Month
    Delivery Time : 5-8 work day
    Brand Name : ZH
    Certification : IS09001
    MOQ : 1
    • Product Details
    • Company Profile

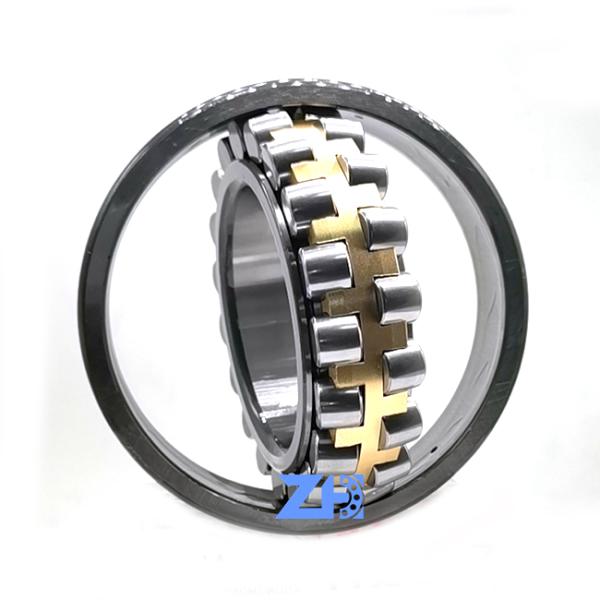

    Spherical Roller Bearing V5 V3 P0 P5 P3 Neutral packing high quality Bearings 22212CA CHROME STEEL

    22212CA 22212CAK 22212CARS P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME Spherical Roller Bearings


    Product introduction

    Spherical roller bearings 22212 with two rollers, mainly bear radial load, but also can withstand axial load in either direction. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, so the good performance of its self-aligning, can compensate concentricity error.

    Spherical roller bearing with relubrication features

    Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

    • Accommodate misalignment
    • High load carrying capacity
    • Relubrication features
    • Low friction and long service life
    • Increased wear resistance

      Dimensions

      d
      60 mm
      Bore diameter
      D
      110 mm
      Outside diameter
      B
      28 mm
      Width
      d2
      72.7 mm
      Shoulder diameter of inner ring
      D1
      96.5 mm
      Shoulder/recess diameter of outer ring
      b
      6 mm
      Width of lubrication groove
      K
      3 mm
      Diameter of lubrication hole
      r1,2
      min.1.5 mm
      Chamfer dimension

      Abutment dimensions

      da
      min.69 mm
      Diameter of shaft abutment
      Da
      max.101 mm
      Diameter of housing abutment
      ra
      max.1.5 mm
      Radius of fillet

      Calculation data

      Basic dynamic load ratingC
      159 kN
      Basic static load ratingC0
      166 kN
      Fatigue load limitPu
      18.6 kN
      Reference speed
      5 600 r/min
      Limiting speed
      7 500 r/min
      Limiting valuee
      0.24
      Calculation factorY1
      2.8
      Calculation factorY2
      4.2
      Calculation factorY0
      2.8
      Bore diameter:60mmLubrication hole type:Lubrication Groove & Hole
      Outside diameter:110mmOperating temperature range:Maximum of +390 °F
      Overall width:28mmCage material:Steel
      Bore type:Tapered BoreBearing material:Steel
      Outer ring type:Not SplitCage type:Inner Ring Guided
      Internal clearance:C3Precision rating:Not Rated
      Closure type:OpenFinish/coating:Uncoated
    • The recommended product can be matched with the bearing

      MSG-27PNUP2206NUP206NUP2208=210NUP207NUP207/NUP306NUP309T7FC055
      AP5S53NUP22076305MNUP307=110NUP30730309D30312DT7FC055
      M5X130NUP22074T-3030730312NUP30730312D30314D32207
      M5X180NUP207=120NUP30630312DNUP2208NUP220930312D
      32205NUP2209=160NUP30730312DNUP2211NUP22096008
      T7FC060NUP2207=140HMK3525+IRNUP310NUP308NUP2209NUP307
      NUP207NUP2206=13030309DNUP308NUP309NUP221230311D
      6213NUP309=18030210NUP306NUP309NUP2212T7FC055
      NUP308NUP309=18030210NUP307NUP2212NUP2211NIP2310
      NUP309NUP31030311DNUP205E30312D=15530312D=155NUP208E
      JMF29SG08SG04GM35VAM2X96M2X120NUP308=140
      JMF23GM17VASG025GM35VLMCB172M2X146T7FC065
      JMF151JMV-44/22SG02GM38VBHMT36FAM2X150NUP207
      JMF195JMV-53/31SG15MAG150HMGC32M2X170HMS072
      JMF250MAG85SG20TM09HMGF35M2X210AP5S67
      M2X55MAG120KMF41-PC60-7GM18VLHMGF36HMGF5711749/11710
      M2X63MAG150KMF90-PC200-6KMF125-PC200-7HMGC48DNB50/60NUP2310
