Double Glazing Glass Processing Butyl Extruder for IGU
Overview of butyl gule extrusion coating machine
LJTB01 Butyl extruder machine is a special equipment for the
production of making double glazing glass. As one of the important
equipment of producing insulating glass, the effect of butyl glue
is directly related to the sealing of insulating glass. The
equipment is automatic one, easy to operate and convenient to use.
Butyl gule extruder machine is used for spreading aluminum spacer
frames evenly with hot melt butyl. The operation of the butyl
extruder is more easier than before,it uses large electrical
control panel . The conveyor of aluminum is controlled by frequency
converter. The speed can be adjusted from 0m/min to 47m/min.
Tech parameters of high speed butyl extruder machine
| Squeeze pressure | 10-25MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 5.5-26.5mm |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight7 | 50kg |
Equipment details of automatic butyl coating machine
1.Germany Siemens parts
Adopt Siemens brand, stable performance.
3.Fast coating speed,can up to 47m/min
4.Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
5.KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated
programming.
6.Alarm system
Automatically alarm system, reminding adding butyl.
7.Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic
cylinder, control the pressure of outlet oil strongly.
8.Glue cylinder Adopt the upright structure, easy to change butyl.

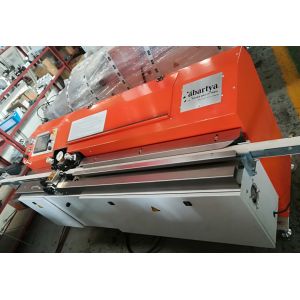

Detail picture
Optional functions of butyl coating machine:
200L glue cylinder is optional
Related Product
Automatic spacer bending machine LJZW2020
Automatic spacer bending machine is a special equipment for making
aluminum frames of insulating glass, which replaces the traditional
fabrication technology. This equipment can make a variety of convex
polygonal aluminum frames by one aluminum strip in one time, thus
strengthening the strength of the aluminum frame, making the
sealing effect of the insulating glass more better.
Equipment details
- Adopt Siemens PLC control system
- There are 4 Siemens servo
- Adopt 12 sets of racks which could storage more different sizes of
spacers. Use Siemens servo to change different racks.
- Automatically cut and feed aluminum spacers
- Bend shaped spacer frames continuously
- Automatically avoid the connecting corner while bending and cutting
- The machine grabs the spacer from the top instead of grabbing the
spacer from bottom, solving the old-fashioned reversing problem.
- Using industrial computer technology which could realize the
on-site drawing by workers on the industrial computer and directly
bending the drawn graphics.
- The special machine hand device is used to bend big spacer frame
Technical data
Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
Min.bending size | 250mm*200mm |
Aluminum spacer width | 5.5-27mm |
Dimensional error | ±0.5mm |
Angle error | ±1º |
Processing speed | ≤26s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
