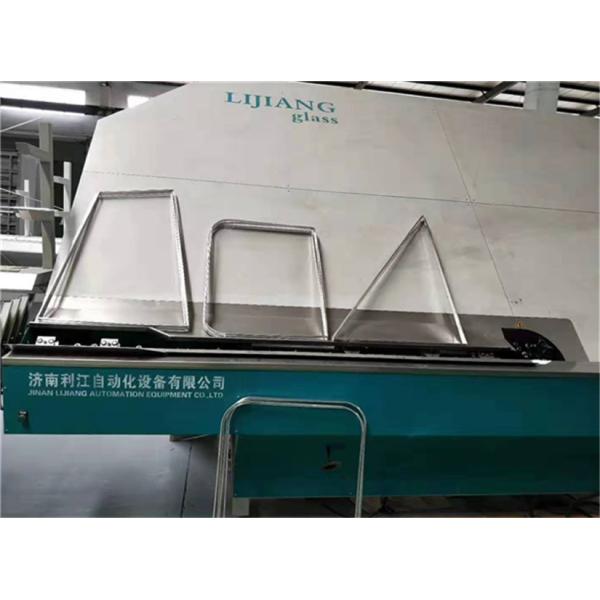

Double Glazing Glass Automatic Aluminum Spacers Bending Machine
When coated with Low-E film, an insulating gully protects against
radiation. The butt is made of two or more float glasses with an
aluminum frame filled with an argon gas desiccant. Primary seal
(butyl), secondary seal (polysulfide or structure) between double
glazing and aluminum frame. Double glazing is effective
Features of Automatic Spacer Bending Machine
• 4 or 12 groups of spacer racks
• High working speed Siemens 1200 PLC control system
• Automatically avoid pins during bending and cutting
• Bend the spacer frame continuously
• Automatically cut and feed aluminum spacers
• Aluminum spacers are available in sizes 6A-27A
• Different bending tools for different spacer sizes
• Suspend and reset devices to handle device failures
• Bent aluminum spacer, smooth stainless steel, warm spacer
• USB input function, read Excel format files directly
Detail of Aluminum spacer bending machine
1.German siemens plc control system,touch screen interface.

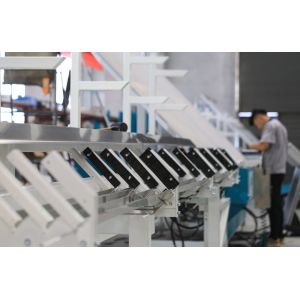

2.Four or Twelve different spacer size storage units can choose
3.Heavy duty connectors ,convenience and safety for installation
and debugging
4. Aluminum spacers are available in different specifications and
sizes
5.Support continuous bending , it automatically avoid spacer
-connection while bending and cutting
6.The special machine hand device is used to bend big spacer frame
7.Automatic spacer bending machine can bend aluminum spacer
/technoform /Alupro /swisspacer/ stainless steel /thermix
(optional)
8.USB input function ,it can read the excel data directly
9.Spare parts of all machine have ID code ,convenient for
after-sale service
After-sales service of Lijiang glass for automatic aluminum spacer
bending machine
I. Warranty: 1 year
Damage to worn parts or equipment due to customer reasons is not
covered by the free warranty.
Ⅱ. Lijiang has its own system for after-sales service consisting of
three parts.
1. When the LIJIANG equipment arrives at your factory, LIJIANG can
send an engineer to your factory for free installation,
accommodation, and personnel training. However, you will have to
pay for the engineer's round-trip ticket and accommodation.
2. If there is a problem with Lijiang's equipment beyond the
warranty period, Lijiang will first provide online and timely
technical support. However, if you wish to be an engineer in
Lijiang, you will be required to pay the engineer's round-trip
ticket and accommodation, and pay $ 150 per day to Lijiang as a
service commission.
3. During the warranty period, if there is a problem with Lijiang's
equipment, Lijiang will first provide online and timely technical
support. However, if the engineer needs to go to your factory
repair machine, you will have to pay for the round-trip ticket and
accommodation. If the spare is damaged due to Lijiang, Lijiang will
prepare it in advance (excluding worn parts).
Note: Before the Lijiang engineer goes to your factory, you must
submit your ticket and hotel details in advance. Lijiang will
arrange the engineer's itinerary and maintenance items as soon as
possible.
Optional functions
• Connect to ERP system
• Drill holes
• Printing code
• Printing label sticker

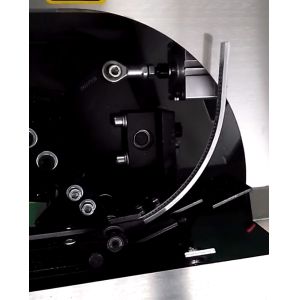

• Bending shape frame. Using the circle wheel device to bend circle
frame or frame with circle corners. Min R60, Max R150, spacer
sizes: 6A – 16A). Different sizes of aluminum bars require
different size tools
Technical Data of spacer bending machine
Max. bending size
| 2000mm*2000mm |
Min. bending size
| 250mm*180mm |
Aluminum spacer width
| 6A - 27A |
| Spacers racks | 4 Racks |
Spacer size error
| ±0.5mm |
Angle error
| ±1° |
Processing speed
| < 25s (1000mm*1000mm) |
Air supply
| ≥0.65MPa |
| Voltage | 380V50Hz 3P |
| Total power | 2.5KW |
| Dimension 尺寸 | 10500mm*2200mm*2600mm |
