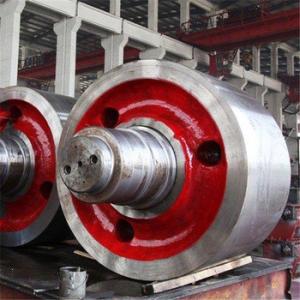

45 Steel ZG20SiMn Casting Support Riding Wheel Roller Shaft Forging Trunnion Roller

Rotary Kiln Cement Plant 45 Steel Casting Support Riding Wheel Roller Shaft Forging Trunnion Roller

Product Description

Rotary Kiln Support Roller

Product name	Support roller
Material	Carbon steel,low alloy steel: ZG20SiMn,ZG50Mn,ZG35SiMn,ZG35CrMo,ZG35SiMnMo, ZG42CrMo,ZG40Cr,ZG34CrNiMo,ZG40Mn and so on
Standard&certificate	ASTM,BS,NF,DIN,JIS,ISO 9001:2000;BV,CCS,DNV,NK,RINA,KR and so on
Weight	3 to 200 tons per piece
Apply to	Rotary kiln
OEM service offered	According to customer’s drawings

Kiln Support Rollers are backed by latest technology and provide desired support to cables and other related products. These support rollers are driven to rotate using friction between roller surface and web. The small friction torque of the roller bearings also allow higher speed operations and helps in avoiding possibilities of slippage due to presence of large air film between roller surface and web.

The rotary kiln Support roller is mainly used in rotary kiln / dryer / cooler and rotation device, usually there are two sets or three sets support roller in one rotary kiln, there will be a set support roller with thrust roller when three sets support roller
be used.

The support roller bear all weight of device, so it made by quality cast steel, and rolling through a axis in the center of support roller.

Features :

• High-precision dimensional tolerance; Excellent mechanical properties; Produce different dimension based on customer’s requirements; Advanced manufacture equipments and inspection devices; Excellent technical personality; Control the production procedure strictly; Pay attention on the package protection.

Rotary Kiln supporting roller:Cemen Rotary Kiln supporting roller and Lime Rotary Kiln supporting roller

We bring forth to our customers Kiln Support Roller for a Rotary Kiln that are designed by our experienced processionals, who hold vast knowledge in this domain. Our professionals uses refractory material that are lined to protect the steel shell and reduce radiation losses.

Rotary Kiln Supporting Roller Assembly

We are manufacturer and reputed suppliers for the Kiln Support Rollers Assembly for various plants as mentioned below:

• Sponge iron plants
• 50tpd, 100tpd, 200tpd, 300tpd, 350tpd, 500tpd plants for various design consultants in markets, like:
• od1700mm x id550 x 880mm
• od1800mm x id500 x 1000mm
• od1000mm x id320/300 x 560/550mm
• od400mm x id160 x 240mm or any customized design.
• Cements plants for any capacities
• Alumina plants
• Phoshphate mines
• Kaolin & bentonite plants
• Weight: from 3 tons to 200 tons per piece

The supporting roller is the necessary part of the rotary kiln.
Our casting steel piece is mostly lighter than 200 tons. After the ultrasonic flaw detection, our product reaches the second level of the GB standard.

Material:Carbon steel,low alloy steel:ZG20SiMn,ZG50Mn,ZG35SiMn,ZG35CrMo,ZG35SiMnMo,

ZG42CrMo,ZG40Cr,ZG34CrNiMo,ZG40Mn and so on.

Process:Place a pattern in sand to create a mold;

Incorporate a gating system;

Remove the pattern;Fill the mold cavity with molten metal;

Allow the metal to cool;

Break away the sand mold and remove the casting.

Heat treatment.

Chemical composition test,UT/MT test,mechanical property test and so on.

Surface treatment and other requirement from customer.

Standard&certificate:ASTM,BS,NF,DIN,JIS and so on;

ISO 9001:2000;BV,CCS,DNV,NK,RINA,KR and so on.

Weight:from 3 tons to 200 tons per piece

Application:

The Rotary Kiln Support Roller is mainly used in rotary kiln / dryer / cooler and rotation device, usually there are two sets or three sets support roller in one rotary kiln, there will be a set support roller with thrust roller when three sets support roller be used.

We can provide OEM service for cement mill and rotary kiln casting parts,marine steel casting parts,sugar mill machinery parts with carbon steel or low alloy steel.

The casting parts can be supplied as following treatment:

Heat Treatment: Normalized, normalized and tempered,quench and tempered

Machining: Rough machined,semi-finished machined,finished machined

Quality warranty and testing equipment:

Magnetic powder inspection

UT nondestructive test

Dye inspection

Leeb hardness testing equipment

Mechanical property test equipment

Metallographic microscope

Direct-reading spectrometer

Features of our products:

Durable

Excellent tensile strength

Accurate level of tolerance

Good dimensional accuracy

Superb surface finishing

Easy to use and install

Possible defects:

Defect	Causes
Unfilled sections	Insufficient material Low pouring temperature
Porosity	Melt temperature is too high Non-uniform cooling rate Sand has low permeability
Hot tearing	Non-uniform cooling rate
Surface projections	Erosion of sand mold interior A crack in the sand mold Mold halves shift

There are no these problems for us.

Uniform wall thickness will ensure uniform cooling and reduce defects.

A thick section, often referred to as a hot spot, causes uneven cooling and can result in shrinkage, porosity, or cracking.

Corners

Round corners to reduce stress concentrations and fracture

Inner radius should be at least the thickness of the walls

Machining allowance
Add 0.0625 - 0.25 in. (0.16 - 0.64 mm) to part dimensions to allow for machining to obtain a smooth surface.

Advantages of Heat Treatment for the Trunnion Roller

1. Professional, Specific Electrical Furnace, single-minded

2. Vertical Pit Furnace, keep the temperature uniformity during heating, +/-1℃

3. Small deformation, little oxide layer, reduce the material cost

4. Difference materials can be cold at the best speed.

5. Large capacity, completed variety of quenching medium: oil, water, salt water, water based mixture.

Luoyang Zhongtai Industries Co., Ltd. The company was founded in 1981 and finished joint stock reform in 2005. There are eight subsidiaries and it's an independent legal entity with the qualifications of operating import & export trade.

With a garden-like industrial park and modern standard plant covering 80,000 square meters, ZTIC possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services as a whole. The products comprise all the equipments used in mining, cement, metallurgy, construction as well as the related accessories with high power reducer and large-sized castings & forgings, etc.

ZTIC has acquired ISO 9001:2008 Certification of conformity of Management System Certification, Mine Product Safety Authentication, Recognition for BV Mode Ⅱ Survey Scheme in France, Mining Electrical Equipment KY Certification, etc.
The company has also acquired "Fully Quality Management Achievement Award", "Top 50 Enterprises", "Henan Outstanding Innovative Enterprise” and “The Most Powerful Enterprises of Henan" in 2010.

Quality product performance and good reputation, our products have been exported to mnay countries and regions in the world, including: Russia, Serbia, Australia, Mongolia, Indonesia, Bangladesh and other countries, the products are subject to a great welcome and praise.
