Closed System High Safety 3000 Mesh Ultra Fine Powder Mill Reliability

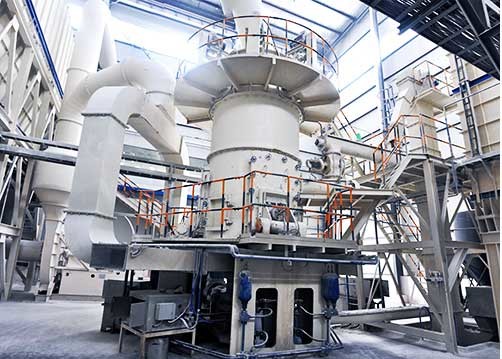

Closed system High safety and reliability Ultra-fine powder mill

Ultra-fine powder mill is suitable for the super fine grinding of all kinds of crisp materials whose Moh's hardness is blow 7, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, alay, talc, fluorite, white mud, mica, refractory material, glass, total about 100 kinds of materials.

Working Principle

When the grinding mill is at work, the main bearing and each dial are driven by electromotor through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers. The high-pressure air blower constantly inhales air, airflow with crushed materials are brought to classifier whose high-speed impeller will screen the airflow: The unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; A small proportion of the fine powders, with airflow, moves to the dust cleaner. The materials from the above two lots are sent by the conveyor to get finished powders packed. In addition, filtered clean air will be emitted from muffler in the end.

Advantages of Ultra-fine powder mill

Technology Data of Ultra-fine powder mill

Luoyang Zhongtai Industries Co., Ltd. The company was founded in 1981 and finished joint stock reform in 2005. There are eight subsidiaries and it's an independent legal entity with the qualifications of operating import & export trade.

With a garden-like industrial park and modern standard plant covering 80,000 square meters, ZTIC possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services as a whole. The products comprise all the equipments used in mining, cement, metallurgy, construction as well as the related accessories with high power reducer and large-sized castings & forgings, etc.

ZTIC has acquired ISO 9001:2008 Certification of conformity of Management System Certification, Mine Product Safety Authentication, Recognition for BV Mode Ⅱ Survey Scheme in France, Mining Electrical Equipment KY Certification, etc.
The company has also acquired "Fully Quality Management Achievement Award", "Top 50 Enterprises", "Henan Outstanding Innovative Enterprise” and “The Most Powerful Enterprises of Henan" in 2010.

Quality product performance and good reputation, our products have been exported to mnay countries and regions in the world, including: Russia, Serbia, Australia, Mongolia, Indonesia, Bangladesh and other countries, the products are subject to a great welcome and praise.
