    GYTS Armored Fiber Optic Cable

    Ask Lasest Price
    Brand Name : WRC
    Model Number : Crush Resistance 2-144 Cores GYTS Optic Fiber Light-armored Cable
    Certification : ISO9001
    Price : USD0.55-USD14/Km
    Payment Terms : Western Union, MoneyGram, Western Union
    Supply Ability : 500Km per day
    Delivery Time : 5-25days
    • Product Details
    • Company Profile

    GYTS Armored Fiber Optic Cable

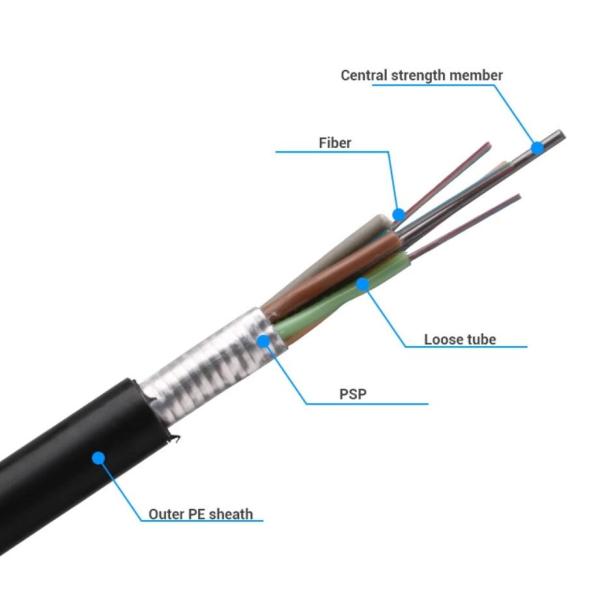

    Description: Crush Resistance 2-144 Cores GYTS Optic Fiber Light-armored Cable

    1.The fibers is 250µm, are positioned in a loose tube made of a high modulus plastic . The tubes are filled with a water-resistant filling compound.

    2.A steel wire, sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
    3.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
    4.An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress.
    5.Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
    Technical properties
    Item Name
    GYTS Fiber Optic Cable
    Place of Origin
    Wuhan,China
    Model Number
    GYTS
    Brand Name
    WRC
    Fiber Type
    Single mode ITU-T G652D
    Fiber No.
    2-288 cores
    Strength Member
    Central Steel Wire/Metal
    Material of Jacket
    Black Polyethylene (PE)
    Cable Structure
    Stranded Loose Tube
    Certificate
    ISO9001/CE/RoHS/CE
    Storing Temperature
    -40℃ to +70℃
    Application
    Duct/Aerial

    Drawings Crush Resistance 2-144 Cores GYTS Optic Fiber Light-armored Cable
