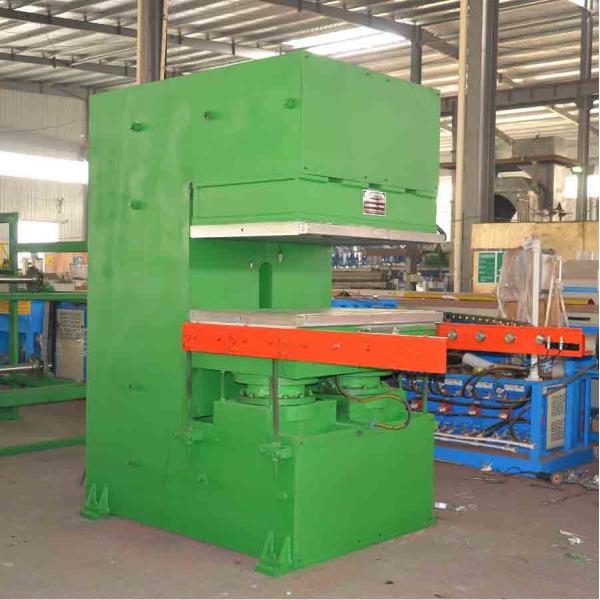

C Type Vulcanizing Press / Strip Type Tread Making Machine / Rubber
Vulcanizing Press
Product Application:
Rubber tread vulcanizing press machine is used to produce strip
tread for renovation of all kinds of tires. It is suitable for cold renovation procedure of tires. Our company
can supply three types of the machine :C structure, frame
structure, H Structure. We can design and manufacture other models
according to the customer’s requirements. Please contact us if you
are interested our products.
Feature:
1. Automatic ascending,bumping,pressurization and descending
operations.
2. High speed ascending, pressure retaining for better product
quality.
3. Fast release valve for fast descending but incorporates
adjustable speed.
4. Depressurization can be adjusted to suit thickness of products.
5. Special designed platens for even heating area.
6. The above features can be incorporated in automatic and
semi-automatic machines.
Model | XLB-Q11000×500×5 /27.50MN | XLB-D11000×500×5 /30.0MN |
Total pressure(T) | 2750 | 3000 |
Heating platen size (mm) | 11000×500 ×70 |
11000×500 ×70
|
Unit pressure on platen(Mpa) | 5.0 | 6.0 |
Daylight (mm) | 140 | 140 |
Daylight No. | 5 | 5 |
Piston stroke(mm) | 450 | 450 |
Mold closing speed (mm/s) | ≥15 | ≥15 |
Mold opening speed (mm/s) | ≥15 | ≥15 |
Hydraulic system pressure (Mpa) | 20 | 19.5 |
Piston dia. (mm) | Φ380 | Φ380 |
Piston quantity | 12 | 15 |
Total motor power (kw) | 11x4+11x2 | 11x5+15x2 |
Total weight(kg) | 120000 | 130000 |
In order to offer the exact machine to the customers, we usually
need the following details:
1. The clamping force
2. The daylight
3. The daylight quantity
4. The piston stroke
5. Your detailed requests are appreciated.
QINGDAO SHUN CHEONG RUBBER MACHINERY MANUFACTURING CO., LTD is located in the west coast of Qingdao, is one of the most
famous rubber machinery manufacturers. We have been specializing in
rubber machinery for almost 20 years.
Our company has passed ISO9001:2008 certification, CE
certification, SGS certification, france BV certification.
Our main product of our company: Internal mixer, Two roll Mixing
mill ,extruding equipments, calendar equipments, Cutting machine,
cooling equipment, Vulcanizing equipment, and Reclaimed rubber
production line, rubber sheet extrusion line, Motorcycle & bicycle
Tube &Tires production line, Conveyor Belt production line, v
belt production line, rubber recap equipment and so on. Besides, we
also can base on clients' requirement to manufacture and design
non-standard rubber machinery.
With the rapid development of our company, Qingdao Sea King
industrial Limited was founded. The company has established good
commercial relationship with many companies in China by joint
venture holding. Products include Rubber Machine ,Raw Rubber
Material Rubber Products and so on.
Our company has import-export rights. The products have been
exported to many countries and districts around the world, such as
America, France, Canada, Dubai, Australia, Peru, Brazil, Ecuador ,
South American, Southeast Asia, and the Middle East. By the
advanced quality and service, our products have gained the praise
of domestic and foreign customers.
We strictly follow the policy" to satisfy our clients' need with
quality work ,advanced technology, optimized design solution and
excellent service".
