Infrared dryer for PET Sheet making machine,PET Sheet,PET Plastic
sheet production making machine extrusion line
If you use Twin-screw or Multi screw extruder with vacuum degassing
system, why still need to use Infrared crystal dryer to work
together?
- Continuous material feeding into Sheet extruder
- Increased output: up to 50% higher
- Increased bulk density of material: normally 20-50% depends on
material type
- Reducing the complexity of vacuum system
- Increased stability of the operation of extruding line and product
quality
- Lower requirement for raw material used
- Low down the operation cost up to 20% compared to the systems
without IRD (Infrared crystal dryer )

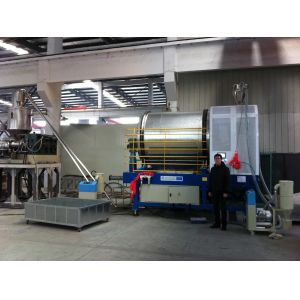

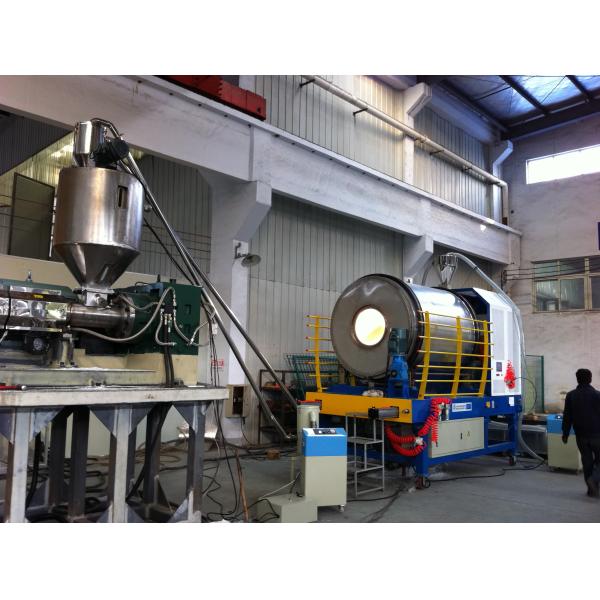

Our processing
Normally the PET Bottle flakes or sheet scrap with initial moisture
level of up to 10000-13000ppm. The PET Bottle flakes or sheet scrap
(Virgin or mixed ) will be recrystallized in a continuous IRD in
10-15mins, the drying temperature will be 150-180℃ and dried to
1000ppm,then fed to Double screw extruding system for further
processing
l Limiting the hydrolytic degradation of the viscosity.
l Prevent increasing AA levels for materials with food contact
l Increasing the capacity of the production line up to 50%
1. Material Filling
By vacuum dosing feeder to convey the raw material continuously to
the rotating drum
2. Drying and Crystallization
Thermal treatment and mixing. There are the spirals welded into the
rotary drum to ensure the well mixture of material and continuous
transfer to the outlet. And the material will also be dried
continuously
3. Discharging
The dried and crystallized material will be discharged after
minutes drying by drum rotary. Finally the dried and crystallized
material will be conveyed to the next processing.
l Improvement and make the product quality stable-- Equal and
repeatable input moisture content of the material
Advantage of IRD Processing
| 1 | Rotary drum design | To dry the material evenly |
| The spiral coils design of the drum ensure the good mixture of the
raw material to avoid material clumping |
| 2 | Retention time | Depends on the speed of Rotary drum |
| The speed can be adjustable by the property of drying material |
| 3 | PLC Controlling system | The material retention time,drum rotating speed |
| The Infrared lamps performance, drying temperature |
| The feeding speed of Vacuum feeder |
| 4 | Reproducibility | Recipes and process parameters can be stored in the controlling
system to ensure opimal and reproducible results |
| 5 | In one step | Drying and crystallization in one step |
| 6 | High efficiency | Minutes drying and crystallization instead of hours( Compared to
conventional dehumidifier and crystallizer) |
| 7 | Fast cleaning | Allow for easy and fast cleaning. Rapid product change-over |
HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped
with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by
inspecting personnel.
● Each assembly is in charged by a master who has working
experience for more than 20 years
●After all the equipment are completed, we will connect all the
machines and run the full production line to ensure the stable
running in customers' factory
Our Service
1.We will provide testing if the customer comes to visit factory to
see the machine.
2.We will provide detail machine technical specification ,electric
diagram,installation,operation manual and all the documents which
customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training
the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty
time,we we will provide spare parts free,and over warranty time,we
will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole
lifetime .
