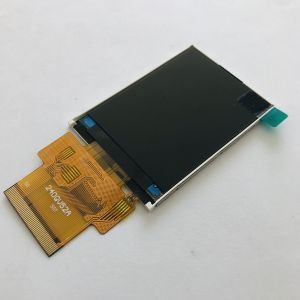

2.4 Inch 240*320 IC ILI9341V IPS LCD Panel SPI Interface Sunlight
Readable
2.4 inch tft LCD 240*320 SPI interface IC NT7789V ILI9341V Sunlight
Readable
1. LCD name: 2.4 inch 240*320, ST7789V, MCU&RGB interface, high
brightness LCD panel
2. Part No.: CH240QV52A
3. Size.: 2.4 inch
4. With touch panel or not: NO,But we can add touch
5. Display type: IPS
6. Resolution (pixels): 240*3(RGB)*320
7. Pixel pitch: 0.153(W)*0.153(H)mm
8. Viewing direction: All
9. Controller IC: ST7789V
10. Display mode: Transmissive/ Normally White
11. Module size: 42.72(W)*60.26(H)*2.3(T)mm 12 TFT Active area: 36.72(W)*48.96(H)mm
13. Luminance: 300cd/m2
14. Contrast: 1000
15 Interface type: SPI/MCU/RGB
16. Pin NO.: 50pins
17. Pin pitch: 0.5mm
18. Connecting type: plugging type
19. Input voltage: 3.3V
20. Backlight type and color: LED backlight/white
21. Backlight: 4 LED in paralleling
If=80mA, Vf =3.2V
22. LED Life span: 50000h |
Why Chenghao?
1. We are a professional designer manufacturer of LCD module and
capacitive touch module.
2. We have all products through aging, high and low temperature
test, to ensure the stability of products.
3. We are good at ODM and OEM, product specification,LOGO and
packaging can be customized.
4. We are good at the development of display module in the
industrial field and provide the total solution of capacitive
screen.
5. We have 3 production lines, with shipment of more than 1,000,000
pieces per year.
6. Our products can support long-term supply,Maximum supply cycle
is 6 years.
7. We combine touch screen technology with LCD display module,
which greatly saves your cost. Perfect after-sales service will be
one of the reasons why you choose us.
drawing:
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or
DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
Our services:
1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of
our products are up to the international quality standards
High Product Quality: Our well equipment and strict function
testing in the productive process guarantee the excellent quality
of each product.
Professional Manufacturer: household appliances, industrial
control, medical equipment, POS machine, instruments and meters,
GPS navigation, financial equipment, consumer equipment,
information appliances.
2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order
the sample before your order.
3. May I have your catalogue and price list for trial order in MOQ
quantity?
All our products are displayed on Google platform. Please take a
closer look and choose the model you are interested in on our
website.
4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number,
quantity for each item, quality request, Logo, payment terms,
transport method, discharge place etc. We will make the accurate
quotation to you as soon as possible.
5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.
6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic
usually ships items in 1 to 3 working days for samples and within 7
to 15 days for customized order once receiving the confirmation of
a new order. The order will not be confirmed until the payment
reaches ChengHao Optoelectronic bank account. If we are temporarily
out of stock, we will do our best to inform you of the estimated
lead time.
7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited
warranty against manufacturing defects (material or workmanship).
Missing/lost or worn out parts are not covered under our warranty.
