    Fiber Isolator YIG Film GSGG Wafer Single Crystal Substrates

    Fiber Isolator Used YIG Film GSGG Wafer


    Gadolinium gallium garnet(GGG) is a special substrate magneto optical flims.substituted iron garnet epitaxial films, which is good material for YIG,and BIG flim.

    Substituted Gadolinium Gallium Garnet (SGGG) is used as substrates for liquid epitaxy. The lattice parameter of our crystals is well controlled and the surface polish finishing is of the highest quality, allowing a perfect epitaxy.
    Crystal properties

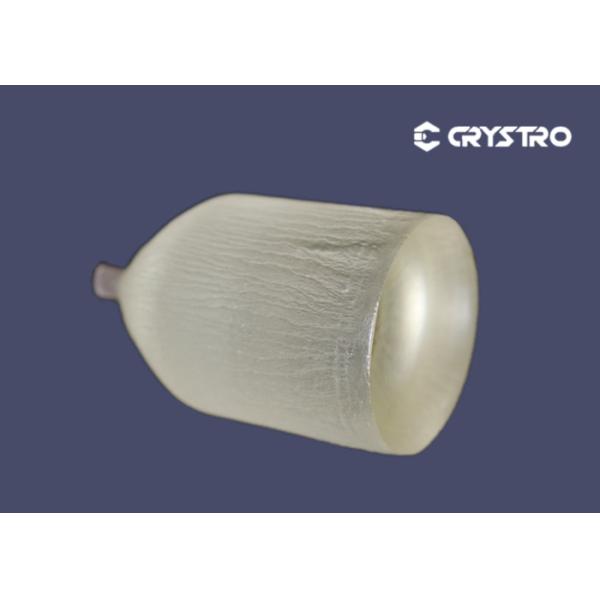

    Crystal growth methodCzochralski
    Crystal growth orientation(100), (111)
    Maximum size3 inch diameter
    VariationsDopands on request
    Crystallographic properties
    Crystallographic structureCubic
    a = 12.383 Å
    a = 12.505 Å SGGG
    MineralogicalGarnet
    Twinning structurePerfect
    ColourColourless / Brownish SGGG
    Physical properties
    Density7.09 g/cm3
    Melting point1730 °C
    Hardness7.5 (Mohs)
    Dielectric constant30
    Dielectric loss tangent (10 GHz)ca. 3.0 * 10_4
    Optical properties
    Transmission range0.3 to 7.0 mm
    Refraction index:nd = 1.9708 at 577 nm


    CRYSTRO supply GGG crystal with:


    Orientation<111> <100> within ±15 arc min
    Wave Front Distortion<1/4 wave@632
    Diameter Tolerance±0.05mm
    Length Tolerance±0.2mm
    Chamfer0.10mm@45º
    Flatness<1/10 wave at 633nm
    Parallelism< 30 arc Seconds
    Perpendicularity< 15 arc min
    Surface Quality10/5 Scratch/Dig
    Clear Apereture>90%
    Large Dimensions of Crystals2.8-76 mm in diameter

    Application:


    SGGG is used as substrates for liquid epitaxy.It's dedicated substrates for magneto-optical film.
    Our Advantages:
    Direct Factory
    Full set of machines from cutting to coating to inspection
    Professional R&D team with more tha 20 years experiences
    SGS certificated company
    Strict quality control and after sales system
    Enough capacity and Flexible production for customers' requirments

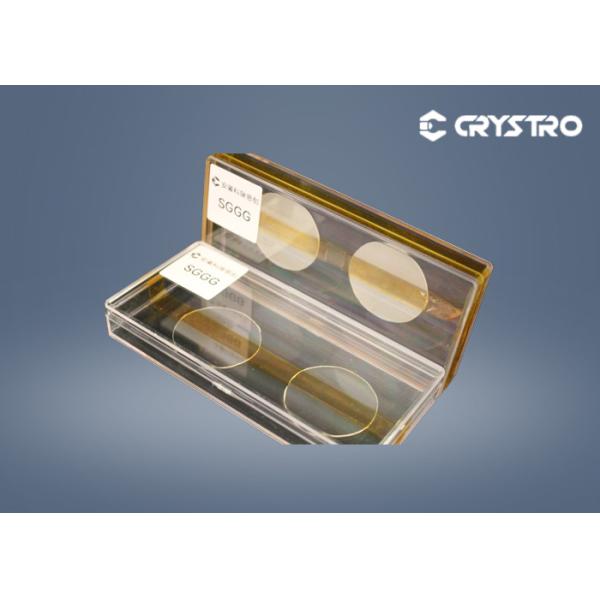

    Quality Fiber Isolator YIG Film GSGG Wafer Single Crystal Substrates for sale
