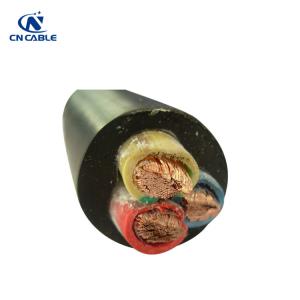

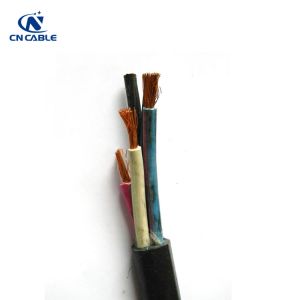

    Black EPR Rubber Insulated CSP Sheathed Electric Cable

    Ask Lasest Price
    Brand Name : CN CABLE
    Model Number : H05BN4-F
    Certification : CE
    Price :
    Payment Terms : L/C, T/T
    Delivery Time : 1-4 weeks
    • Product Details
    • Company Profile

    Black EPR Rubber Insulated CSP Sheathed Electric Cable

    Multi Cores EPR Rubber Insulated CSP Sheathed H05BN4-F Electric Cables

    Product Description

    Application

    These EPR (ethylen-propylen rubber) insulated and CSP (chlorosulphonated polyethylene rubber or similar) sheathed electric cables can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under weak mechanical stress, for example for power supply to small appliances in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc. The electric cables are also suitable for caravans and camping equipment... The electric cables maximum conductor temperature in normal use: 90°C. While high temperature use, skin contact must be avoided.


    Standard

    <HAR> CENELEC HD 22.12 S1
    CEI 20-19/12
    CEI 20-35 (EN 60332-1)
    BS6500
    BS7919
    VDE 0282 Part-12

    IEC 60245-4


    Cable Construction

    GSP outer jacket
    Green/Yellow wire
    Bare copper conductor
    EPR insulation


    Fine bare copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5
    EPR(Ethylene Propylene Rubber) rubber EI7 insulation
    Color code VDE-0293-308
    CSP(Chlorosulphonated Polyethylene) outer jacket EM7


    Technical Characteristics
    Working voltage: 300/500 volts
    Test voltage: 2000 volts
    Flexing bending radius: 6.0 x O
    Fixed bending radius: 4.0 x O
    Temperature Range: -20 oC to +90 oC
    Maximum Short Circuit Temperature: +250 oC
    Flame retardant:IEC 60332.1
    Insulation resistance: 20 MΩ x km


    Technical parameter

    AWGNo. of Cores x Nominal Cross Sectional AreaNominal Thickness of InsulationNominal Thickness of SheathNominal Overall DiameterNominal Copper WeightNominal Weight
    # x mm^2mmmmmmkg/kmkg/km
    18(24/32)2 x 0.750.60.86.12954
    18(24/32)3 x 0.750.60.96.74368
    18(24/32)4 x 0.750.60.97.35882
    18(24/32)5 x 0.750.61.08.172108
    17(32/32)2 x 10.60.96.61965
    17(32/32)3 x 10.60.97.02978
    17(32/32)4 x 10.60.97.63895
    17(32/32)5 x 10.61.08.551125

    FAQ



    Q1: Are you a manufacturer or a trade company?
    A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
    Q2: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
    A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.


    Q3: What’s your MOQ?/ How long is your delivery time?
    A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!

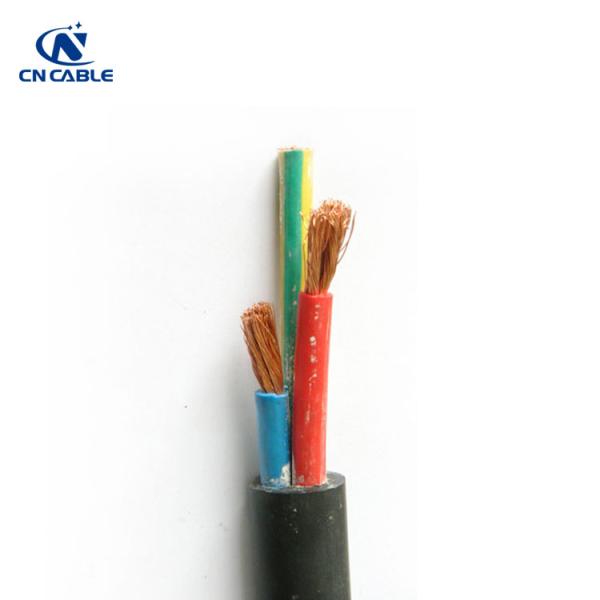

    Quality Black EPR Rubber Insulated CSP Sheathed Electric Cable for sale
