Green Color 100 Micron High Density Polyethylene Film
Description:
It is multi-layers laminated film with high strength property, made
via three layers
co-extrusion film blown process and special stretching technology.
The inner crossed
structure differs from traditional films with one layer or many
layers, possesses both
thermal stability and dimensional stability, good bidirectional
tear resistance & high
tensile strength, as well as high elongation at bi-direction.
Phameter:
| Products Name | HDPE film | Spec. | 0.1mm*920mm |
| Detection Methed | Q/TPXP 1-2013 | Date | 2020.7.2 |
| NO. | Item | Factory Requirement | Detection Value | Detection |
| 1 | Appearance | No bubbles, no stains, no damage, no impurities | Qualified | Qualified |
| 2 | Spec. | Width | 920±10mm | 922 | Qualified |
| | Thickness | 0.1±0.005mm | 0.102 | Qualified |
| 3 | Max.F (N/50mm) | TD (CD) | ≥150 | 204 | Qualified |
| | MD | ≥150 | 212 | Qualified |
| 4 | Elongation (%) | TD (CD) | ≥200 | 1155 | Qualified |
| | MD | ≥200 | 968 | Qualified |
| 5 | Tensile Strength | TD (CD) | ≥18 | 21 | Qualified |
| | MD | ≥22 | 25 | Qualified |

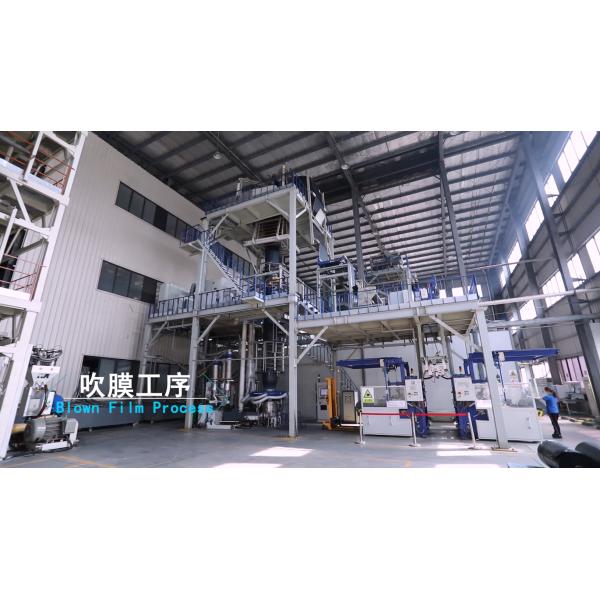

The Production Process:
FILM BLOWING
Application:

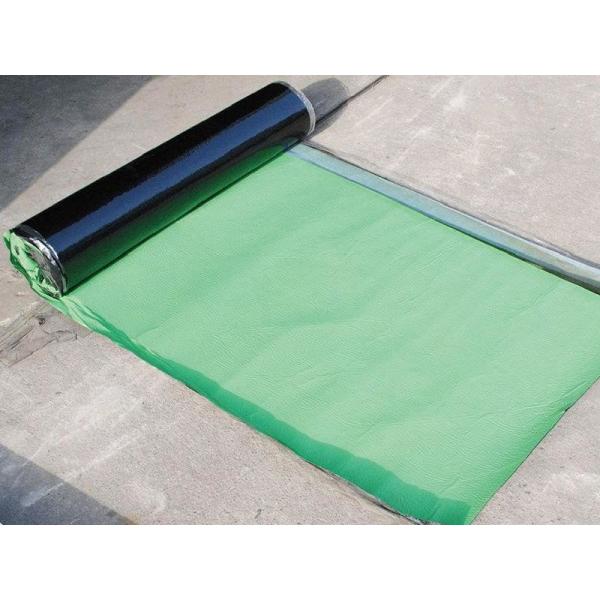

It is widely used as the surface material for waterproofing
membranes.
About US:
Upass, founded in 2008, now as a governing unit of China Building
Waterproof Association,
a vice chairman unit of Professional Committee of China Modified
Plastic Association,
an enterprise with Triple A credibility in China Plastic
Association, not only assists the
development of the relevant industries, but also upholds the
conception of sustainable
development by successive technological innovation. Upass so far
has acquired over
100 of intellectual property rights.
