About the metal scrap baling machine

In real life, there are various kinds of scrap metals with different sizes, which is a big problem in storage, transportation and smelting in steel mills. Moreover, the long-term retention of scrap metals will cause slight air pollution, and long-term storage will occupy space and cause harm to the body. There are many ways to deal with scrap metal, because scrap metal is a living resource. Recycling can produce new steel, which can be put into the market again and recycled. In this way, a lot of resources can be saved, and the mining of the earth's mining resources will also be protected.

Metal scrap baling machine can extrude various kinds of relatively large scrap metal, scrap steel, scrap iron, scrap copper, scrap aluminum, disintegrate car shell, waste oil drum into cuboid, cylinder, octagonal shape and other qualified furnace charge. In order to facilitate storage, transportation and recycling. After being put into the furnace, the pressing loss is lower. The whole production process does not need heating, additives or other processes, direct cold pressing molding, forming at the same time also ensure the original material unchanged. For example, cast iron scrap is used instead of cast pig iron after forming. For castings of special material, recycling is more significant.

Application of metal scrap baling machine

Materials: iron / steel: scrap iron, light and thin materials, scrap, car shell, scrap, waste oil bucket, bicycle frame, lathe chips, shavings, iron chips, steel chips, color steel tiles, stainless steel.

Scrap aluminum: aluminum chips, aluminum shavings, aluminum profiles, doors and windows, cans, aluminum foil, aluminum alloy.

Scrap copper: copper wire, copper plate, copper scrap, copper shavings, copper wire

Advantages and characteristics of metal scrap baling machine

1. It adopts the structure of rotating cover. The opening area of material box is large, especially suitable for large, empty and lightweight materials.

2. All moving parts are driven by hydraulic pressure. The work is smooth. Double main pressure mode, bale is uniform & compact, high baling efficiency.

3. Manual operation is simple, convenient, safe and reliable.

Technical specifications of metal scrap baling machine
Sr. No. Type name Model or Data
Main cylinder Cover cylinder Cylinder of Bale-out
1 Nominal pressure 1350KN 500KN 300KN
2 Inner diameter of cylinder φ255mm φ160mm 2*φ110mm
3 Piston diameter φ180mm φ105mm φ70mm
4 Stroke 1700mm 1360mm 260mm
5 System Max.pressure 25Mpa 25Mpa 15Mpa
6 Bale density ≥2.0 t/m3 (Lightweight material)
7 Motor Power 22KW
8 Oil Pump 80YCY14-1B
9 Single cycle time 90 seconds (no-load)
10 Material box size 1400*600*600mm
11 Bale size 250*(250-500)*600mm
12 Bale weight 80-120kg
12 Bale-out Forward out
13 Operation mode Manual
14 Productivity 1-2 ton / hour (scrap iron)
15 Machine size 4150*1900*1900mm
16 Other

1. There are blades on both sides of door cover and material box

2. The whole machine is free of installation

" }
Sign In | Join Free | My burrillandco.com
Home > Metal Scrap >

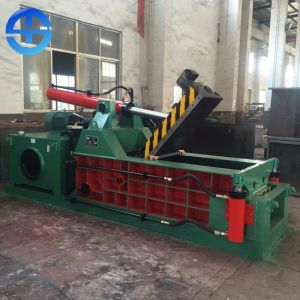

250*600mm Bale Size Forward Out Metal Scrap Baling Machine

    Buy cheap 250*600mm Bale Size Forward Out Metal Scrap Baling Machine from wholesalers

    Buy cheap 250*600mm Bale Size Forward Out Metal Scrap Baling Machine from wholesalers
    • Buy cheap 250*600mm Bale Size Forward Out Metal Scrap Baling Machine from wholesalers
    • Buy cheap 250*600mm Bale Size Forward Out Metal Scrap Baling Machine from wholesalers

    250*600mm Bale Size Forward Out Metal Scrap Baling Machine

    Ask Lasest Price
    Brand Name : TMS
    Model Number : F1350
    Certification : CE, ISO
    Price : USD16760-17460 per set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15 sets per month
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    250*600mm Bale Size Forward Out Metal Scrap Baling Machine

    250*600mm Bale Size Forward Out Metal Scrap Baling Machine

    About the metal scrap baling machine

    In real life, there are various kinds of scrap metals with different sizes, which is a big problem in storage, transportation and smelting in steel mills. Moreover, the long-term retention of scrap metals will cause slight air pollution, and long-term storage will occupy space and cause harm to the body. There are many ways to deal with scrap metal, because scrap metal is a living resource. Recycling can produce new steel, which can be put into the market again and recycled. In this way, a lot of resources can be saved, and the mining of the earth's mining resources will also be protected.

    Metal scrap baling machine can extrude various kinds of relatively large scrap metal, scrap steel, scrap iron, scrap copper, scrap aluminum, disintegrate car shell, waste oil drum into cuboid, cylinder, octagonal shape and other qualified furnace charge. In order to facilitate storage, transportation and recycling. After being put into the furnace, the pressing loss is lower. The whole production process does not need heating, additives or other processes, direct cold pressing molding, forming at the same time also ensure the original material unchanged. For example, cast iron scrap is used instead of cast pig iron after forming. For castings of special material, recycling is more significant.

    Application of metal scrap baling machine

    Materials: iron / steel: scrap iron, light and thin materials, scrap, car shell, scrap, waste oil bucket, bicycle frame, lathe chips, shavings, iron chips, steel chips, color steel tiles, stainless steel.

    Scrap aluminum: aluminum chips, aluminum shavings, aluminum profiles, doors and windows, cans, aluminum foil, aluminum alloy.

    Scrap copper: copper wire, copper plate, copper scrap, copper shavings, copper wire

    Advantages and characteristics of metal scrap baling machine

    1. It adopts the structure of rotating cover. The opening area of material box is large, especially suitable for large, empty and lightweight materials.

    2. All moving parts are driven by hydraulic pressure. The work is smooth. Double main pressure mode, bale is uniform & compact, high baling efficiency.

    3. Manual operation is simple, convenient, safe and reliable.

    Technical specifications of metal scrap baling machine
    Sr. No.Type nameModel or Data
    Main cylinderCover cylinderCylinder of Bale-out
    1Nominal pressure1350KN500KN300KN
    2Inner diameter of cylinderφ255mmφ160mm2*φ110mm
    3Piston diameterφ180mmφ105mmφ70mm
    4Stroke1700mm1360mm260mm
    5System Max.pressure25Mpa25Mpa15Mpa
    6Bale density≥2.0 t/m3 (Lightweight material)
    7Motor Power22KW
    8Oil Pump80YCY14-1B
    9Single cycle time90 seconds (no-load)
    10Material box size1400*600*600mm
    11Bale size250*(250-500)*600mm
    12Bale weight80-120kg
    12Bale-outForward out
    13Operation modeManual
    14Productivity1-2 ton / hour (scrap iron)
    15Machine size4150*1900*1900mm
    16Other

    1. There are blades on both sides of door cover and material box

    2. The whole machine is free of installation

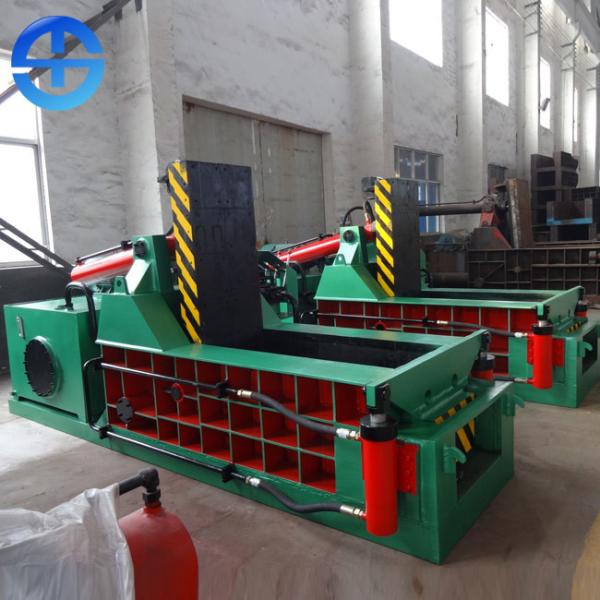

    Quality 250*600mm Bale Size Forward Out Metal Scrap Baling Machine for sale
