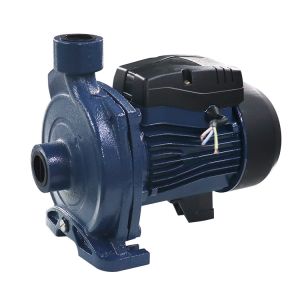

220v 1Hp 158Cpm Centrifugal Single Phase Pump 85L/MIN

Ask Lasest Price
Brand Name :	CPM-130L
Model Number :	0.37KW/0.5HP
Certification :	CE,ISO
Price :	negotiated
Supply Ability :	10000pcs/month
Delivery Time :	25 working days after received your payment

Add to Cart

Product Details
Company Profile

220v 1Hp 158Cpm Centrifugal Single Phase Pump 85L/MIN

Centrifugal Water Pump
Application :
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium-sized pressure sets, for transferring liquids, and for irrigation of gardens and allotments. The pump should be installed in an enclosed environment or at least sheltered from inclement weather.

Liquid type: clean water

Uses: domestic, civil

Applications: water supply systems, air conditioning systems, pressure systems, cooling systems, irrigation pumps, liquids transfer

typology: surface

Family: centrifugal

Performance Range:

Flow rate up to 160 l/min (9,6 m³/h)
Head up to 55 m

Application Limit:

The temperature of the liquid from -10 °C to +90 °C
Ambient Temperature from da -10 °C to +40 °C

• Manometric suction lift to 7 m
• Max. working pressure:
– 6 bar for CP 100-130-132-150-158
– 10 bar for CP 170-190-200
• Continuous service S1

Technical data(220-240V/50HZ)

Model	Power		Current	Capacitor	H.Max	Q.Max	Pipe Size
Model	(HP)	(W)	(A)	(UF)	(m)	(L/min)	(m)
CPM-130L	0.5	370	2.4	10	21	85	1”x1”
CPM-140L	0.75	550	3.5	15	28	100	1”x1”
CPM-158L	1	750	4.8	20	32	110	1”x1”

INFORMATION

Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.

(2) currently causes ablation of bearing system components and heating of bearing components, resulting in a serious failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.

Centrifugal Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
