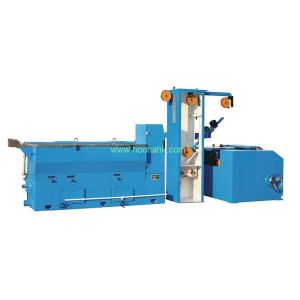

    ISO 415V 3 Phase Intermediate Wire Drawing Machine With Annealer

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-D-250
    Certification : CE/ISO
    Price : US$65500-68500/1set
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 5 sets per month
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

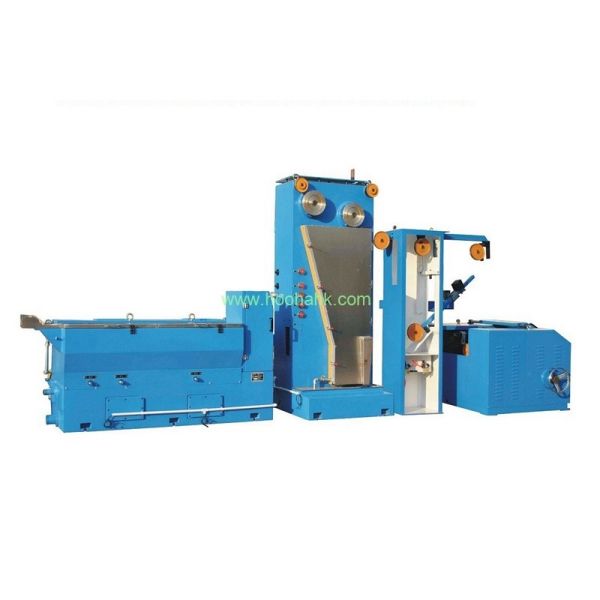

    ISO 415V 3 Phase Intermediate Wire Drawing Machine With Annealer

    Copper Wire Intermediate Drawing Machine with Annealer for Asia and Africa Market

    Application

    The production line is applicable for 2.6-3.0mm copper wire, drawn out to 0.4-1.2mm wire. Along with annealer, the finished conductor wire with annealing process can be used for next process stranding or extrusion.
    Youtube Video Reference: https://www.youtube.com/watch?v=rg227TjsMno

    General Parameters


    1. Driven and controlled by AC three phases dual-inverter.

    2. Horizontal contact-type DC annealing.

    3. Automatic wire take-up on two spools without stop.

    4. Highly precise bearing achieves running in low noise, high efficiency and low power-consumption.

    5. Widely use imported advanced parts and components to ensure machines high reliability.


    The wire drawing process consists in an elongation of the material (copper wire, aluminum wire, aluminum alloy wire, etc.) produced mechanically by the pulling of the wire through one or various dies by some drawing capstans in order to reduce its diameter progressively. This transformation is carried out without any loss of material. At the end of operation, the exact weight of the material that came into the drawing machine at its inlet will be coming out of it at the outlet. The wire, though, will be longer and its diameter will have been reduced during its transformation.

    Main Components

    1. Drawing Main Machine


    1Inlet Dia.(mm)2.6mm
    2Outlet Dia.(mm)1.2~0.4mm
    3Mechanics Speed(m/min)Max 1800
    4Capstan Dia.(mm)250mm
    5No. of Dies(Channel)21
    6Dies Outlet Size(mm)25mm × 8 - 12mm (thickness)
    7Mechanics Elongation (%)By the dies from the 1st to 20th, 18.4% by the 21st die, 15%
    8Main Motor Power(KW)AC45
    9Constant Speed Capstan Motor (KW)AC11
    10Drawing Coolant ModeFull Immersion
    11Dimension(mm)L×W×H5000×3000×3500
    12Machine Net Weight(kg)About 4500

    2. Annealing Machine


    3. Take-up Machine


    Drawings


    Packaging & Shipping

    For regular way, streching PE film wrapped, wooden frame packed for small or electrical parts, loaded into container and shipped by sea. Special packaging way could be discussed.

    Our Advantages


    Our Focus

    1.Design. Our engineers keep study in industry and work with sales to know more about market, then improve our machines to be easy-operated and high productivity.
    2.Quality. We always take quality at the first place. This is why we can get well developed and cooperate with more customers since established.
    3.Customers' success. Hooha not only focuses on the sales of machines, but also pays high attention to our customers' development. We pursue growing together with customers by providing long-term and full-range support to help them achieve success.
    4.Supply more environment-friendly products, like power saving and low noise wire and cable machines.
    5.Feed back to society and help more people.


    FAQ

    Q1:What is your main brands for the electrical and mechanical parts?
    A:Imported famous brand parts such as Germany Siemens motor, Japanese NSK bearing and Yaskawa inverter etc.
    Q2:What is your advantage compared with other suppliers?
    A:What we can offer to our clients is not only the machine itself, but also offer further services including: factory design, production process
    design, talent training, assist machines and raw materials. We provide the support in the entire industry chain for our clients as long as you need.

    Q3:What's the payment terms?
    A:T/T or L/C, 50% deposit and 50% balance before delivery, can be negotiable also.

    Q4:How long for the guarantee?
    A: 12 months and charge cost fee for maintenance and upgrade in the whole life.

    Q5: Do you have a video to show the machine running ?
    A. Yes, you can visit our youtube channel: tiezhong chi, and get more information.
