In most areas of application, it is the optimal solution.
Chemical, mechanical, thermal and optical (different colors)
excellent performance. Very good flexibility.
Technical Data:
Scope of application:

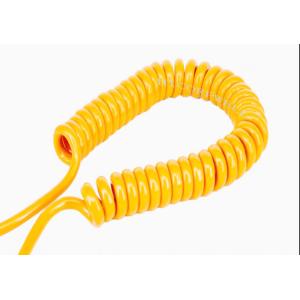

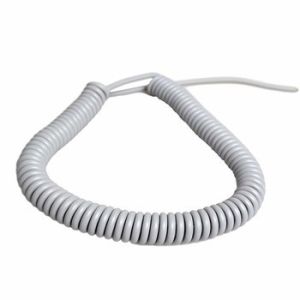

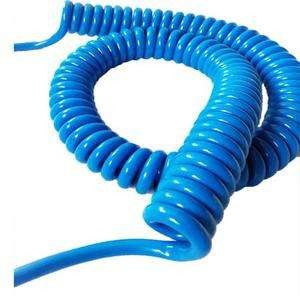

Used as gathering connection wire of the equipment circuit which
needs to move back and forth or up-and-down, AC voltage 300/750V
and below or DC voltage 1000V and below, such as telephone spiral
cable, computer spiral wire, plug-in unit of electronic equipment
spiral cable, auto spiral wire, trailer retractable cable,
retractable connection wire, etc.
Product characteristics:
good flexibility and elasticity (extension length could be 4-5
times of the original). good cold resistance, flame retardance, oil
and wear resistance. We can produce different kinds of spiral wires
according to specific application conditions and requirements.
Conductor structure:
single strand or multi-strand copper wire (or tinned copper wire).
Insulation material:
may be PVC, polyethylene, polypropylene or called linked
polyethylene, fluoroplastic, to meet the requirements of different
conditions.
Sheathing material: generally use flexible polyurethane material.
Operating temperature:
according to the customer's requirements, cold residence: -65
degrees Celsius,
heat residence: 80 degrees Celsius, 105 degrees Celsius, 125
degrees Celsius.
Production range:
the standard cross-section: 0.08 to 6 mm2(special specifications
can be produced according to customer's requirements ).
Core number:
1 to 37 (special specifications can be produced according to
customer's requirements).
Wire length: no limitation.
Please try to provide us with detailed cable data in order that we
could serve you better. If there is something you dont know, just
let it be.
Cable data:
L0 (cable length):
L (working length):
L1(straight tail):
L2(straight tail):
Tail is vertical or parallel to coiled section:
D0 (OD of the coil):
D (Cable OD):
Insulation material:
Insulation color:
Conductor material:
Conductor structure:
Conductor cross section:
Core quantity:
Sheath material:
Sheath color:
Shielding method:
Electrical current:
Voltage:
Environment used:
Special requirement:
Quantity:
Your country:
