    Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump

    Ask Lasest Price
    Brand Name : OWO
    Price : Negotiable
    Delivery Time : 4~6 weeks
    Payment Terms : T/T,L/C
    Model Number : OWM28RBL Series
    Certification : CE, Rohs, UL
    • Product Details
    • Company Profile

    Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump

    28mm Brushless DC Motor

    Prodcuts Description:
    Item No:OWM28BL
    The 28mm brushless motor features high power density and smooth speed control.It is suitable for high-speed application.For example,it's used car cushion massage pump in auto industry.

    OWM28BL SERIES

    INDICATIONS OF THE MODELS

    OWM 28 BL 26
    OWM: OWO Motor
    28: Motor frame size: Metric (mm)
    BL: Round Brushless motor

    26: Body length

    ◆GENERAL SPECIFICATIONS

    Winding typeStar
    Hall effect angle120 degree electrical angle
    Shaft run out0.025mm
    Radial play0.02mm@450g
    End play0.08mm@450g
    Max. radial force15N @ 10mm from the flange
    Max. axial force10N
    Insulation classClass B
    Dielectric strength500VDC for one minute
    Insulation resistance100MΩMin., 500VDC


    ◆ELECTRIC CONNECTION

    Lead No.Lead colorLead gaugeFunctionDescription
    1BlueUL1007 26AWGVccSupply voltage for hall sensors
    2RedHall A
    3YellowHall B
    4BrownHall C
    5GreenGNDGround for hall sensors
    6RedUL1007 26AWGPhase U
    7BrownPhase V
    8BlackPhase W


    ◆ELECTRICAL SPECIFICATIONS

    ModelOWM28BL26OWM28BL38OWM28BL77
    Number of poles444
    Number of phase333
    Rated voltage VDC152424
    Rated speed RPM8000100003700
    Continuous stall torque mN.m8.41760
    Rated torque mN.m714.1250
    Rated power W614.7816
    Peak torque mN.m2142.4150
    Peak current A2.52.83
    Line to line resistance ohms84.634.67
    Line to line inductance mH233.5
    Torque constant mNm/A13.71650
    Rotor inertia g.cm21.232.125.98
    Body length mm263877
    Mass Kg0.060.0820.28

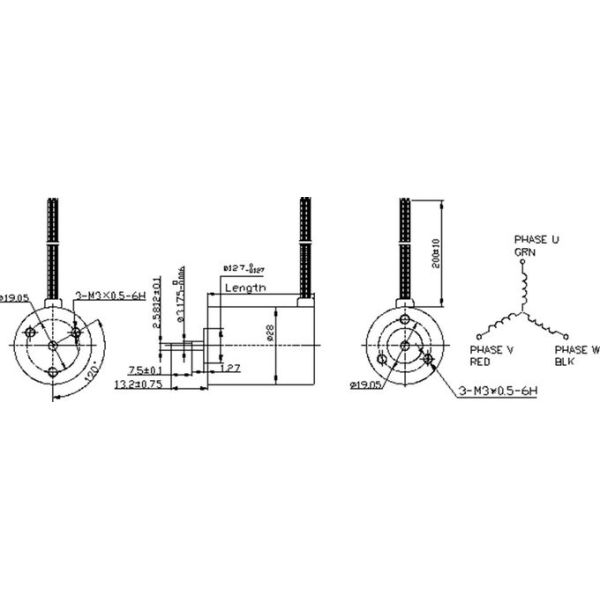

    DIMENSIONS:
    28mm Round High Voltage Brushless Dc Motor For High Speed Application
    Application field:


    Certificate:

    Related Names:
    Smooth Speed Governing Motor without Brush | Brushless Motor Machine for High Speed Function | Electric Device without Brush for Car Cushion Massage Pump
