Self-supporting Outdoor Steel Messenger Wire FRP G657 FTTH Drop
Fibra Optical Cable
Description

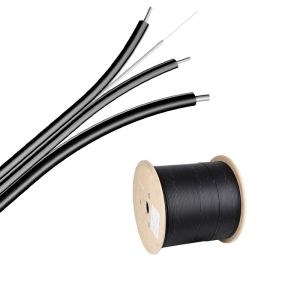

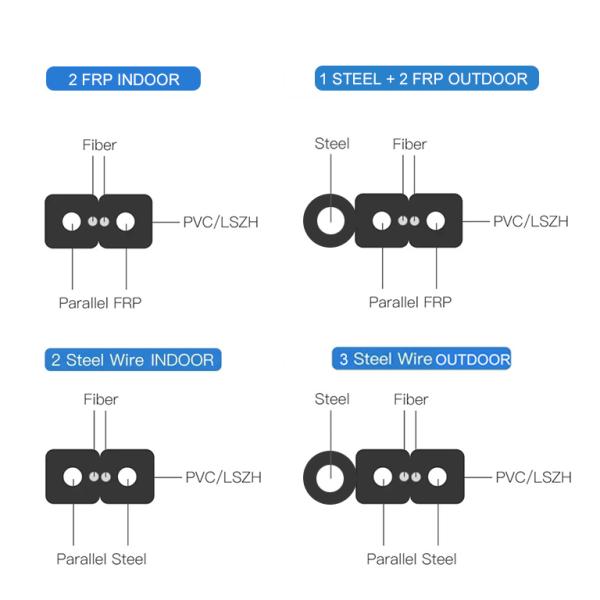

self-supporting access network uses the indoor and outdoor optical
fiber cable with a butterfly shape that is to place the optical
fiber unit in the
center, two parallel strength member are placed on both sides, and
added single metallic strength member on the outside, Finally it is
compeleted
wiht a black or colored LSZH out sheath.
Product Characteristics
• Flex durable fiber to provide greater bandwidth and enhance network
transmission characteristics
• Two parallel metallic strength member to protect the fiber and
provide adequate tension and pressure
• single metallic strength member makes optical cable having good
tensile performance
• Optical cable has simple structure, light weight and strong
practicability
• unique groove design, Easy peeled off and splice, simplify the
installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Application
• Indoor and outdoor wiring system
• FTTH, terminal system
• Indoor and outdoor shaft,building wiring
Structural Parameter
| Model No. | Count | Cable Size (mm) | Weight (kg/km) | Tension
(N) | Crush (N/100mm) | Bending Radius Static / dynamic
(mm) |
| GJYXCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
| GJYXCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
Optical Fibre Performance
| Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius |
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / |
| Typical value | MAX | Typical value | MAX |
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
