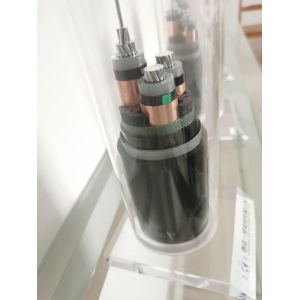

IEC 60502-1 PVC Sheathed Armored Copper Cable For Power Grids

    Buy cheap IEC 60502-1 PVC Sheathed Armored Copper Cable For Power Grids from wholesalers

    Buy cheap IEC 60502-1 PVC Sheathed Armored Copper Cable For Power Grids from wholesalers
    • Buy cheap IEC 60502-1 PVC Sheathed Armored Copper Cable For Power Grids from wholesalers

    IEC 60502-1 PVC Sheathed Armored Copper Cable For Power Grids

    Ask Lasest Price
    Brand Name : HOLD-ONE
    Certification : CE/IEC/KEMA/VDE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100km per Month
    Delivery Time : 8-15 days
    • Product Details
    • Company Profile

    IEC 60502-1 PVC Sheathed Armored Copper Cable For Power Grids

    PVC sheathed power cable:


    Polyvinyl chloride insulated power cables not only have high mechanical strength, good environmental stress resistance, good electrical properties and chemical corrosion resistance, but also have a simple structure, light weight and easy use. It is suitable for transmission and distribution lines with AC rated voltage U0/U up to 0.6/1kV.
    The main feature of flame-retardant PVC power cables is that they are not easy to catch fire, or the continuous burning of the cable is very limited during fire. It is suitable for places where multiple cables are closely laid, such as power stations, subways, tunnels, high-rise buildings, large factories, mines, oil fields, and coal mines.


    Physical and Electrical Characteristics


    No.cores xInsulationSheathOuter ØweightCurrent ratings in air 30℃Current ratings buried 20℃
    cross-sec.thicknessthicknessapprox.approx.
    Nominal
    PhaseNeutralvalue
    mm²mmmmmmmmkg / kmAA
    3×4+1×2.50.70.71.812.72773747
    3×6+1×40.70.71.813.93634760
    3×10+1×60.70.71.816.15276481
    3×16+1×100.70.71.818.676685106
    3×25+1×160.90.71.822.21140113137
    3×35+1×160.90.71.824.61475139

    164


    Basic Information


    Model: YJV YJLV VV VLV VY VLY VV22 VV23 VV33 etc.
    Material shape: suitable for round wire
    Scope: power grid and all industries
    Certificate: ISO9001, ISO14001, CCC, CE
    Specifications: 0.5mm2-630mm2
    Applications: power grids, transmission lines, construction, railway transportation, chemical plants, telecommunications, petroleum industry, equipment manufacturing, instrumentation industry, etc.

    Voltage: 35KV, 10KV, 0.6/1KV, 450/750V, 300/500V
    Current: AC&DC
    Insulation material: XLPE, PVC, etc.
    Sheath material: XLPE, PVC, etc.
    Material shape: round wire


    Application


    1. The rated voltage U0/U is 0.6/1kV to 26/35kV.
    2. Under normal operation, the maximum temperature of the conductor is 90oC.
    3. The maximum temperature of the conductor under short circuit (the longest duration does not exceed 5s) does not exceed 250oC.
    4. The minimum installation environment temperature is not less than 0oC.
    The installation bending radius is not less than the following specified value:
    Single core unarmored cable: 20D
    Single core armored cable: 15D
    3-core non-armoured cable: 15D
    3-core armored cable: 12D

    Quality IEC 60502-1 PVC Sheathed Armored Copper Cable For Power Grids for sale
