    Metallized Polypropylene Film Capacitor CBB22 154j250v 0.15uf P10

    Ask Lasest Price
    Brand Name : GDHY
    Model Number : CBB22 154J250V P10
    Certification : SGS,ISO
    Price : PLEASE CONTACT US FOR MORE DETAILS
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 1KK PCS/MONTH
    Delivery Time : 15 WORKING DAYS
    • Product Details
    • Company Profile

    Metallized Polypropylene Film Capacitor CBB22 154j250v 0.15uf P10

    0.15UF 250V 5% CBB22 METALLIZED POLYPROPYLENE FILM CAPACITOR FREE SAMPLE AVAILABLE

    Technical Parameter


    Reference StandardsGB/T 10190(IEC 60384-16)
    Climate Category40/085/21
    Operating Temperature Range-40℃~85
    Capacity Range0.15μF
    Rated Voltage250VDC
    Pitch10MM
    Capacity Tolerance±5%(J);±10%(K)
    Withstand voltageVt-t:1.6UN 5S (at20 ±5%)
    Dissipation Factortgδ≤0.0010 (20, 1KHz)
    Insulation ResistanceC≤0.33μF R≥30000MΩ (at20℃ 100VDC 1Min)
    Maximum Pulse Rise Time (dv/dt)220(V/μS)

    Specification download: CBB22.pdf


    Application


    Widely used in high frequency, DC, AC, Pulse Circuits, and the S-correction circuits of the display device.


    Feature


    ● Metallized polypropylene film dielectric

    ● Non-inductive winding structure

    ● Flame retardant epoxy resin powder encapsulation

    ● Resistance to high voltage, small tgδ, low temperature rise

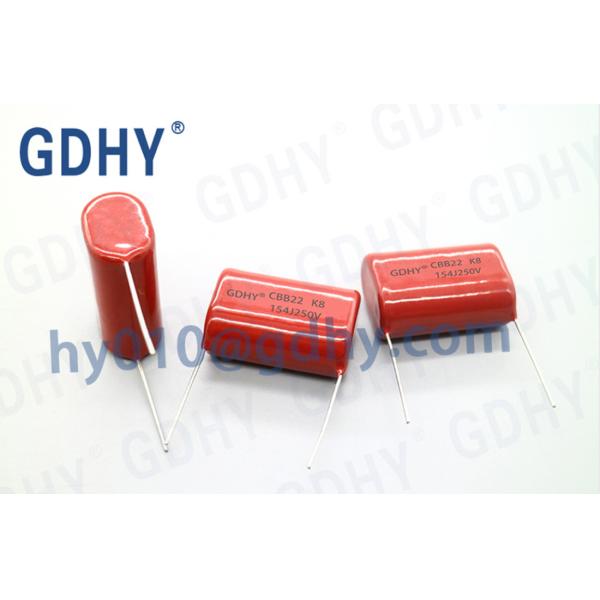

    Product Picture



    Product Shape



    Production


    Workshop&Equipment


    Packing method

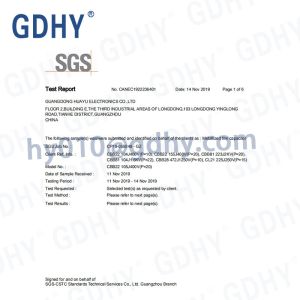

    Certificate

    Exhibition
