Particle Hopper Lifter 150kg Industrial Lifting Equipment

    Buy cheap Particle Hopper Lifter 150kg Industrial Lifting Equipment from wholesalers

    Buy cheap Particle Hopper Lifter 150kg Industrial Lifting Equipment from wholesalers
    • Buy cheap Particle Hopper Lifter 150kg Industrial Lifting Equipment from wholesalers

    Particle Hopper Lifter 150kg Industrial Lifting Equipment

    Ask Lasest Price
    Brand Name : XIANDAO
    Model Number : YS
    Certification : CE / UL / SGS / EAC / CR – TU
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 20 SETS PER MONTH
    Delivery Time : 8~18 WEEKS
    • Product Details
    • Company Profile

    Particle Hopper Lifter 150kg Industrial Lifting Equipment

    YS Series Particle Hopper Lifting Machine For Foodstuff Industry


    Technical parameters:


    SpecCapacity (kg)Product container weight(empty)(kg)Motor power (kW)Lifting speed (m/min)

    A

    (mm)

    B

    (mm)

    C

    (mm)

    D

    (mm)

    E

    (mm)

    F

    (mm)

    YS 60150851.10~4400039003700220014001095
    YS 1202501201.10~4400039003700220014001290
    YS 2003501602.20~4400039003700220016001495
    YS 3005002203.00~0.35400039003700220017001690
    YS 5007502503.00~3400039003700220018001890

    Product Detail:


    COM:SUS316/SUS304Application:Mixing material
    Motor:ABB/ SIEMENS /SEWFeature:The Structure Is Reasonable, Adopting Double Hoisting Device
    Principle:The Mixing Body (material Vessel)Capacity:20-500kg/batch

    Principle

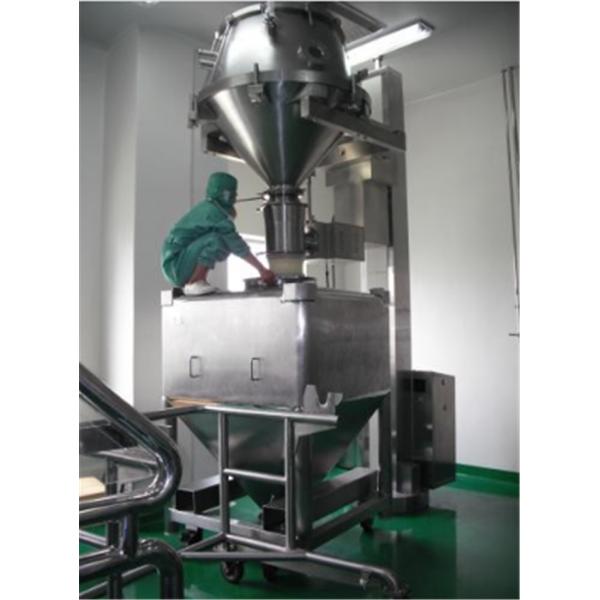

    This machine is mainly composed of a chassis, upright, lift system, turning system. When work , it can lock the bowl of FL, PGL, GFG and FG with the cone adapter. Start the lift button, bin lifting; turn button, you can turn 180 degrees. Loosen the brake, horizontal rotating column to the process requirements, and bin to working height decreased, then open the valve, so that the material is transferred to the next process.


    Features


    This machine is designed after our widely absorbing foreign advanced technology and combining the successful researches and specific conditions.


    ① The machine has reasonable structure and stable performance, and it has no dead angles and exposed screws, besides, it’s also convenient to operate.


    ② The machine is equipped with anti misoperation device discharge valve, which makes it safe enough in production, and it is easy to disassemble and clean.


    ③ And to control dust and cross pollution effectively, optimize the production process, in full compliance with the GMP requirement of pharmaceutical production.

    Besides, it has high safety performance, equipped with multiple safety protection, such as rotating brake, and safety lock in the material discharging position.


    Sketch map


    Application


    It’s designed to meet GMP standards;

    Integrated with FL, PGL, GFG and FG series of Fluid bed to realize dust-free discharge.
