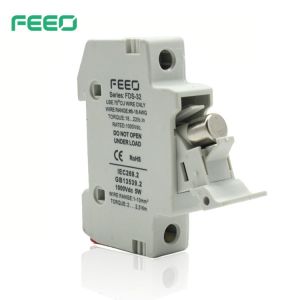

    10x38mm IP20 DC Solar Fuse for solar protection

    Ask Lasest Price
    Brand Name : FEEO
    Model Number : FDS-32
    Certification : CE/CCC/TUV/RoHS
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000pcs per week
    Delivery Time : 7days
    • Product Details
    • Company Profile

    10x38mm IP20 DC Solar Fuse for solar protection

    FDS-32 10x38 32A 1000V Fuse Link Fuse Holder Dc Fuse Box


    A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings.

    These fuse links are capable of interrupting low overcurrents

    associated with faulted photovoltaic string arrays(reverse current, multi-array fault).


    Structural Characteristics


    • According to IEC60269-1

    • Rated current : 1-32A

    • Rated voltage : DC 1000V

    • Rated breaking capacity : DC 20KA

    • Operating class : gPV for solar protection


    Specifications

    Pole1P
    Rated Voltage Ue (V DC)1000
    Rated Current In (A)1,2,3,4,5,6,8,10,12,15,20,25,32
    Biggest Block Ability (KA)20
    The Most High Power Consumption (W)3.5

    Connection and Installation

    Connection (mm2)2.5~10
    Working Temperature (℃)-30~+70
    Resistance and Damp HotClass 2
    Altitude (m)≤2000
    Relative Humidity≤95%
    Protection Class / DegreeIP20
    Pollution3
    Installation EnvironmentNo obvious shock and vibration
    Installation Class / TypeClass III / DIN rail

    Size

    Size / Dimension (mm)
    W x H x LW18
    H60
    L78
    Fuse Size10 x 38
    Fuse Link Weight (kg)0.011
    Fuse Holder Weight (kg)0.07

    Application conditions


    • Photovoltaic system fuse accord with UL248-1 standard

    • Photovoltaic battery dc fuse designed to used for photovoltaic (PV) system

    • Main effect is to protect the solar panels. Solar panels points in effective condition is broken

    • Fault light cells break points at the same time, does not affect other normal work of light from the stack

    • Technical Data Rated coltage: DC1000V Breaking capacity: 25KA Function level: PV


    Dimensions


    Installation


    Characteristic Curve
