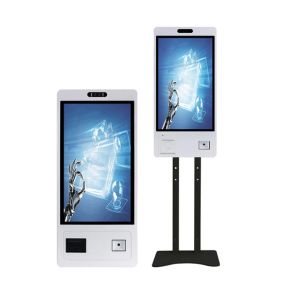

RK3399 21.5" Self Service Payment Kiosk 250nits FHD HDMI

    Buy cheap RK3399 21.5

    Buy cheap RK3399 21.5
    • Buy cheap RK3399 21.5

    RK3399 21.5" Self Service Payment Kiosk 250nits FHD HDMI

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD21PPCT5KO--
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, PayPal(173515844@qq.com)
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Business Days
    • Product Details
    • Company Profile

    RK3399 21.5" Self Service Payment Kiosk 250nits FHD HDMI

    21.5" self-ordering kiosk advertising display all in one PC


    Features
    1. Fashionable appearance, aluminum alloy frame design, the whole machine beautiful, generous, high-grade.
    2. Using imported brand LED HD LCD panel, the picture quality is clearer and the power consumption is lower.
    3. The face frame is made of high-grade toughened glass, which is wear-resistant, scratch-proof and damage-proof.
    4. With anti-theft lock design, it is safer to use in public places.
    5. The horizontal and vertical screen design makes the suspension more free.
    6. Industrial power supply system for 24*7 continuous playback.
    7.The product has passed 3C/CE/FCC/RoHs certification and has software copyright certificate.

    Specifications:


    Panel Specification:
    Size:21.5 inch
    Maximum resolution:1920*1080
    Display color:16.7M
    Pixel Pitch(mm):0.090x0.270 (HxV)
    Brightness (nits):250-500 cd/m2
    Contrast:1400:01:00
    Visual angle:89°/89°/89°/89°
    Response:6ms
    Touch screen:10-point capacitive touch
    Main board:Andriod
    CPU:RK3399/3288/Intel J1900,i3,i5,i7
    RAM:2G
    HDD:16G
    Graphics:CPU integrated
    Panel life:about 50000hours
    Operating System:andriod7.1
    Physical Specification:
    Surface:anti-scratched tempered glass
    Color:Black/White/customized colors
    Audio/Speakers:8Ω,5W,2000 revolutions per minute
    Ports/Slots:Power input| Power switch| USB | LAN
    Power supply:AC 110–240, 50-60Hz
    Operating temperature:0 ~ 50 °C
    Humidity:0% ~ 80%
    Camera:YES
    Printers:ticket printers
    Card Devices:RFID reader
    Scanners:QR code / Barcode scanner
    More productVideo Wall Screen,Self-Order Kiosk,Touch Screen Kiosk
    ,LCD Digital Signage,Stretched Bar Lcd display,
    Interactive Whiteboard


    2.1 System

    Touch FunctionBrand New PCAP Panel, 10 points touch supported;
    DisplayPC FHD HDMI Signal 1080P
    Video Decoding - PC1080P Full HD MPEG,H.264 etc
    StructureAluminum Alloy Frame , Sheet Metal Back Shell
    ModulePC. Display.Touch Panel

    2.2 LCD Panel


    Screen TypeA-Si TFT-LCD , WLED Back-light , Type A
    Size21.5inch (16:9)
    Display size477.6(W)*269.1(H)mm
    Resolution1920*1080P
    Brightness≥250cd/m2 (500nits optional)Contrast Ratio≥1000:1
    Response time14(Typ.)(Tr/Td) msRefreshing Rate60Hz
    Number of Colors16.7M , 52% (CIE1931) LVDS 30 Pins
    View Angle89/89/89/89 (Typ.)(CR≥10)
    Life Time>30000 Hrs;

    2.3 Touch Panel


    Touch TypeProjected Capacity touch screen
    Touch Points10 points touch
    Response Time< 5msRecognition Area> 1.5mm
    Scanning Rate200HzTouch data outputCoordinate output
    CommunicationUSB 2.0,3.0Accuracy4096×4096
    FirmwareUpdate via USBLifetime>50 Million click
    Operation Voltage180Ma/DC+5V±5%DriverFree Drive
    Surface HardnessMohs 7 Chemical tempered explosion-proof glass
    OS supportedWin 7/ Win 8/Win 10/CE/Mac/Android/Linux /XP

    Product Image

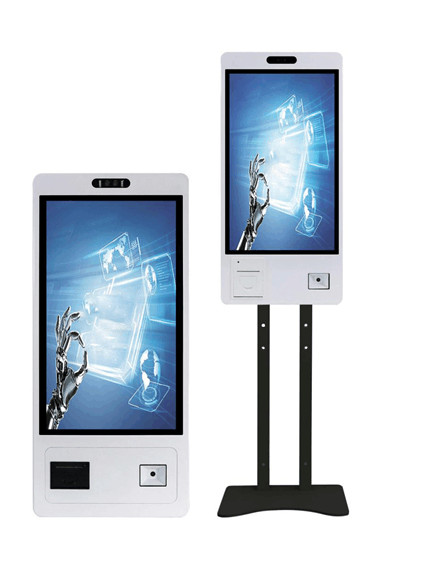

    Quality RK3399 21.5" Self Service Payment Kiosk 250nits FHD HDMI for sale
