The external climbing (plug-in) single pipe tower is formed by bending steel plate, and the cross section of the pipe body is 12 or 16 sided. The tower body is made of multi section steel pipes. The length of single section of steel pipe is between 7m and 10m. The tower body is generally made of stainless steel
Q235B, Q345B or high strength steel. The tower type ladder is arranged on the pipe body. Main features: 1, small area, 2, fast installation, 3, high anti-theft performance, 4, low maintenance workload, 5, safety factor
High.
The inner flange single pipe tower is formed by steel plate circle, and the section of the pipe body is round. The tower body is made of multi section steel pipes. The length of single section of steel pipe is between 7m and 10m. The tower body is generally made of Q235B and Q345B steel
Wood. The climbing ladder of the tower type is arranged inside the tower body. Main features: 1, small area, 2, fast installation, 3, high anti-theft performance, 4, low maintenance workload, 5, can effectively reduce the psychological pressure of maintenance personnel.

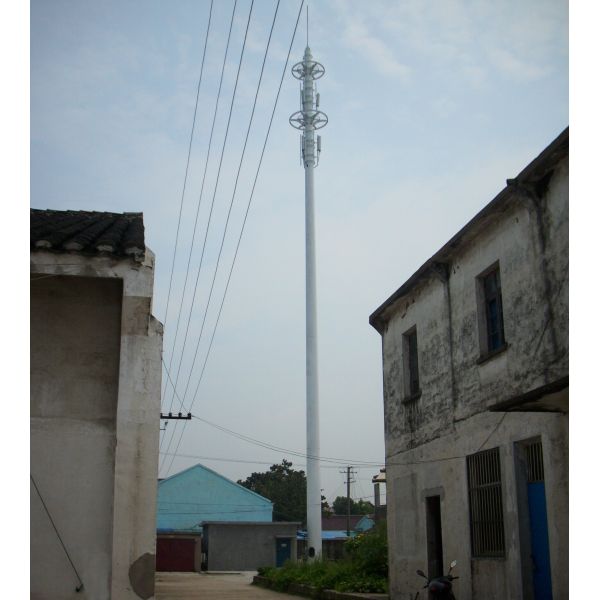

| Products Name | 36M 4 Sections Slip Joint Galvanized Tubular Telecommunication Tower |
| Poles Height | 15-60M |
| Poles Design wind | 100KM/H or depending on clients requirements |
| Calculation Report (Deflection Calculation) | Steel Pole Structure Analysis report |
| Wind Pressure Calculation report | |
| Poles Applications | Telecommunication, wireless internet. |
| Application place | Park,Mountain etc |
| Pole Work Platform | The Work Platform Layers Quantity Depending on the antennas installations Quantity/Size/Weight |
| Telecommunication Equipment Bracket | Equipment Bracket usually use 76mm(OD) Pipe,The bracket length depending on the Work platform Layers and spacing of the work Platform. |
| Telecommunication Equipment Equipped | RRU,Microwave-Dish,Radome,Antenna Etc |
| Telecommunication Equipment Equipped Method | Equipment Equipped Method by “U” Type anchor bolt to fixed on 76mm(OD)pipe bracket. |
| Shape | Conical, Polygonal, |
| Length of per section | Within 14m once forming without slip joint |
| Material | Q235, Q355, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 |
| Minimum yield strength | 355 Mpa |
| Minimum ultimate tensile strength | 490 Mpa |
| Max ultimate tensile strength | 620 Mpa |
| Surface Treatment | Hot Dip Galvanization in accordance with Chinese Standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 or BS EN ISO 1461 and different Color Powder Coated. |
| Connection Method | Slip joint by lower section insert into upper section |
| Flange connect to flange(outer flange/inner flange) |
| Welding | Welding complies with AWS D1.1 standard. CO2 Welding or Submerged Arc Auto methods No fissures, scars, overlaps, layering or other defects |
| Welds Seam | longitudinal welding seam and transverse welding seam |
| Welds slags removing | Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing. |
| Mounting Method | Direct Burial/With Base Template and Anchor Bolts |
| Base plate | Base plate is square/round/polygonal with slotted holes for anchor bolts or according to clients’ requirement. |
| Life Expectancy | More than 25 years depending on various environmental factors |
Hebei Chang Tong Steel Structure Co., Ltd.
located in the hometown of China Tower, is a modern big-scale professional company fabricating triangular communicationtower,
four-corner communication tower, cable tower, single-tube tower, camouflage communication tower and transmission line
tower.integrating design,fabrication and marketing,annual production capacity reaches more than 30,000 tons.
Company always adhere to the business strategy of "survive by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,complete production equipment, reliable production process,
adopt advanced CNC angle steel production line, CNC sheet production line and various supporting equipment. The
equipment has a first-class iron tower stakeout center, all of which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for production, which can fully meet the design and production requirements of various types of towers and substation structures.
Our steel tower products have won good reputation from our customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and Ireland.
| Sign In | Join Free | My burrillandco.com |
|
| Ask Lasest Price | |
| Brand Name : | ChangTong |
| Model Number : | JGT190409-2 |
| Certification : | ISO9001:2008 |
| Price : | USD1000-15000 |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 20000Tons/year |
| Delivery Time : | 30-45days |
The external climbing (plug-in) single pipe tower is formed by bending steel plate, and the cross section of the pipe body is 12 or 16 sided. The tower body is made of multi section steel pipes. The length of single section of steel pipe is between 7m and 10m. The tower body is generally made of stainless steel
Q235B, Q345B or high strength steel. The tower type ladder is arranged on the pipe body. Main features: 1, small area, 2, fast installation, 3, high anti-theft performance, 4, low maintenance workload, 5, safety factor
High.
The inner flange single pipe tower is formed by steel plate circle, and the section of the pipe body is round. The tower body is made of multi section steel pipes. The length of single section of steel pipe is between 7m and 10m. The tower body is generally made of Q235B and Q345B steel
Wood. The climbing ladder of the tower type is arranged inside the tower body. Main features: 1, small area, 2, fast installation, 3, high anti-theft performance, 4, low maintenance workload, 5, can effectively reduce the psychological pressure of maintenance personnel.
| Products Name | 36M 4 Sections Slip Joint Galvanized Tubular Telecommunication Tower |
| Poles Height | 15-60M |
| Poles Design wind | 100KM/H or depending on clients requirements |
Calculation Report (Deflection Calculation) | Steel Pole Structure Analysis report |
| Wind Pressure Calculation report | |
| Poles Applications | Telecommunication, wireless internet. |
| Application place | Park,Mountain etc |
| Pole Work Platform | The Work Platform Layers Quantity Depending on the antennas installations Quantity/Size/Weight |
| Telecommunication Equipment Bracket | Equipment Bracket usually use 76mm(OD) Pipe,The bracket length depending on the Work platform Layers and spacing of the work Platform. |
| Telecommunication Equipment Equipped | RRU,Microwave-Dish,Radome,Antenna Etc |
| Telecommunication Equipment Equipped Method | Equipment Equipped Method by “U” Type anchor bolt to fixed on 76mm(OD)pipe bracket. |
| Shape | Conical, Polygonal, |
| Length of per section | Within 14m once forming without slip joint |
| Material | Q235, Q355, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 |
| Minimum yield strength | 355 Mpa |
| Minimum ultimate tensile strength | 490 Mpa |
| Max ultimate tensile strength | 620 Mpa |
| Surface Treatment | Hot Dip Galvanization in accordance with Chinese Standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 or BS EN ISO 1461 and different Color Powder Coated. |
| Connection Method | Slip joint by lower section insert into upper section |
| Flange connect to flange(outer flange/inner flange) |
| Welding | Welding complies with AWS D1.1 standard. CO2 Welding or Submerged Arc Auto methods No fissures, scars, overlaps, layering or other defects |
| Welds Seam | longitudinal welding seam and transverse welding seam |
| Welds slags removing | Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing. |
| Mounting Method | Direct Burial/With Base Template and Anchor Bolts |
| Base plate | Base plate is square/round/polygonal with slotted holes for anchor bolts or according to clients’ requirement. |
| Life Expectancy | More than 25 years depending on various environmental factors |
