4 legs Microwave 5G Communication Angle Steel Tower

    Buy cheap 4 legs Microwave 5G Communication Angle Steel Tower from wholesalers

    Buy cheap 4 legs Microwave 5G Communication Angle Steel Tower from wholesalers
    • Buy cheap 4 legs Microwave 5G Communication Angle Steel Tower from wholesalers
    • Buy cheap 4 legs Microwave 5G Communication Angle Steel Tower from wholesalers
    • Buy cheap 4 legs Microwave 5G Communication Angle Steel Tower from wholesalers
    • Buy cheap 4 legs Microwave 5G Communication Angle Steel Tower from wholesalers

    4 legs Microwave 5G Communication Angle Steel Tower

    Ask Lasest Price
    Brand Name : ChangTong
    Model Number : JGT190409-4
    Certification : ISO9001:2008
    Price : USD1000-1500/Ton
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20000Ton/year
    Delivery Time : 30-45days
    • Product Details
    • Company Profile

    4 legs Microwave 5G Communication Angle Steel Tower

    Customized Design Angle Steel Bar Telecommunication Telecom Antenna 4 legs Tower5G Communication Tower Telecommunication

    Product Description

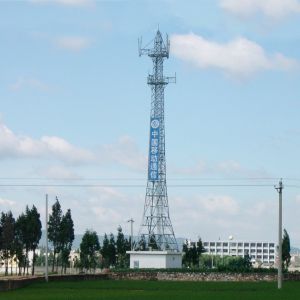

    Microwave angle steel tower belongs to a kind of signal transmitting tower, also known as signal transmitting tower or signal tower. Its main function is to support signal transmitting and to support signal transmitting antenna.


    Microwave angle steel tower, also known as microwave tower and microwave communication tower, is mostly built on the ground, roof and peak. The microwave tower has strong wind bearing capacity. The tower is mostly made of angle steel material supplemented by steel plate material, or all of them are made of steel pipe material. The components of the tower are connected by bolts, and all the components of the tower are treated by hot galvanizing after processing. The angle steel tower is composed of tower shoe, tower body, lightning tower, lightning rod, platform, ladder, antenna support, feeder frame and lightning down lead. It is mainly used for microwave, ultrashort wave, wireless network signal transmission and transmission. In order to ensure the normal operation of the wireless communication system, the communication antenna is usually placed at the * point to increase the service radius, so as to achieve the ideal communication effect. Communication tower plays an important role in communication network system.

    Raw Material

    No.1


    GradeMild SteelHigh Tensile Steel

    GB/T 700:Q235B, Q235C,Q235D

    ASTM A36

    EN10025: S235JR, S235J0,S235J2

    GB/T1591:Q345B, Q345C,Q3455D

    ASTM A572 Gr50

    EN10025: S355JR, S355J0,S355J2

    No.2


    Design Wind Speed

    Up to 250km/h

    Or can be customized

    No.3Acceptable DeflectionO.5~1.0 degree
    No.4Tension Strength360~510 MPA470~630 MPA
    No.5

    Yield strength

    (t≤16mm) (Mpa)

    355235
    No.6Elongation (%)2024
    No.7Impact strength KV (J)27(20°C)---Q235B(S235JR)27(20°C)---Q345B(S355JR)
    27(0°C)---Q235C(S235J0)27(0°C)---Q345C(S355J0)
    27(-20°C)---Q235D(S235J2)27(-20°C)---Q345D(S355J2)
    Blots & Nuts
    No.1GradeGrade 4.8, 6.8, 8.8
    No.2Standards for mechanical properties
    No.3BoltsISO 898-1
    No.4NutsISO 898-2
    No.5WashersISO 6507-1
    No.6Standards for Dimensions
    BoltsDIN7990, DIN931, DIN933
    NutsISO4032, ISO4034
    Welding
    No.1MethodCO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
    No.2StandardAWS D1.1
    Marking
    Method of marking of the numbersHydraulic Press Stamping
    Galvanized
    No.1Galvanization standard of steel sectionsISO 1461 or ASTM A123
    No.2Galvanization standard of bolts and nutsISO 1461 or ASTM A153
    Test
    Factory test

    Tensile test,Elements analysis, Sharpy

    test(impact test),

    Cold Bending, Hammer test

    Product Show

    Our Factory

    Our Company

    Hebei Chang Tong Steel Structure Co., Ltd..located in the hometown of China Tower, is a modern big-scale
    professional company fabricating triangular communicationtower,four-corner communication tower, cable tower, single-tube tower,
    camouflage communication tower and transmission linetower.integrating design,fabrication and marketing,annual
    production capacity reaches more than 30,000 tons.Company always adhere to the business strategy of "survive
    by quality, develop by credit, increase efficiency by science and technology", continuously carry out technical transformation,
    complete production equipment, reliable production process,adopt advanced CNC angle steel production line, CNC sheet
    production line and various supporting equipment. The equipment has a first-class iron tower stakeout center, all of
    which implement microcomputer lofting, which guarantees the processing quality and provides a strong guarantee for
    production, which can fully meet the design and production requirements of various types of towers and substation
    structures.
    Our steel tower products have won good reputation from our customers,including China tower,China mobile,China
    unicom,China telecom,State grid and so on.In addition,our products also were exported to many countries and
    areas,including South American,Africa,Southeast Asia and Ireland.

    Production Process

    Detection

    Cooperative units
