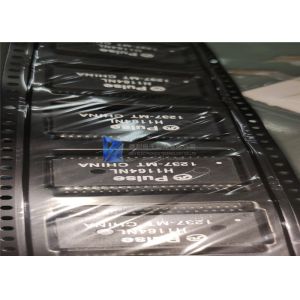

H1164NLT Transformer IC Modules Sop40 Auto Mdi / Mdix Applications

    Buy cheap H1164NLT Transformer IC Modules Sop40 Auto Mdi / Mdix Applications from wholesalers

    Buy cheap H1164NLT Transformer IC Modules Sop40 Auto Mdi / Mdix Applications from wholesalers
    • Buy cheap H1164NLT Transformer IC Modules Sop40 Auto Mdi / Mdix Applications from wholesalers
    • Buy cheap H1164NLT Transformer IC Modules Sop40 Auto Mdi / Mdix Applications from wholesalers

    H1164NLT Transformer IC Modules Sop40 Auto Mdi / Mdix Applications

    Ask Lasest Price
    Brand Name : PULSE
    Model Number : H1164NLT
    Certification : CE/ RoHS
    Price : To be negotiated
    Payment Terms : T/T, Western Union ,paypal
    Supply Ability : 10,000PCS
    Delivery Time : in stock 2-3days
    • Product Details
    • Company Profile

    H1164NLT Transformer IC Modules Sop40 Auto Mdi / Mdix Applications

    10/100BASE-TX Transformer Modules SOP-40 For Auto MDI/MDIX Applications


    • RoHS peak reflow temperature rating 245°C
    • Symmetrical transmit and recieve channels for Auto MDI/MDIX capability
    • Approved for use with the Broadcom BCM5226 and Level One LXT9784
    • Meets IEEE 802.3 specification
    • Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C

    Insertion Loss (MAX): 1
    Return Loss (dB MIN):
    2-30 MHz -18
    40 MHz-14.4
    50 MHz -13.1
    60-80 MHz-12
    Crosstalk (dB MIN)
    1 kHZ : 55
    30 MHz : 45
    60 MHz : 40
    100 MHz : 33
    Differential to Common Mode Rejection (dBMIN)
    1-60 MHz :37
    60-200 MHz :25
    Hipot (Vrms MIN) :1500

    1. Operating Temperature -40°C to +85° Cww
    2. For Tape & Reel packaging, add a “T” suffix to the end of the part number when ordering, (Ex: H1164NLT)
    3. MSL = Moisture Sensitivity Level a=1 b=2 c=3 d=4
    Weight . . . . . . . . . . 4.8 grams
    Tape & Reel . . . . . . . 250/reel
    Tube . . . . . . . . . . . . . . 15/tube
