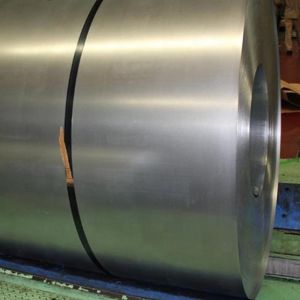

Non-Grain Oriented Electrical M600 Silicon Steel Coil

    Buy cheap Non-Grain Oriented Electrical M600 Silicon Steel Coil from wholesalers

    Buy cheap Non-Grain Oriented Electrical M600 Silicon Steel Coil from wholesalers
    • Buy cheap Non-Grain Oriented Electrical M600 Silicon Steel Coil from wholesalers
    • Buy cheap Non-Grain Oriented Electrical M600 Silicon Steel Coil from wholesalers
    • Buy cheap Non-Grain Oriented Electrical M600 Silicon Steel Coil from wholesalers
    • Buy cheap Non-Grain Oriented Electrical M600 Silicon Steel Coil from wholesalers
    • Buy cheap Non-Grain Oriented Electrical M600 Silicon Steel Coil from wholesalers

    Non-Grain Oriented Electrical M600 Silicon Steel Coil

    Ask Lasest Price
    Brand Name : DZSICO
    Model Number : 0.35mm - 0.5mm * 10mm - 1250mm
    Certification : SGS | ISO | CE | BV
    Price : $550.00 - $750.00 / Metric Ton
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 Ton/tons Per Month Stainless Steel Coil
    Delivery Time : 1-10T - 7Days, 11-25T - 10Days, 26-100 - 10Days, > 100-To be negotiated
    • Product Details
    • Company Profile

    Non-Grain Oriented Electrical M600 Silicon Steel Coil

    Cold Rolled M600 Silicon Steel Coil Of Non-Grain Oriented Electrical Steel Magnetic For Motors

    Product Advantages

    1.Stable performance
    2.Excellent processing performance: High precision dimension and excellent mechanical properties make it easy to be sheared, punched and stacked by high speed punch machine. It also have good welding performance.
    3.Excellent performance of Insulating coating: Uniform color, good insulation, high adhesion, excellent heat resistance and excellent processing performance

    Product Introduction

    Electrical steel, also known as silicon steel, is a ferrosilicon soft magnetic alloy steel with very low carbon content, usually containing 0.5% to 4.5% silicon. The addition of silicon can increase the resistivity and maximum permeability of iron, and reduce the coercivity, iron loss and magnetic aging.

    Mechanical Property

    GradeYeild Strength
    (N/mm2)
    Ultra
    -Tension
    Strength
    (N/mm2)
    Ductility
    (%)
    Hardness
    (HV1
    M35W23043056020.0225
    M35W25041555020.5220
    M35W27040051520.5215
    M35W30036048021.5195
    M35W36035048023.5190
    M35W44027542027.5165
    M35W55026541533.5160
    M50W25043056019.0230
    M50W27041055021.5225
    M50W29039554522.5220
    M50W31038551024.5210
    M50W35035047526.5190
    M50W40032046036.0170
    M50W47029542535.0160
    M50W60028041037.0140
    M50W80028540538.5135
    M50W1300(D)25036040.0115

    Insulating Coating

    Coating typesM11M21
    ComponentChromium containing , semi organic coatingChromium free, semi organic coating
    Coating thickness
    (μm)
    0.7~1.50.8~5.0
    Interlayer resistance
    (Ω•mm2 /slice)
    ≥100≥100
    Adhesive propertyClass A or class BClass A or class B
    Punching propertyExcellentExcellent
    Antirust propertyExcellentExcellent
    Heat resisting propertyResistant annealing at 750 C, N2 protection, for 2hAnnealing resistance in general

    Product Application

    FieldPurpose
    Rotary machine
    Large motor
    Medium motor
    Compressor motor
    General Motors
    Small precision motor
    Motor for electric vehicle
    The ImmobilizerHigh frequency working motor
    Miniature power supply transformer
    Instrument use transformer
    Reactor
    Welding machine use transformer
    Power switch
    Manostat
    Magnetic sealing unit
    Electromagnet for accelerator

    Production Line


    Manufacturing Process


    Transport And Packaging

    Guide For Ordering Products

    Q1: How can I buy products in my country?
    A1: Please send us an inquiry or e-mail, we will reply to you and send you a trade assurance order if you need.

    Q2: How long does it take to get the product if I place an order
    A2: A: For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.

    Q3: How to make payment?
    A3: First send us an inquiry, and we will reply with our quotation. If our price suits you, we will prepare proforma invoice with our banking detail.

    Q4: Can you do customization & reproduction if I provide a photo?
    A4: Yes

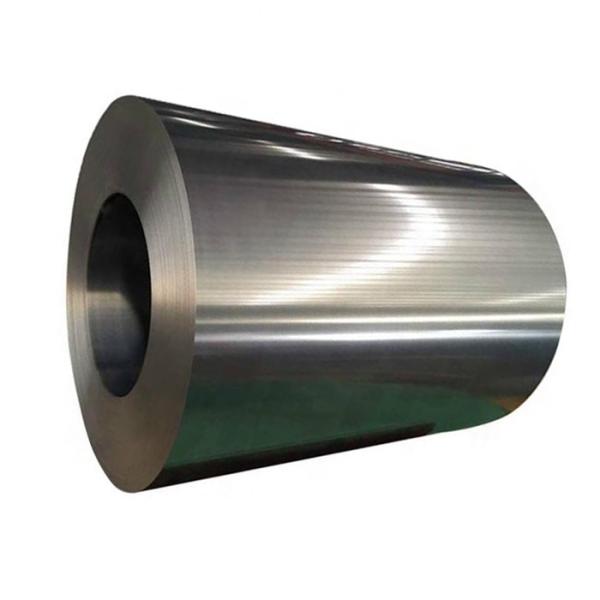

    Quality Non-Grain Oriented Electrical M600 Silicon Steel Coil for sale
