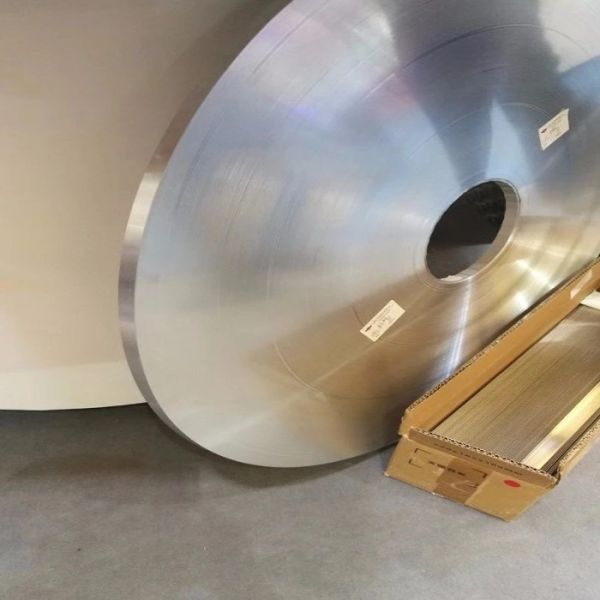

0.032inch 3003 Aluminum Alloy Metal Sheet Strip

    Buy cheap 0.032inch 3003 Aluminum Alloy Metal Sheet Strip from wholesalers

    Buy cheap 0.032inch 3003 Aluminum Alloy Metal Sheet Strip from wholesalers
    • Buy cheap 0.032inch 3003 Aluminum Alloy Metal Sheet Strip from wholesalers
    • Buy cheap 0.032inch 3003 Aluminum Alloy Metal Sheet Strip from wholesalers
    • Buy cheap 0.032inch 3003 Aluminum Alloy Metal Sheet Strip from wholesalers
    • Buy cheap 0.032inch 3003 Aluminum Alloy Metal Sheet Strip from wholesalers

    0.032inch 3003 Aluminum Alloy Metal Sheet Strip

    Ask Lasest Price
    Brand Name : DZSICO
    Model Number : 5005, 5052, 5083, 5754
    Certification : SGS, ISO9001:2008
    Price : $2,980.00 - $3,600.00 / Ton
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 Ton/tons Per Month 3003 Aluminum Strips
    Delivery Time : 1-10T - 7Days, 11-25T - 10Days, 26-100 - 10Days, > 100-To be negotiated
    • Product Details
    • Company Profile

    0.032inch 3003 Aluminum Alloy Metal Sheet Strip

    Price Of Aa 3003 Aluminum Alloy Metal Sheet Strip, 0.032 Thick Or Gauge

    Aluminum alloy 3003 contains about 1.25% manganese and 0.1% copper, which increase the strength approximately 20% above the 1000 series aluminum grades. this is often the foremost widely used of all aluminum alloys and it's all the superb characteristics of alloy 1100 with higher strength. it's a medium strength alloy that's hardenable only by cold work and isn't heat treatable. it's good weldability, formability and corrosion resistance.

    Typical applications include general sheet work requiring greater strength than is provided by 1000 series aluminum alloys, profiled building sheet (roofing and siding), insulation panels, food and chemical handling equipment.

    3003 aluminum specifications

    Thickness (inch)Yield Strength Min. (ksi)Tensile Strength (ksi)Elongation (%)
    Min.
    Bend Diameter Factor,N
    Min.Max.
    0.006 – 0.0195.014.019.0140
    0.008 – 0.0125.014.019.0180
    0.013 – 0.0315.014.019.0200
    0.032 – 0.0505.014.019.0230
    0.051 – 0.2495.014.019.0250
    0.250 – 3.005.014.019.023-
    Thickness (inch)Yield Strength Min. (ksi)Tensile Strength (ksi)Elongation (%)
    Min.
    Bend Diameter Factor,N
    Min.Max.
    0.017 – 0.01912.017.023.030
    0.020 – 0.03112.017.023.040
    0.032 – 0.05012.017.023.050
    0.051 – 0.11312.017.023.060
    0.114 – 0.16112.017.023.070
    0.162 - 0.24912.017.023.080
    0.250 – 0.49912.017.023.09-
    0.500 – 2.00012.017.023.010-
    Thickness (inch)Yield Strength Min. (ksi)Tensile Strength (ksi)Elongation (%)
    Min.
    Bend Diameter Factor,N
    Min.Max.
    0.009 – 0.01217.020.026.010
    0.013 – 0.01917.020.026.020
    0.020 – 0.03117.020.026.030
    0.032 – 0.05017.020.026.040
    0.051 – 0.11317.020.026.050
    0.114 – 0.16117.020.026.062
    0.162 – 0.24917.020.026.072
    0.250 – 0.49917.020.026.08-
    0.500 – 1.00017.020.026.010-
    3003 aluminum properties
    Property3003 Data
    Density, lb/in30.099
    Modulus of Elasticity, psi10.0 x 106
    Coefficient of Thermal Expansion, 68-212˚F, /˚F12.9 x 10-6
    Thermal Conductivity, Btu/ft hr ˚F112
    Specific Heat, Btu/lb ˚F0.213
    Electrical Resistivity, Microohm-in1.374

    Packaging & Delivery

    1. 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High),20-25 Metric ton
    2. 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High),20-25 Metric ton
    3. 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High),20-25 Metric ton
    4. export standard package,waterproof , moisture resistant
    Q Introduce our company :
    AShandong zhongcansteel new material co.,ltd. is located in Taian city,shandong province,if you are interested,welcome to visit our fatory.
    Q Size we can do:
    A Cold rolled steel coil: 0.12-2.0mm*Width*Coil
    Cold rolled steel sheet: 0.12-2.0mm*Width*Length
    Q We can send you samples before order:
    AYes, we can send you samples for free,And we are confident you like it.
    Q Delivery terms :
    A EXW, FOB (Qingdao or Xingang) or CIF your discharge port.
    Q Delivery time?
    A Color steel coil/ sheet: usually about 30 days and for some sizes,about 30days.
