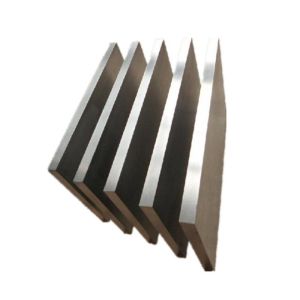

Astm B265 Commercially Pure Titanium Grade 1 Plate Coil

    Buy cheap Astm B265 Commercially Pure Titanium Grade 1 Plate Coil from wholesalers

    Buy cheap Astm B265 Commercially Pure Titanium Grade 1 Plate Coil from wholesalers
    • Buy cheap Astm B265 Commercially Pure Titanium Grade 1 Plate Coil from wholesalers
    • Buy cheap Astm B265 Commercially Pure Titanium Grade 1 Plate Coil from wholesalers
    • Buy cheap Astm B265 Commercially Pure Titanium Grade 1 Plate Coil from wholesalers
    • Buy cheap Astm B265 Commercially Pure Titanium Grade 1 Plate Coil from wholesalers
    • Buy cheap Astm B265 Commercially Pure Titanium Grade 1 Plate Coil from wholesalers

    Astm B265 Commercially Pure Titanium Grade 1 Plate Coil

    Ask Lasest Price
    Brand Name : DZSICO
    Model Number : Astm B265 Titanium Grade 1
    Certification : ISO 9001:2008, SGS
    Price : $13.00 - $25.00 / Kilogram
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Piece/Pieces per Month Astm B265 Titanium Grade 1 Plate Coils
    Delivery Time : 25 Days
    • Product Details
    • Company Profile

    Astm B265 Commercially Pure Titanium Grade 1 Plate Coil

    Astm B265 Commercially Pure Titanium Grade 1 Plate Coil

    # Titanium grade 1 Properties

    Commercially Pure Titanium Grade 1 is one of the softest and most ductile grades exhibiting the greatest formability. This unalloyed titanium has excellent corrosion resistance property, excellent weldability and is used in a wide variety of applications. This grade material is mainly used in marine and chemical industries where the parts are subjected to very harsh environments. This material is also used for fabricating anodes for cathodic protection applications.


    # Titanium grade 1 Standard Stock Specifications

    ► ASTM B265 ► ASTM F67


    # Titanium grade 1 Additional Properties

    Corrosion Resistance Of Grade 1 Titanium


    # Titanium grade 1 Finishes

    • 1 - Hot rolled annealed and descaled. It is available in strip, foil and ribbon. It is used for applications where a smooth decorative finish is not required.
    • 2D - Dull finish produced by cold rolling, annealing and descaling. Used for deep drawn parts and those parts that need to retain lubricants in the forming process.
    • 2B - Smooth finish produced by cold rolling, annealing and descaling. A light cold rolling pass is added after anneal with polished rolls giving it a brighter finish than 2D.
    • BA - Bright annealed cold rolled and bright annealed
    • CBA - Course bright annealed cold rolled matte finish and bright anneal
    • 2 - Cold Rolled
    • 2BA- Smooth finish produced by cold rolling and bright annealing. A light pass using highly polished rolls produces a glossy finish. A 2BA finish may be used for lightly formed applications where a glossy finish is desired in the formed part.

    Polished - Various grit finish for specific polish finished requirements.


    # Titanium grade 1 Wire Finishes

    XC - Extra clean. Bright annealed or bright annealed and cold rolled Grease - Ultra bright finish for decorative applications
    Soap - Soap is not removed from tempered wire to act as a lubricant. * Contact Ulbrich Wire for custom finishes.

    # Titanium grade 1 Heat Treatment

    Titanium Grade 1 can only be hardened by cold work.

    WELDING TITANIUM: GRADE 1

    APPLICATIONS

    • Bellows
    • aircraft structural honeycomb
    • gaskets
    • aircraft skin
    • heat exchanger parts
    • deep drawing applications
    • implantable battery cases/shields for CRM and Neurostimulation devices
    • implantable battery cathodes/connectors
    • stamped or etched fabrications

    CHEMISTRY TYPICAL

    Titanium: Balance
    Iron: 0.20 max
    Oxygen: 0.18 max
    Carbon: 0.08 max
    Nitrogen: 0.03 max
    Hydrogen: 0.015 max
    Residuals each 0.10 max, total 0.40 max

    PHYSICAL PROPERTIES OF GRADE 1 TITANIUM

    Density: 0.163 lbs/in3 , 4.51 g/cm3
    Mean Coefficient of Thermal Expansion, in/in/° F (mm/m/° C):
    70 - 212 ° F (20 - 100 ° C): 4.78 x 10-5 (8.6)
    Thermal Conductivity: BTU-in/h-ft-° F (W/m-° K):
    At 70 ° F (21 °C): 111 (16)
    Modulus of Elasticity, ksi (MPa): 15.2 x 103 (105 x 103) in tension
    Melting Point: 3040 ° F (1670 ° C)


    COMMON TITANIUM GRADE NAMES

    NameCodeDescription 1Description 2ASTMAMSUNS
    Grade 1 TitaniumTI35AUnalloyed TitaniumCommercially Pure TitaniumB-265, F-67R50250

    FORMS

    Coil - Strip, Foil, Ribbon
    Wire - Profile, Round, Flat, Square

    MECHANICAL PROPERTIES OF GRADE 1 TITANIUM AT ROOM TEMPERATURE

    PROPERTIES ANNEALED:

    Ultimate Tensile Strength: 35 KSI min (240 MPa min )
    Yield Strength (0.2% offset): 25 - 45 KSI (170 - 310 MPa )
    Elongation: 24%

    PROPERTIES: TEMPERED

    Titanium Grade 1 can be cold rolled to various tempers. Contact Ulbrich Technical Service for additional information.


    FAQ

    Q1.--How can you ensure the product quality?

    --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard).

    --We make 100% inspection before shipment.

    -- Company certificate:ISO 9001:2008 ;products certificate:EN10204/3.1

    Q2.--Can you print our LOGO on the products?

    --Sure, and we welcome the customerized products.

    Q3.--Can we get the free sample?

    --Sure.

    Q4.--What about the payment terms?

    --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
