Wellhead Handling AAX Manual Tongs With Tong Inserts And Dies

Ask Lasest Price
Brand Name :
Model Number :	Manual Tongs Type DB,B,LF,SB,SDD,LF,C,WWC,WWB,AAX
Certification :	API 7K
Price :	USD900-2500/piece
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	100 pairs per month
Delivery Time :	15-30 days

Add to Cart

Product Details
Company Profile

Wellhead Handling AAX Manual Tongs With Tong Inserts And Dies

API 7K Wellhead Handling Tool Type AAX Manual Tongs With Tong Inserts And Dies

Description of Manual Tongs:

API 7K Wellhead Handling Tool Type AAX Manual Tongs With Tong Inserts And Dies

The API 7K wellhead tool type AAX Manual Tongs are designed and manufactured according to API Spec 7k Specification. Manual Tongs / Elevator Links/Elevator" which is a useful tool applied ton, make up and break out drill pipes, coupling hoop of the drill pipe, joint, casings, casing hoops etc. When raise drill tool up and fall it down. Changing lug jaws and handling shoulders or hole can adjust the handling size of the tongs. According to the requirements of the usage different torque's tongs can be chosen.

Main Features

Type AAX manual tong
1.The type AAX manual tongs is an essential tool in oil drilling operation to fasten or remove the screws of drill pipe and casing joint or coupling.
2.Type AAX manual tongs can be adjusted by changing latch lug jaws.
3.Type AAX Manual tongs are designed and manufactured in accordance with the API Spec 7K Specification for Drilling and Well Serving Equipment.

Type AAX Manual Tongs

No. of Latch Lug Jaw	Size Range		Rated Torque(KN.M)
1#	2-7/8" ~ 3-3/4"	73 ~ 95.25mm	75
2#	3-1/2" ~ 4-1/2"	88.9 ~ 114.3mm
3#	4" ~ 5-1/4"	101.6 ~ 133.35mm
4#	5" ~ 7-1/4"	127 ~ 184.15mm
5#	6-7/8" ~ 8-5/8"	174.6 ~ 219.1mm
6#	9" ~ 10-3/4"	228.6 ~ 273.05mm	40
7#	10-3/4" ~ 11-3/4"	273.05 ~ 298.45mm
8#	13-3/8"	339.7

Type C Manual Tongs
No. of Latch Lug Jaws	Short Jaw	Hinge Jaw	Handling O.D		Rated Torque
No. of Latch Lug Jaws	Short Jaw	Hinge Jaw	(mm)	(in)	KN•m
1#	2 3/8-7	-	60-93	2 3/8-3.668	48
2#			73-108	2 7/8-4 1/4
3#			89-133	3 1/2-5 1/4
4#			133-178	5 1/4-7
5#	7 3/8-10 3/4	7-8 5/8	178-219	7-8 5/8
6#	7 3/8-10 3/4	9 5/8-10 3/4	244-273	9 5/8-10 3/4

Products Show:

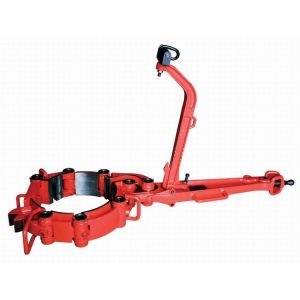

API 7K Wellhead Handling Tool Type AAX Manual Tongs With Tong Inserts And Dies

Package & Shipping:

Export wooden case for the shipment of API 7K Wellhead Handling Tool Type AAX Manual Tongs With Tong Inserts And Dies

Any enquiry please contact us by email: christal@oilmancn.com.

Visit our website: www.oilmanchina.com for more products information.

WhatsApp/WeChat:+86 13475294399
