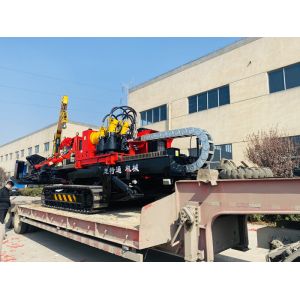

ISO9001 Steton Cummins 264kw Engine Pipeline HDD No Dig Equipment

Name: ISO9001 Steton Cummins 264kw Engine Pipeline HDD No Dig Equipment
Brand: STETON
Price: 1 USD

Add to Cart

HDD Machine Horizontal Drilling Machine S600 / 1200 Electric Design High Efficiency

HDD Machine KEY point:

Mini machine Body, Larger Power, Good at woking in the City

Fast travelling and tracking speed;

Powerfull.

Operating room with air conditation, more confortable for operator.

HDD Machine Features:

Equipped with Cummins 264kw engine, large power, stable performance, lower fuel consumption, lower noise, more suitable working in pipeline.
Power head thrust use GERMANY MOTOR and rotation use France Polcan motor, with large torsion, stable performance. Rotation have two speed , drilling faster and more torque; Thrust have 3 speed, let the work finished more faster.
American style surface, looks so powerful.
Electric design is reasonable with low failure rate, which is easy to maintain.
Equipped with φ89×3000mm drill rods, the machine can be used in medium field area, meeting the requirement for high efficiency construction in small place.
Main hydraulic components are from the international first-class hydraulic component manufacturer, which greatly improve the reliability of the product performance and safety.
Steel track with rubber plate can be loaded heavily and walks on all kinds of roads as well

HDD Machine Specifications:

Engine Power	KW	194
Max Thrust force	KN	600/1200
Max Pullback force	KN	600/1200
Max Torque	N.M	25000
Max Rotary speed	Rpm	150
Max carriage speed	m/min	40
Max Mud pump flow	L/min	600
Max Mud pressure	Mpa	8±0.5
Main machine size	mm	8100x2300x2300
Weight	T	15
Diameter of drilling rod	mm	φ89
Length of drilling rod	m	3
Max diameter of pullback pipe	mm	φ300 - φ1200
Max construction length	m	1200
Incidence Angle	°	11～20
Climbing angle	°	15

Product Tags:

HDD no dig equipment
