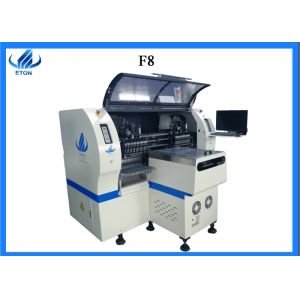

    pick and place machine for LED display,smt pick and place ,automatic pick and place,magnetic linear moto machine,

    Ask Lasest Price
    Brand Name : eton
    Model Number : ht-f8
    Certification : ccc,ce,sira
    Price : $70,000.00/unit
    Payment Terms : L/C, T/T
    Supply Ability : 80 units per months
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    pick and place machine for LED display,smt pick and place ,automatic pick and place,magnetic linear moto machine,

    1.product details

    Components: LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

    Application:LED display


    2.product Technical parameters​ of high speed pick and place machine

    Model numberHT-F8
    Dimension1600*1900*1550mm
    PCB size80*110~345*600mm
    PCB thickness0.5~5mm
    mounting modegroup to take and group to mount
    systemwindows 7
    displayLED monitor
    input devicekeyboard,mouse
    NO.of camera5 sets of imported camera
    mounting precision±0.02mm
    mounting height<15mm
    mounting speed150000CPH
    components space0.2mm
    NO.of feedings station32pcs
    NO.of nozzles32pcs
    power220AC 50HZ
    power consumption5KW
    operating environment23℃±3℃
    conveyor transmissionMAX length:1200mm
    transmission speed>500mm/sec
    transmission directionsingle(left→right,right→left)
    transmission modeAuto online drive
    position modeoptical
    air pressure>5.0kg/c㎡
    electrical controlindependent research and development by ETON
    motion control card module 1setindependent research and development by ETON
    X.Y axis drive wayservo motor
    feeding wayelectric feeder with double motor


    2.product features of smt pick and place machine

    • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
    • Install 5 camera and adopt vision for the flight identification, mark correction.
    • PCB clamping is electric clamping+adjustable pressure pneumatic.
    • Vision for the flight identification ,mark correction.
    • Electronic feeder feeding system.
    • Non-stop material re-loading function.
    • Auto-optimization after coordinates generated.


    2Packing & shipping of smt mounter machine

    Packaging materialsWaterproof material and wooden case
    Lead timeDelivery within 30 days after receipt of payment..
    portShenzhen
    Delivery timeTransshipment and partial shipment according to the contract


    6.Company profile




    7.Our clients


    8.FAQ



    • SMT the Future Development Trend of Patch Processing Industry

    Three foundations

    • Cost base: reduce the cost, now whether it is SMT patch processing or other industries, the lower the cost represents the higher the profit, the more competitive advantage in the market, which will have a positive impact on the aggregation, allocation, supply and demand connection, customer experience, subject synergy.
    • High efficiency: process design and dynamic adjustment is very important to the management mode of factory production, and equipment automation and management rationalization and software humanization are important factors of high efficiency.
    • Good quality: reasonable process, complete system, mature process, advanced equipment, management innovation is the basis of quality assurance.

    Four Low Four High

    Four low: low transaction cost, low difficulty in business negotiation, low threshold of order quantity, low unit price.

    Four high: high degree of automation, high efficiency of software output, high ability of data analysis, high yield of products.


    Five Drivers

    • Hardware drive: innovation and progress of equipment automation, robot flexibility upgrade and wide application, and robot intelligence is getting higher and higher, even robot can participate in factory management, combined with intelligent equipment, self-drive.
    • Software driver :" Internet + Internet of things + large data + cloud computing "connected to each other, mutual transmission, mutual reinforcement between applications drive.
    • Platform driver: social resources with the help of the Internet to build a platform to solve information asymmetry, achieve resource agglomeration, and idle resources turned into treasure, to provide support for the sharing economy, such as: papaya patch, Didi car, sharing bicycle, sharing car and other public technology service platform.
    • Data driven: the first is information, data, get a lot of information from partners; the second is statistical, structured, match customer needs with supplier delivery; the third is forecast, intelligent, according to demand production, reduce inventory backlog.
    • Value driven: idle resources, excess capacity can be valued by creating value, cognitive surplus, leisure time can be valued, the connection itself has value, can make idle resources more meaningful.

    Focusing on the current trend of manufacturing industry, the future SMT patch processing industry must be Internet platform, on the basis of Internet information technology, through resource sharing, value sharing, economic sharing, model sharing to achieve everyone zero-cost entrepreneurship, more work and more gain, and partner mechanism, through the everyone sharing model to further create wealth, truly realize the new era of mass entrepreneurship, innovation.
