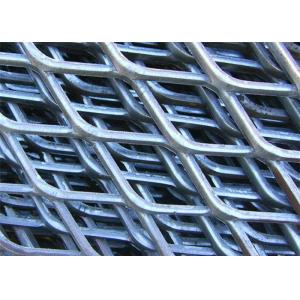

Hot Dipped Galvanized Expanded Metal Sheet Q195 Steel For Security
Expanded Metal Sheet Description
Expanded Metal is used widely throughout the transportation
industry, agriculture, security, machine guards, floorings,
construction, architecture and interior design. The use of this
kind of expanded metal mesh is highly beneficial, and of cost
saving and low maintenance.
We manufacture a full range of standard and flattened expanded
metal, structural grating, micro mesh and decorative patterns. Raw
material can be produced in carbon, galvanized, stainless steel or
high strength alloy steel. Certain alloys of copper, brass, bronze
and plastics can be expanded as well.
Expanded Metal Sheet Specification
Sheet Thickness
(mm) | SWG
(mm) | LWG
(mm) | Strand Width
(mm) | Width
(m) | Length
(m) | Weight
(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
Expanded Metal Sheet Feature
1.Continuity--the mesh is formed from a single piece of metal.
2.Environment friendly--no wasteful of material.
3.High strength--higher strength to weight ration then metal sheet.
4.Adherence--anti slip surface.
5.Good rigidity--premium reinforcement properties.
6.Good conductivity--highly efficient conductor.
7.Good resistance to corrosion.
Expanded Metal Sheet Application
1. Expanded metal wire mesh could be civil engineering, building
walls, crafts manufacturing, ships, highways, railways, bridges,
boilers and other platforms, pedals, and can also be used as
reinforcements for cement and light construction materials.
2. Heat dissipation hoods and mechanical transmission protective
covers for various vehicles, air compressors, etc., high-end audio
speaker mesh covers, filters, air-conditioning equipment, outdoor
furniture, mechanical equipment protection, highway guardrails,
railway guardrails, building decoration, platform walkways Non-slip
etc.
3. Fences for sports venues. Road green belt protection net,
municipal engineering protection net.
Expanded Metal Sheet Applications
