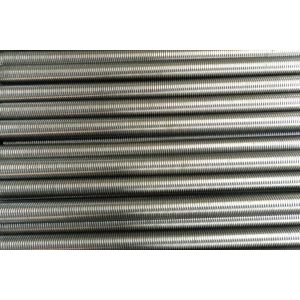

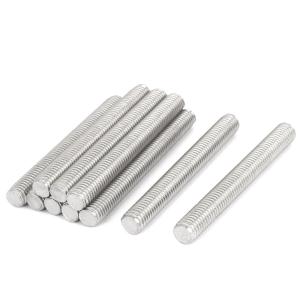

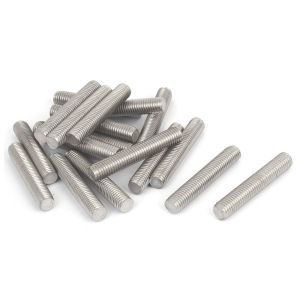

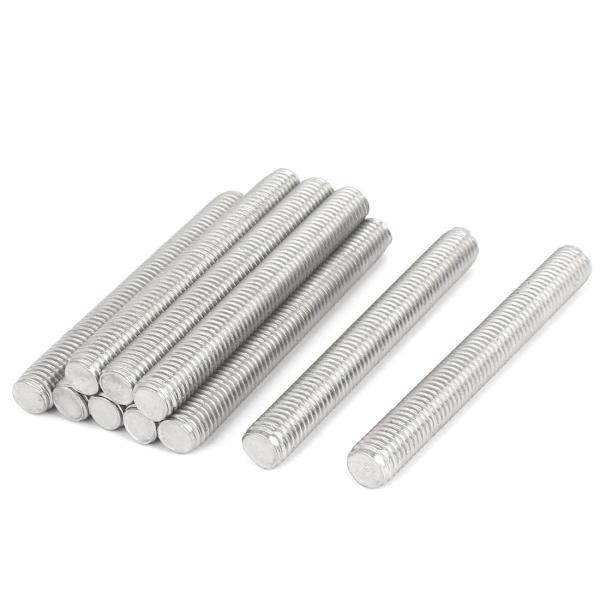

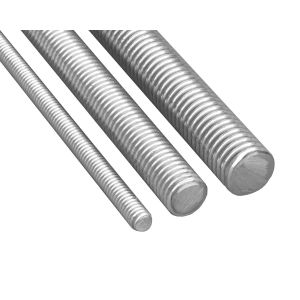

    ANSI Carbon Steel YZP ZP BLACK ASTM A449 Threaded Rod

    Ask Lasest Price
    Brand Name : QBH
    Model Number : 1/4--4inch
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T,OA
    Supply Ability : 600TON/MONTH
    Delivery Time : 30days
    • Product Details
    • Company Profile

    ANSI Carbon Steel YZP ZP BLACK ASTM A449 Threaded Rod

    Specification

    A threaded rod, also known as a stud, is a relatively long rod that is threaded on both ends; the thread may extend along the complete length of the rod. They are designed to be used in tension. Threaded rod in bar stock form is often called all-thread.

    All thread rod, commonly referred to as fully threaded rod, redi-rod, continuously threaded rod, TFL rod, and abbreviated ATR is used for general purpose fastening for anything from an anchor bolt to a through bolt. A variety of grades and materials are available.

    Screw Thread
    d
    1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8
    d
    PP UNC
    UNF
    8UN
    u max UNC
    UNF
    8UN
    0.2500 0.3125 0.3750 0.4375 0.5000 0.5625 0.6250 0.7500 0.8750 1.0000 1.1250 1.2500 1.3750
    20 18 16 14 13 12 11 10 9 8 7 7 6
    28 24 24 20 20 18 18 16 14 12 12 12 12
    - - - - - - - - - - 8 8 8
    0.100 0.111 0.125 0.143 0.154 0.167 0.182 0.200 0.222 0.250 0.286 0.286 0.333
    0.071 0.083 0.083 0.100 0.100 0.111 0.111 0.125 0.143 0.167 0.167 0.167 0.167
    - - - - - - - - - - 0.250 0.250 0.250
    Screw Thread
    d
    1-1/2 1-5/8 1-3/4 1-7/8 2 2-1/4 2-1/2 2-3/4 3 3-1/4 3-1/2 3-3/4 4
    d
    PP UNC
    UNF
    8UN
    u max UNC
    UNF
    8UN
    1.5000 1.6250 1.7500 1.8750 2.0000 2.2500 2.5000 2.7500 3.0000 3.2500 3.5000 3.7500 4.0000
    6 - 5 - 4-1/2 4-1/2 4 4 4 4 4 4 4
    12 - - - - - - - - - - - -
    8 8 8 8 8 8 8 8 8 8 8 8 8
    0.333 - 0.400 - 0.444 0.444 0.500 0.500 0.500 0.500 0.500 0.500 0.500
    0.167 - - - - - - - - - - - -
    0.250 0.250 0.250 0.250 0.250 0.250 0.250 0.250 0.250 0.250 0.250 0.250 0.250

    ASTM A449 covers headed bolts, rods, and anchor bolts in diameters ranging from 1/4″ through 3″ inclusive. It is a medium strength bolt manufactured from a medium carbon or alloy steel that develops its mechanical values through a heat treating process. It is intended for general engineering applications.

    ASTM A449 is virtually identical in chemistry and strength to ASTM A325 and SAE J429 grade 5. However, A449 is more flexible in the sense that it covers a larger diameter range and is not restricted by a specific configuration.

    A449 Types

    TYPE 1 Plain carbon steel, carbon boron steel, alloy steel, or alloy boron steel.
    TYPE 2 Withdrawn 2003
    TYPE 3 Weathering steel.

    A449 Mechanical Properties

    Size Tensile, ksi Yield, ksi Elong. %, min RA %, min
    14 - 1 120 min 92 min 14 35
    118 - 112 105 min 81 min 14 35
    158 - 3 90 min 58 min 14 35

    A449 Chemical Properties

    Type 1 Bolts
    Element Carbon Steel Carbon Boron Steel Alloy Steel Alloy Boron Steel
    Carbon 0.30 - 0.52% 0.30 - 0.52% 0.30 - 0.52% 0.30 - 0.52%
    Manganese, min 0.60% 0.60% 0.60% 0.60%
    Phosphorus, max 0.040% 0.040% 0.035% 0.035%
    Sulfur, max 0.050% 0.050% 0.040% 0.040%
    Silicon 0.15-0.30% 0.10 - 0.30% 0.15 - 0.35% 0.15 - 0.35%
    Boron 0.0005 - 0.003% 0.0005 - 0.003%
    Alloying Elements * *
    * Steel, as defined by the American Iron and Steel Institute, shall be considered to be alloy when the maximum range given for the content of alloying elements exceeds one of more of the following limits: Manganese, 1.65%, silicon, 0.60%, copper, 0.60%, or in which a definite range or a minimum quantity of any of the following elements is specified or required within the limits of the recognized field of constructional alloy steels: aluminum, chromium up to 3.99%, cobalt, columbium, molybdenum, nickel, titanium, tungsten, vanadium, zirconium or any other alloying elements added to obtain a desired alloying effect.
    Type 3 Bolts, Class *
    Element A B C D E F
    Carbon 0.33 - 0.40% 0.38 - 0.48% 0.15 - 0.25% 0.15 - 0.25% 0.20 - 0.25% 0.20 - 0.25%
    Manganese 0.90 - 1.20% 0.70 - 0.90% 0.80 - 1.35% 0.40 - 1.20% 0.60 - 1.00% 0.90 - 1.20%
    Phosphorus 0.035% max 0.06 - 0.12% 0.035% max 0.035% max 0.035% 0.035%
    Sulfur, max 0.040% 0.040% 0.040% 0.040% 0.040% 0.040%
    Silicon 0.15 - 0.35% 0.30 - 0.50% 0.15 - 0.35% 0.25 - 0.50% 0.15 - 0.35% 0.15 - 0.35%
    Copper 0.25 - 0.45% 0.20 - 0.40% 0.20 - 0.50% 0.30 - 0.50% 0.30 - 0.60% 0.20 - 0.40%
    Nickel 0.25 - 0.45% 0.50 - 0.80% 0.25 - 0.50% 0.50 - 0.80% 0.30 - 0.60% 0.20 - 0.40%
    Chromium 0.45 - 0.65% 0.50 - 0.75% 0.30 - 0.50% 0.50 - 1.00% 0.60 - 0.90% 0.45 - 0.65%
    Vanadium 0.020% min
    Molybdenum 0.06% max 0.10% max
    Titanium 0.05% max
    * Selection of a class shall be at the option of the manufacturer

    A449 Recommended Hardware

    Nuts Washers
    Plain Galvanized
    1/4 - 1-1/2 1-5/8 - 3 1/4 - 3
    A563B Hex A563A Heavy Hex A563DH Heavy Hex F436
    Note: Nuts of other grades having proof load stresses greater than the specified grade are suitable. The ASTM A563 Nut Compatibility Chart has a complete list of specifications.

    Materials and Chemical compstition

    1008

    CHEMICAL COMPOSI %
    C Si Mn P S Cr Ni Cu Al
    0.06 0.06 0.33 0.013 0.003 0.01 0 0.01 0.028

    1035

    CHEMICAL COMPOSI %
    C Si Mn P S Cr Ni Cu
    0.34 0.13 0.73 0.012 0.002 0.02 0.01 0.02

    10B21

    CHEMICAL COMPOSI %
    C Si Mn P S Cr B
    0.2 0.04 0.81 0.017 0.007 0.017 0.0021

    1045

    CHEMICAL COMPOSI %
    C Si Mn P S Cr Ni Cu
    0.45 0.23 0.58 0.014 0.006 0.057 0.008 0.016

    40CR

    CHEMICAL COMPOSI %
    C Si Mn P S Cr Ni Cu
    0.4 0.21 0.54 0.015 0.008 0.95 0.02 0.02

    35CRMO

    CHEMICAL COMPOSI %
    C Si Mn P S Cr Ni Cu Mo
    0.35 0.22 0.59 0.01 0.003 0.93 0.01 0.01 0.21

    42CRMO

    CHEMICAL COMPOSI %
    C Si Mn P S Cr Ni Cu Mo
    0.42 0.27 0.92 0.013 0.004 1.01 0.03 0.04 0.2

    stainless steel

      化学成分CHEMICAL COMPOSI(% )
    Type C碳 Si硅 Mn锰 P磷 S硫 Ni镍 Cr铬 Mo钼 Cu铜 Others

    201Cu 0.08 1.00 7.5-10 0.06 0.03 4.00-6.00 14.0-17.0   2.0-3.0
    201 0.15 1.00 8.50 0.06 0.03 3.50-5.50 16.0-18.0     N≤0.25
    130M/202 0.15 1.00 7.5-10 0.06 0.03 4.00-6.00 17.0-19.0     N≤0.25
    202 0.15 1.00 7.5-10 0.06 0.03 4.00-6.00 17.0-19.0
    301 0.15 1.00 2.00 0.045 0.03 5.00-8.00 16.0-18.0
    302 0.15 1.00 2.00 0.045 0.03 8.00-10.0 17.0-19.0
    XM7
    (302HQ)
    0.08 1.00 2.00 0.045 0.03 8.50-10.5 17.0-9.00   3.0-4.0
    303 0.15 1.00 2.00 0.20 ≥0.15 8.00-10.0 17.0-19.0 ≤0.60
    303Cu 0.15 1.00 3.00 0.20 ≥0.15 8.0-10.0 17.0-19.0 ≤0.60 1.5-3.5
    304 0.08 1.00 2.00 0.045 0.03 8.00-10.0 18.0-20.0
    304H 0.08 1.00 2.00 0.045 0.03 8.0-10.0 18.0-20.0
    304HC 0.08 1.00 2.00 0.045 0.03 8.00-10.0 17.0-19.0   2.0-3.0
    304HCM 0.08 1.00 2.00 0.045 0.03 8.0-10.0 17.0-19.0   2.5-4.0
    304L 0.03 1.00 2.00 0.045 0.03 9.0-13.0 18.0-20.0
    304M 0.06 1.00 2.00 0.045 0.03 8.50-10.0 18.0-20.0
    305 0.12 1.00 2.00 0.045 0.03 10.5-13.0 17.0-19.0
    305J1 0.08 1.00 2.00 0.045 0.03 11.0-13.5 16.5-19.0
    309S 0.08 1.00 2.00 0.045 0.03 12.0-15.0 22.0-14.0
    310S 0.08 1.50 2.00 0.045 0.03 19.0-22.0 24.0-26.0
    314 0.25 15.-3.0 2.00 0.040 0.03 19.0--22.0 24.0-26.0
    316 0.08 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0
    316Cu 0.03 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0 2.0-3.0
    316L
    (12Ni)
    0.03 1.00 2.00 0.045 0.03 12.0-15.0 16.0-18.0 2.0-3.0
    316L
    (10Ni)
    0.03 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0
    321 0.08 1.00 2.00 0.045 0.03 9.00-13.0 17.0-19.0   Ti≤5*C%
    410 0.15   1.00   0.03   11.5-13.5
    416 0.15   1.25   ≥0.15   12.0-14.0
    420 0.26-0.4   1.00   0.03   12.0-14.0
    410L 0.30 1.00 1.00 0.040 0.03   11.5-13.5
    430 0.12 0.75 1.00 0.040 0.03   16.0-18.0
    430F 0.12 1.00 1.25 0.060 0.15   16.0-18.0
    631(J1) 0.09 1.00 1.00 0.040 0.03 6.50-8.50 16.0-18.0     AL 0.75-1.5
    2520 0.08 1.00 2.00 0.035 0.03 19.0-22.0 24.0-26.0
    410 0.015 1.00 1.00 0.04 0.03   11.5-13.5

    Finish

    PLAIN ZP YZP BLACK HDG DACROMET GEOMET CHROME NICKEL AND SO ON

    PACKING

    QBH BULK

    20-25KG/CTN,36CTNS/PALLET

    20-30KG/BAGS,36BAGS/PALLET

    ONE TON/BOXES

    50KG/ IRON DRUM,12 IRON DRUMS/PALLET

    QBH SMALL PACKING

    Packing in small boxes according to customer’s requirements

    Packing in plastic bag according to customer’s requirements

    QBH PALLET TYPE

    SOLID WOOD FUMIGATION PALLET

    EURO Pallet

    THREE SPLINT PALLET

    WOODEN BOX

    The advantages of QBH

    • QBH brand sales to the main quality assurance.
    • Years of export trade management, excellent service, word-of-mouth guarantee.
    • By working with TUV,escort for quality.
    • Customization of non-standard parts can be made according to customer's requirements and drawings.
    • For quality customers,we can provide a certain credit period.
