Fireproof PVC Jacket LSZH N2XH XLPE Insulated Power Cable

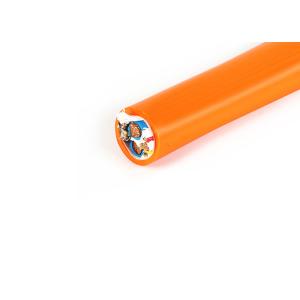

    Buy cheap Fireproof PVC Jacket LSZH N2XH XLPE Insulated Power Cable from wholesalers

    Buy cheap Fireproof PVC Jacket LSZH N2XH XLPE Insulated Power Cable from wholesalers
    • Buy cheap Fireproof PVC Jacket LSZH N2XH XLPE Insulated Power Cable from wholesalers

    Fireproof PVC Jacket LSZH N2XH XLPE Insulated Power Cable

    Ask Lasest Price
    Model Number : WDZ-RYY
    Brand Name : SHANCABLE
    Certification : ISO,CE,IEC,TUV,KEMA
    Price : Negotiable
    Delivery Time : 10 Days
    Payment Terms : L/C, T/T
    Supply Ability : 100KM/Week
    • Product Details
    • Company Profile

    Fireproof PVC Jacket LSZH N2XH XLPE Insulated Power Cable

    LSZH N2XH Flexible Copper Conductor XLPE Insulation Power Cable


    Construction

    Conductor : Flexible copper conductor, Class5

    as per IEC 60228

    Insulation : XLPE

    Sheath : LSZH

    Test Voltage :3.5KV/5mins


    Applications

    Fireproof N2XH power cables are mainly used in places that threaten human life or flammable materials, such as industry, public buildings, hotels, subways

    In systems, hospitals and other places, this cable can be installed in a dry or humid environment, but it is not suitable for direct burying in soil or water.


    Standards

    International: VDE 0276-604, VDE 0482-266-2, DIN EN 60332-3/EN50266-2

    China: GB/T 12706, GB/T 3956, GB/T 19666

    Other standards such as BS,DIN and ICEA upon request


    Technical data

    Rated voltage:0.6/1kV

    Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

    Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

    Min. Bending Radius: 20 x cable O.D for single core

    15 x cable O.D for multi core


    Certificates

    CE, RoHS, , KEMA and more others at request


    Commercial Items: MOQ: 200m

    Payment terms: 30% T/T before production, 70% T/T before delivery

    Packing : Wooden Iron drum


    Specifications

    Nom. Cross-section of conductorInsulation ThicknessSheath ThicknessApprox. O.D.Approx.WeightMax. D.C Resistance of Conductor (20 ℃)Testing Voltage A.CCurrent Rating
    mm2mmmm(mm)kg/kmΩ /kmkV/5minIn air (A)In soil(A)
    1 × 1.50.71.465313.33.52233
    1 × 2.50.71.46687.983.53143
    1 × 40.71.47874.953.54156
    1 × 60.71.471103.33.55270
    1 × 100.71.481551.913.57194
    1 × 160.71.492201.213.592120
    1 × 250.91.410.03450.783.5120155
    1 × 350.91.412.04240.5543.5150185
    1 × 501.01.413.05550.3863.5180220
    1 × 701.11.414.07700.2723.5230270
    1 × 951.11.516.010400.2063.5285320
    1 × 1201.21.518.012900.1613.5335365
    1 × 1501.41.620.015900.1293.5385410
    1 × 1851.61.622.019440.1063.5450465
    1 × 2401.71.725.025100.08013.5535540
    1 × 3001.81.827.030420.06413.5620610
    1 × 4002.01.931.038690.04863.5720695
    1 × 5002.22.135.049100.03843.5835780
    1 × 6302.42.240.062200.02873.5960880
    2 × 2.50.71.811.81517.983.52635
    2 × 40.71.812.71984.953.53445
    2 × 60.71.813.72503.33.54357
    2 × 100.71.815.03741.913.56077
    2 × 160.71.817.05181.213.583105
    2 × 250.91.820.07720.783.5105125
    2 × 350.91.822.010060.5543.5125155
    2 × 501.01.820.013650.3863.5160185
    2 × 701.11.821.018720.2723.5200225
    2 × 951.11.824.024750.2063.5245270
    2 × 1201.21.827.030890.1613.5285310
    2 × 1501.41.930.038340.1293.5325345
    3 × 1.50.71.410.014513.33.52027
    3 × 2.50.71.811.01857.983.52635
    3 × 40.71.812.02504.953.53445
    3 × 60.71.813.03203.33.54357
    3 × 100.71.816.04501.913.56077
    3 × 160.71.818.06401.213.583105
    3 × 250.91.821.09400.783.5105125
    3 × 350.91.823.012600.5543.5125155
    3 × 501.01.823.016700.3863.5160185
    3 × 701.11.826.022800.2723.5200225
    3 × 951.11.930.030200.2063.5245270
    3 × 1201.22.032.037900.1613.5285310
    3 × 1501.42.237.047500.1293.5325345
    3 × 1851.62.341.056540.1063.5375390
    3 × 2401.72.446.072430.08013.5440450
    3 × 3001.82.651.094650.06413.5505515
    3 × 4002.03.064.0120660.04863.5570575
    4 × 40.71.813.02534.953.53445
    4 × 60.71.814.03373.33.54357
    4 × 100.71.817.05011.913.56077
    4 × 160.71.820.07781.213.583105
    4 × 250.91.823.011600.783.5105125
    4 × 350.91.82515540.5543.5125155
    4 × 501.01.82321480.3863.5160185
    4 × 701.11.82729280.2723.5200225
    4 × 951.11.93138540.2063.5245270
    4 × 1201.22.03349250.1613.5285310
    4 × 1501.42.23862380.1293.5325345
    4 × 1851.62.34275620.1063.5375390
    4 × 2401.72.54798360.08013.5440450
    4 × 3001.82.652125500.06413.5505515
    4 × 4002.03.166159290.04863.5570575
    5 × 40.71.814.53494.953.53445
    5 × 60.71.815.84603.33.54357
    5× 100.71.819.06991.913.56077
    5 × 160.71.822.010131.213.583105

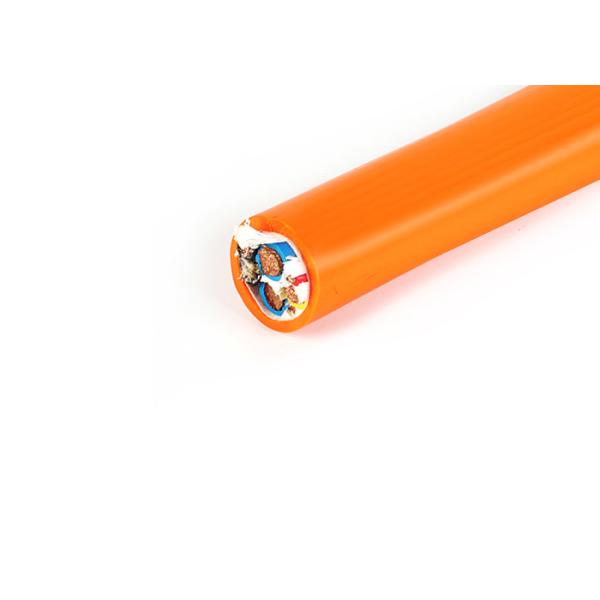

    Quality Fireproof PVC Jacket LSZH N2XH XLPE Insulated Power Cable for sale
