1760RPM 300GPM 3 Stages Vertical Turbine Fire Pump

NM Fire 1760 RPM 300 GPM Vertical Turbine Fire Pump Manufacturers

Configurations:

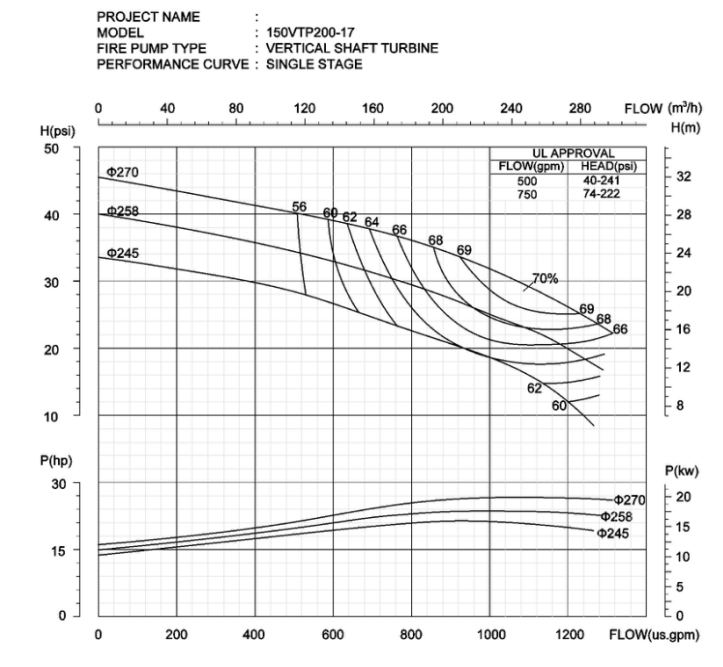

Pump Performance Curve

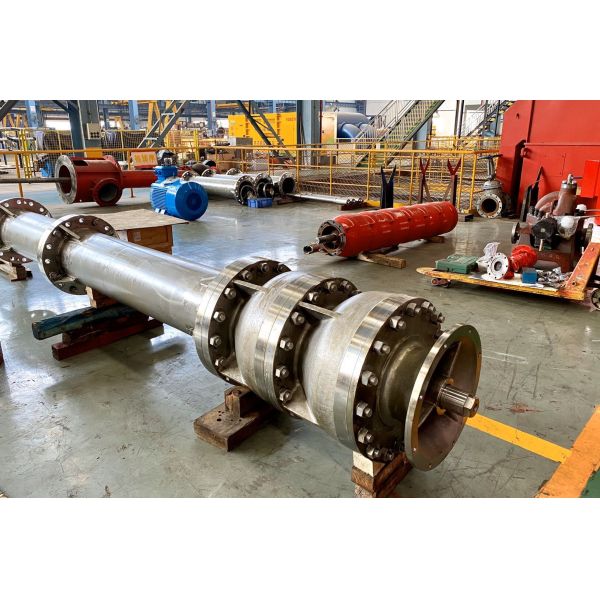

Multi-stage Vertical Turbine Pumps with bronze impellers and cast iron bowls. The line shaft turbine pumps have above-ground discharge with water-lubricated line shaft bearings. The column pipe coupling has bronze centering spiders with fluted-rubber line shaft bearings. The bowls are vitra-glass coated in the waterways for improved efficiencies. Capacities up to 10,000 GPM with heads to 150 feet per stage.

· Complete unit responsibility.

· Complete in-house fabrication capabilities.

· Hydrostatic strength testing facilities.

· Operation run test as per NFPA 20, UL 448 requirements.

· Vertical turbine models for capacities from 250 to 5000 US GPM.

· Drivers: diesel engine drive.

· Electrical testing capabilities for motors and controllers as per NFPA standards.

· Capable to supply additional accessories wherever required.

· Rugged construction for longer service life.

· Specifically designed for fire fighting applications as per NFPA 20.

· Excellent mechanical and hydraulic design characteristics for efficient performance.

Applications

Deep well, irrigation, sumps, condensate, can pump requirements, fire service, municipal, industrial

Advantage:

First-Class international technical standards.

CNP NM FIRE is the first member of NFPA from China pump's manufacturers.and won the UL,FM international fire certification for fire pump products.

First-Class testing and inspection equipment.

UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.

NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the strict requirements of UL certification.

Wuhan Spico Machinery & Electronics Co., Ltd.（Hereinafter referred to as SPICO） is the Wuhan

office of  CNP NM Fire-fighting System Co.,Ltd (Hereinafter referred to as NM Fire). SPICO mainly resp-

onsible for product promotion，export declaration and foreign exchange collection of overseas orders.NM

Fire  is the subsidiary of Nanfang Zhongjin Environment Co.,Ltd, which islocated in Hunan Changsha

Economic and Technological Development Zone, mainly produceand sell Diesel engine &Motor fire pump

groups ,controllers and fire pumps which are in accordance with domestic & international standards and have

gotten related certifications .

With the help of multi-national engineers with more than 20 years of professional experience, the NMFIRE

technical team fully understands the technical requirements of fire fighting systems. They have overcome

difficulties, conquered technical aspects, created China's first in this industry and opened up a new market

for China's fire fighting research andtechnology.

The company’s mission is to protect the community fire safety, in line with the spirits of “integrity,

win-win”,glad to provide high cost-effective products and high-quality service for our customers.

Fire fighting is the last protection for life and property. These include strict technical, quality and testing requirements

for fire fighting equipment that are specified in the UL/FM product standard.

Under the premise of fully learning and understanding these standards, our company has invested huge sums of money

and energy in research and development of new products. Many innovative technologies have been developed through

product R&D. The pumps and diesel engines have reached the level of first class in the world. The research and

development of these two critical products has put an end to the long history in the domestic marketplace of taking

non-certified ordinary water pumps and diesel engines and using them in life safety applications. This has also completely

changed the domestic technology level of this industry and has allowed NM FIRE to lead the market

Start by meeting the customer obvious needs, follow by continuously deepening and exploring potential customer demand,

meanwhile, plant the philosophy into our soul.
