Ultrasonic 0.001inch 1.5V Magnetic Paint Thickness Gauge

    Buy cheap Ultrasonic 0.001inch 1.5V Magnetic Paint Thickness Gauge from wholesalers

    Buy cheap Ultrasonic 0.001inch 1.5V Magnetic Paint Thickness Gauge from wholesalers
    • Buy cheap Ultrasonic 0.001inch 1.5V Magnetic Paint Thickness Gauge from wholesalers

    Ultrasonic 0.001inch 1.5V Magnetic Paint Thickness Gauge

    Ask Lasest Price
    Supply Ability : 50, 000PCS/Year
    Payment Terms : L/C, T/T, Western Union
    Price : negotiation
    Brand Name : L&D
    Model Number : TG-200
    Certification : CE
    • Product Details
    • Company Profile

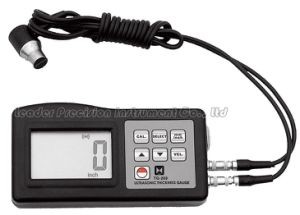

    Ultrasonic 0.001inch 1.5V Magnetic Paint Thickness Gauge


    The Standard delivery for this Ultrasonic Thickness Tester
    1) Main unit
    2) 5M diameter 8 probe
    3) Couplant
    4) 1.5V AAA Battery
    5) Carrying case


    Optional accessories
    1) 6M diameter 6mm thin Material probe:
    Measuring range(steel): 1.0~50.0mm, working temperature: -10~+60

    2) 5M diameter 12 high temperature probe:
    Measuring range (steel): 1.0~225.0mm (normal temperature)
    Measuring range(steel): 4.0~100.0mm (high temperature) working temperature: -10~+300

    3)Cable& software for RS232C interface



    Specification
    Operating principleUltrasonic
    Measuring range1.2-200mm/0.05-8inch for steel
    Test materialAny hard material such as steel, cast iron, aluminum, copper, brass, zinc, quartz glass, polyethylene, PVC, etc
    Sound velocity500-9000m/s(3281-32806ft/s)
    Resolution0.1mm/0.001inch
    Accuracy± (0.5%n+0.1)
    OutputRS232C
    Power supply4× 1.5V AAA batteries
    Dimension120*62*30
    Net Weight165g

    FQA:

    1- You it scan measure over the paint layers:
    a- What is max thickness of paint layer can be overcome ?
    Answer: Max.Thickness: 100μm

    b- What is the measure range on this case (Example: TG-200 can measure 1.2-200 mm on steel) what is the drop on range with over the paint?
    Answer: The paint have no effect on the measure range, just effect on the speed of

    2- The software screen shoot:
    a- Not showing the actual screen for data logger
    Answer: Pls check picture in attachment.

    b- Are the software can draw an curves for results ?
    Answer: Yes, click diagram, can draw an curves for results.

    c- Are the software can show the version of reading for one sample?
    Answer: The software can show the data and time for the measurement of one sample, can you explain "version" meaning?
