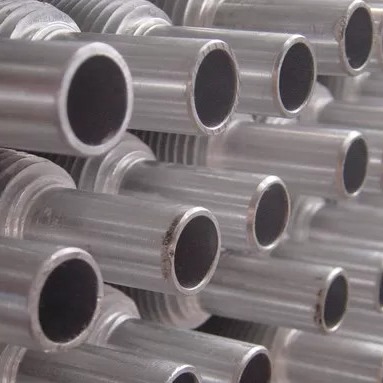

    DELLOK Seamless Densities Segment Fins Alu1050 Extruded Fin Tube

    Seamless Densities Segment Fins Alu1050 Extruded Fin Tube


    seamless cold finished mechanical extruded bimetallic finned tubes​

    We have fourteen extrusion fining lines, daily capacity around 15,000 meters, max. base tube OD 2''

    Detail:
    ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service
    ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes
    ASTM A179 / A179M : Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
    Tube Type: Seamless (Cold Drawn)
    Ends: Plain ends or bevel ends.
    Surface protection:black painting,anti-rust oil or varnish.


    Introduction:

    A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve. The fins are solid plain or serrated into 12, 16 or 24 segments or as your design. And both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle. All the goods shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating on surface. Besides, we provide Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).


    Applications:
    The common application fileds are:

    1. Heat exchangers units for power plant (electric, nuclear, thermal and geothermal power plants);

    2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);

    3. The petroleum, chemical and petrochemical industries;

    4. The food processing and refrigeration industries;

    5. Natural gas treatment;

    Product Details

    Tube details:

    Tube OD: 12mm min.~50.8mm(2'') max.

    Tube Length: 18 meters max.

    Fin Height: 16.5 mm max

    Fin Thickness: appr. 0.4mm/0.5mm/0.6mm

    Fin Pitch: 1.5mm min.

    Production Capacity:

    Daily capacity up to 3000 meters.

    Extruded fins type:

    solid plain and serrated.


    Specifications:

    Extruded Bimetallic Finned Tube is combined with two different materials.

    Items

    General Materials

    Popular ASTM Materials

    Core Tube Material

    Any metallic materials, as carbon steel, low-alloy steel,
    stainless steel, brass, copper,
    cooper-nickel alloys, aluminum bronze, nickel alloys etc.

    1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B
    2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,
    A789 S31803/S2205 etc...
    3. Copper:UNS12200/UNS14200/UNS70600,
    CuNi70/30,CuNi 90/10
    4. Titanium: B338 Gr 2

    Fins Material

    1. Aluminum Alloy
    2. Copper.

    1. Aluminum(Alu.1100,Alu.1060,Alu.6063)
    2. Copper.


    All dimensions are in Inches and specification upon your requests.

    Tube OD

    Fin Height

    Fin Thickness

    Fins per Pitch(Density)

    5/8

    3/8,1/2

    .015/.016/ .020

    4, 5, 6, 7, 8, 9, 10, 11, 12

    3/4

    3/8,1/2,5/8

    .015/.016/ .020

    4, 5, 6, 7, 8, 9, 10, 11, 12

    1

    3/8,1/2,5/8

    .015/.016/ .020

    4, 5, 6, 7, 8, 9, 10, 11

    1 1/4

    3/8,1/2,5/8

    .015/.016/ .020

    4, 5, 6, 7, 8, 9, 10,

    1 1/2

    3/8,1/2,5/8

    .015/.016/ .020

    4, 5, 6, 7, 8, 9, 10, 11

    1 3/4

    3/8,1/2,5/8

    .015/.016/ .020

    4, 5, 6, 7, 8, 9, 10

    2

    3/8,1/2,5/8

    .015/.016/ .020

    4, 5, 6, 7, 8, 9, 10

    Please email us for more information.
