Expand Thoroughfares And Road Lanes Surface High Strength Glass
Fiber Geogrid

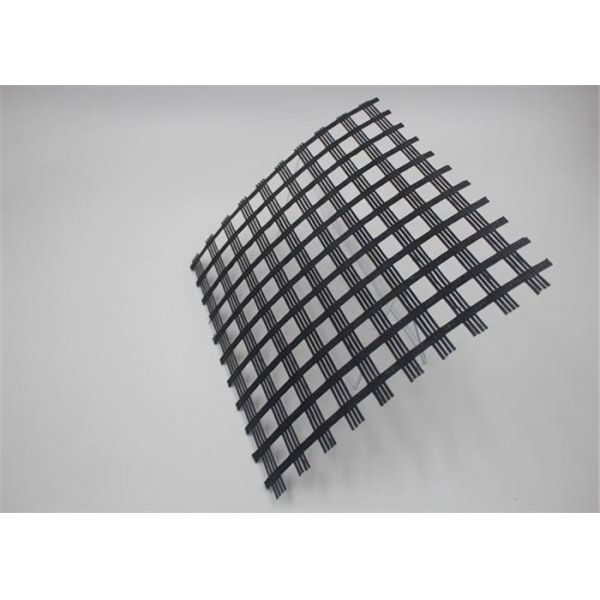

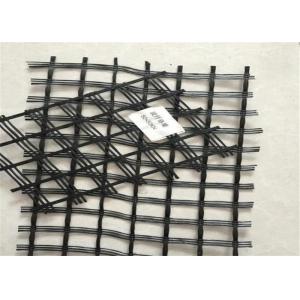

Glass Fiber Geogrid Introduction
Fiberglass geogrid is a kind of new geosynthetics for the
reinforcement of road surface and rodbed.This product is made of
fiberglass filament by woving machine imported abroad.After
coated,it has featurers of alkali-resistance.This geogrid is mainly
used in new road,soft road surface to enlarge the loading capacity
and road maintainence to prevent the road crackle.
Glass Fiber Geogrid Specification
specification
performance | EGA -25-25 | EGA -30-30 | EGA -40-40 | EGA -50-50 | EGA -80-80 | EGA -100-100 | EGA -50-50-Z Self-adhesive |
Tensile Strength (KN/m) | warp | 25 | 30 | 40 | 50 | 80 | 100 | 50 |
| weft | 25 | 30 | 40 | 50 | 80 | 100 | 50 |
| Elongaton% | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 |
| Mesh Size (mm) 25.4X25.4 12.7X12.7 |
| Width(m) | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 |
Glass Fiber Geogrid Features:
(1)High tensile strength in warp and weft directions;
(2)Low elongation;
(3)Excellent temperature range;
(4)Good anti-age and alkali-resistance

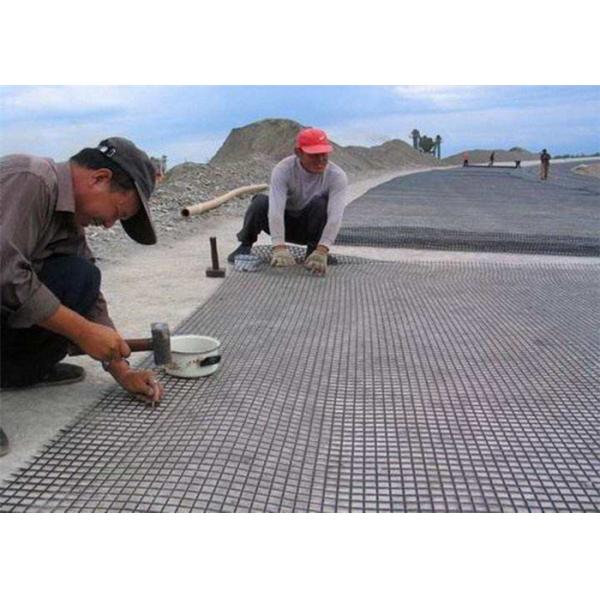

Glass Fiber Geogrid Application:
1. The old asphalt concrete pavement, reinforced asphalt surface
enhancement, disease prevention and control.
2 .radical reinforcement of soft soil treatment, water is conducive
to the consolidation of soft soil analysis, effectively inhibit the
settlement, uniform stress distribution, and enhance the overall
strength of the roadbed.
3. It reinforce old asphalt concrete road surface and asphalt
layer, and prevents damage
