Double Glazing Insulated Glass Machinery with Argon Gas Filling
Vertical Insulating Glass Production Line adopt Siemens control
system,keep stable performance,applicable to produce stepped
IG,triple IG and shaped IG.
Main Features of IG line
• German Siemens PLC control system, touch screen interface
• 3 pairs of soft brushes can wash online and offline Low-E glass
• Automatic identification coating and Low-E glass
• Adjustable pressing board to keep the plate pressing surface
straight
• The washing machine adopts SS material and waterproof device
• Water tank with automatic temperature control and water
processing system
• Noise reduction system
• Online display of washing speed
• Automatic external rotary positioning system of glass
• Connection mode of aviation plug
• Intelligent intermittent work, saving energy
• Adopts conveyor belt to transfer glass, uses servo motor to press
glass
• Ultra-long (2500mm*3500mm) insulating glass can be compressed
twice
• The pressing plate can be opened for easy maintenance
• Automatically fill argon gas with significant sealing effect,
higher argon content
• Set zones to fill different size of glass with follow-up sealing
method reduces argon loss

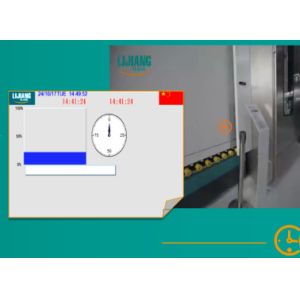

• Can set gas value and show the process of filling gas on the
touch screen
• Pressing board with adjustable structure to guarantee
long-lasting service life
• Fast reacting sensor for permanent control of gas filling process
• Gas concentration can reach more than 90%
• Standard gas is Argon gas
• No need to drill holes on the spacer frame
Options:
• Pre-wash machine
• Triple Insulating Glass unit
• 4-sided step Insulating Glass unit
• Automatic Gas filling, set gas value, display the process of
filling, high gas concentration
Technical parameters
Minimum glass size | 280mm*400mm |
Maximum glass size | 2500x3500mm |
Flat glass thickness | 3-15mm |
Double Glazing glass thickness | 60mm |
Washing speed | 2-10m/min |
Washing brushes | 6 pieces |
Water supply | 0.5t/h, ≤40s/cm |
Air supply | 0.8m/min pressure≥0.8MPa |
Total power | 3P380V 50HZ 40KW |
Dimension | 23500mm*3200mm*3700mm |
Related product
Butyl Extruder Machine LJTB 03
Main feature
• Imported pneumatic and hydraulic supercharging system
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
Desiccant Filling Machine LJGZ 2020
Main feature
• Adopt Siemens PLC control system
• Touch screen interface, easy operation
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)
Technical data
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1100mm*1100mm*3600mm |
