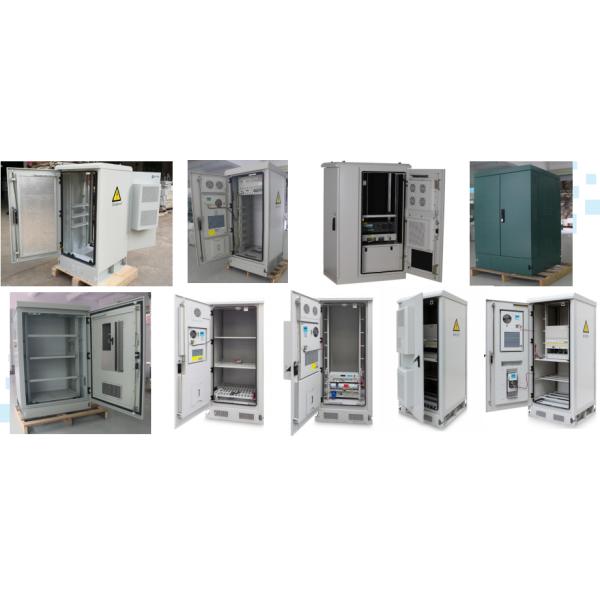

Double Skin IP65 700mm Width Outdoor Electrical Cabinet

Double Skin IP65 Outdoor Electrical Cabinet Anti-Seismic Energy Efficient Insulation UPS Battery Enclosure

1. Applications

The ET7070170-UP Outdoor Telecom Cabinet is mainly used in wireless communication base station:

(1) Access/transmission switching station

(2) Emergency communication/transmission

(3) 4G,5G system

(4) Communication/network integrated service

(5) The cabinet is suitable for outdoor environment, such as road side, park, building roof, mountain area, flat ground, etc. The cabinet can be installed with base station equipments, power supply equipments, batteries, temperature control equipments, transmission equipments and other equipments, or the cabinet can reserve installation space and heat exchange capacity for the above equipments, providing reliable mechanical and environmental protection for normal operation of the internal equipments.

2. Feature

• IP 65 rating (Optional IP55 available upon request)
• Internal cooling provided by efficient forced ambient air, Air-Conditioner or Heat Exchanger Unit
• Double Wall with energy efficient insulation for protection of equipment from sudden or rapid thermal shock.
• Optional Anti-vibration mounts protect equipment from vibration due to trains etc.
• Multi-point lock rod system on both front and rear doors as standard
• 19” panel mounting posts as standard with optional ETSI or customer specific mounting practise configurations
• Doors secured with steel dead locking system lock (support PADLOCK)
• Multi-stage cleaning and pre-treatment prior to the application of a 120micron powder coating
• Manufactured from heavy gauge galvanized material
• Installed using “direct bury” in-ground root or overground plinth system
• Includes many anti-vandal features within the construction
• Used in station, carpark, trackside applications for housing and protecting active communications, UPS, DVR and sensitive electronic equipment
• Cable entry is via the base as standard with side or roof entry available upon request.

3. Specifications

(1) Technical Parameters

Introduction

Tianjin Estel Electronic Science and Technology Co., Ltd (ESTEL(GUANGDONG) TECHNOLOGY CO., LTD), located in China, is a professional supplier of integrated outdoor telecom cabinet and temperature control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’ specific needs accurately.

The base station integrated solutions and products include outdoor integrated telecom equipment cabinet, battery cabinet, RRU cabinet, power supply cabinet, environment monitoring system, TEC peltier air conditioner, AC220V compressor air conditioner, DC48V variable frequency air conditioner, heat exchanger, rectifier, UPS, embedded telecom power system etc. All the above solutions and products can be custom made.

Our products and solutions have been deployed all over China. Our main domestic customers are China Telecom, China Mobile, China Unicom, State Grid, Shenzhen / Beijing Metro and Huawei / ZTE etc. In addition, our products have been exported to Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries, etc.

“ Customers First, Quality First ” is always our principle. We have attained many certifications, such as ISO9001, ISO14001, OHSAS18001, CE, UL, FCC etc. AS a telecom integrated solutions / energy saving system integrator in China, We have strong advantages in technology competitiveness, management competitiveness ,service competitiveness and price competitiveness. Through many years of experiences in design, production and implementation of different projects around the world, we have gained great reputation. Relying on professional technique and strict quality control, we will continuously offer high cost-effective products and solutions to our respectable customers globally. We will always try our best to meet customers’ need and requirement.
