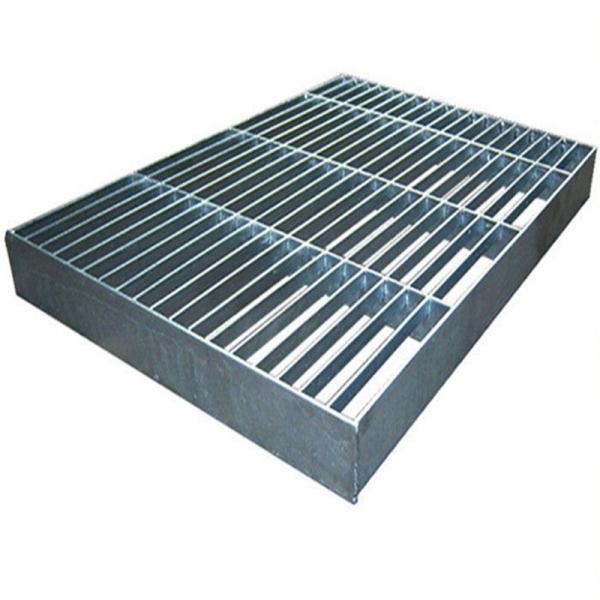

Hot DIP Galvanized / Painted Platform Steel Grating
Our company
My company mainly produces steel plate series products:stainless
steel plate,glass fiber reinforced plastic steel grid boad,(flat
pallet tread trench cover),widely used in industry,agriculture,construction and
other fields our company has the unique product model to meet the
customer's standards in quality,safety,beauty and installation,etc.,and is
highly evaluated by customers at home and abroad.
Description
The surface of the hot-dip galvanized steel grating has undergone a
special hot-dip galvanizing treatment, its chemical and physical
properties are stable, and it is not easy to be corroded and
oxidized by air and microorganisms. Can significantly increase the
load capacity of the trench. Prevent collapse. The hot-dip
galvanized steel grating with flat steel spacing of 3 cm has
greater impact resistance and has the characteristics of maximum
span. The longer its service life, generally in the range of 40-50
years. If no destructive factors are considered to be involved,
hot-dip galvanized steel grating is a very good steel frame
structure and load-bearing platform.
| No. | Item | Detailed Description |
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3,
32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' '
, 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' '
, 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc |
| 2 | Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25,
60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc |
| 3 | Twisted Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| 4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel &
Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Grating Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |
Feature
1. Save materials; 2. Reduce investment; 3. Simple construction; 4
Save construction period; 5 Durable; 6. Modern style; 7.
Lightweight structure; 8. Anti-fouling; 9. Reduce wind resistance;
10 Simple design; 11 , Ventilation, lighting, heat dissipation,
explosion-proof, good anti-skid performance;
Product pictures
Application
Platform steel grating is suitable for alloys, building materials,
power stations, boilers, shipbuilding, petrochemical, chemical and
general factory buildings, municipal construction and other
industries. It has ventilation, light transmission, non-slip,
strong bearing capacity, beautiful and durable, easy to clean and
install. A new and updated construction product.

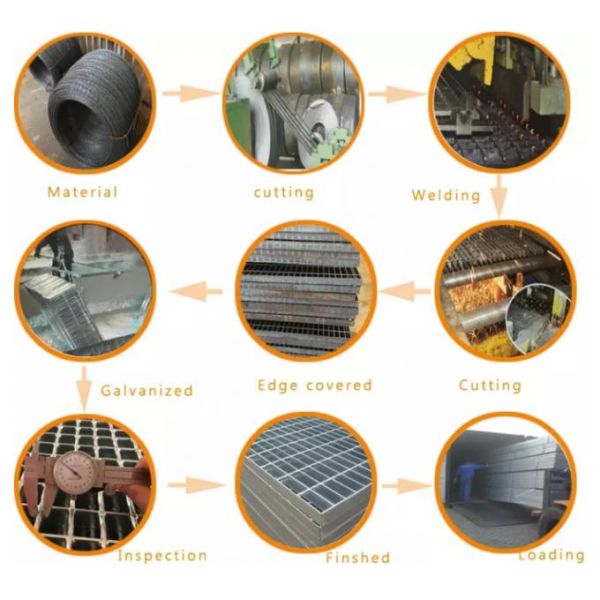

Produce
Certificate
