| Brand Name : | HANJIU |
| Model Number : | BMK2 MOTOR |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T, D/P, D/A, L/C |
| Supply Ability : | 300000PCS PER YEAR |
| Delivery Time : | 25-30DAYS |

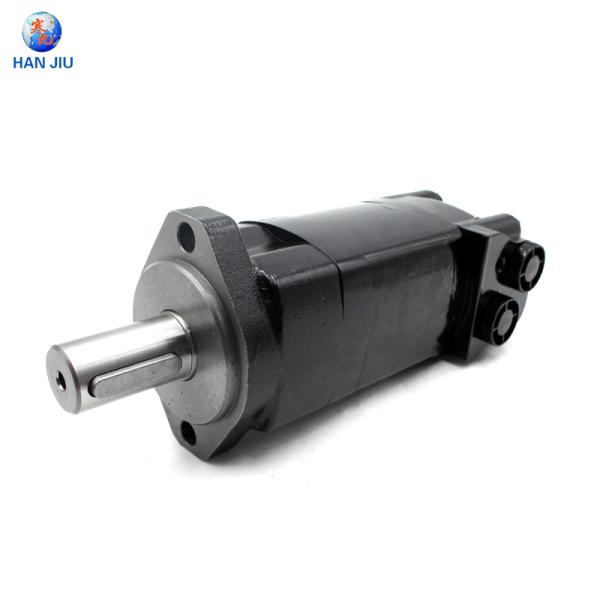

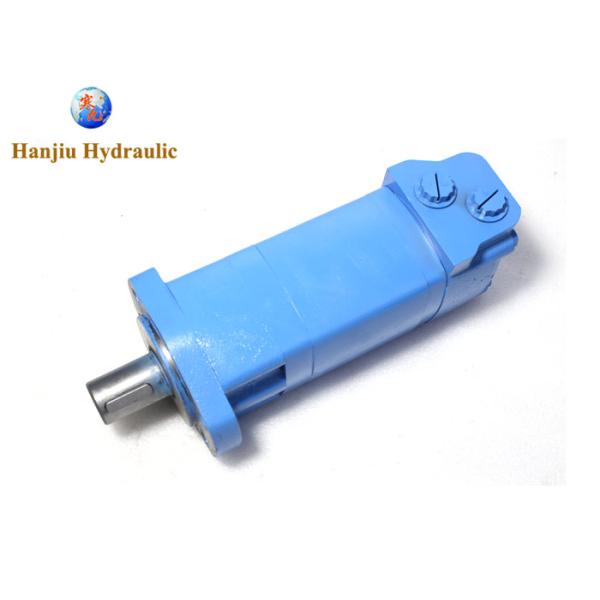

2000 Series Geroler Motor, 29.8 cu in/rev,
4 Bolt Magneto Mounting Flange,31.75mm Shaft
7/8-14 St.Thd. O-Ring
| Brand | HANJIU |
| Displacement | 29.8 Cir |
| Product Type | Simple product |
| Features | Blue Paint |
| Mount | 4 Bolt Magneto |
| Ports | 7/8-14 St.Thd. O-Ring |
| Supplier Part Number | 104-3917-006 |
| Product Weight | 27.00 lbs |
Main specification
| TYPE | BMK2 | BMK2 160CC | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 475CC | |
| Displacement(ml/r) | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
Max.Pressure.Drop(Mpa) | cont. | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak. | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max.Torque(N.m) | cont. | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Speed.Range(r/min) | cont. | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max.Flow(cont.)(L/min) | cont. | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight(kg) | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |




We are offering an exclusive range of Gerotor Motor to valued clients. Our engineers develop this range using optimum quality material and modern equipment. Furthermore, our products are highly appreciated for long-lasting nature. Quality tested on various constraints, these products promise international standards. Additionally, we are capable in making these products available in bulk quantity and in time.
|
