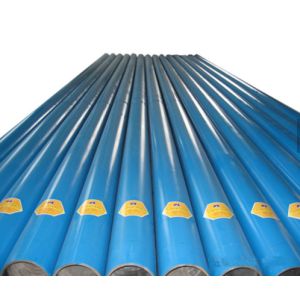

    ISO9001 20MPa Sealing Oilfiled 9 5/8" Washover Pipe

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRTXG
    Certification : API, ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 20000 Pcs Per Month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    ISO9001 20MPa Sealing Oilfiled 9 5/8" Washover Pipe

    API 7-1 Oilfiled Washover Tool Size 9 5/8" Washover Pipe

    Product Introduction

    The washover pipe is a kind of tool for special purposed to solve sticking pipe. The wash over pipe adopt two-step thread(FJWP) as connect thread. It is hight tensile strength, non-interference threads, is made of high strength pipe and fast shackle, seal reliable.

    In fishing operations, a large-diameter pipe fitted with an internal grappling device and tungsten carbide cutting surfaces on the bottom. The washover pipe can be lowered over a fish in the wellbore and to latch onto and retrieve the fish.

    Washover proceed is the efficient way for freeing the stuck accidents during the downhole operation. It is almost suitable for various stuck accidents. When the stuck accidents happen in downhole, it can free the stuck tools in short time, releasing you anxiety.

    Main Accessories of Our Washover Pipe

    Drive Sub:
    Drive Subs provide the crossover connection between fishing string and the washover pipe. Each is machined from high-grade alloy steel and heat treated to provide maximum strength and durability.

    Lift Plug:
    Lift Plug is designed to provide an economical method of handling washover strings. It is available in all thread types and size, has sufficient shoulder diameter to support handling the washover string.

    Washover Safety Joint:
    Washover safety joint is manufactured to provide safe and easy release and make-up whenever disengagement from the washover string becomes necessary. This dependable, field-tough tool is designed to transmit torque in either direction when placed in the washover string.

    Technical Parameters of TR Washover Pipe

    TYPE

    O.D

    mm

    I.D

    mm

    Min O.D

    Of using

    mm

    Diameter of the fish To be Cut

    mm

    Max.Tensile Load

    kN

    Max. Working TorqueN•m

    Sealing Pressure

    MPa

    TXG114.30-8.56 114.30 97.18 120.65 80.90 390 9490 20
    TXG127-9.19 127.00 108.62 146.05 101.60 440 12202 20
    TXG139.70-9.17 139.70 121.36 152.4 117.48 500 14914 20
    TXG146.05-7.92 146.05 130.21 161.93 127.00 500 14914 20
    TXG146.05-9.00 146.05 128.05 161.93 120.65 560 16269 20
    TXG168.28-8.94 168.28 150.39 187.33 142.88 600 21693 15
    TXG177.80-9.19 177.80 159.42 200.03 152.40 640 24404 15
    TXG193.68-9.53 193.68 174.63 212.73 168.28 700 31183 15
    TXG193.68-10.92 193.68 171.83 212.73 165.10 810 36607 15
    TXG193.68-12.70 193.68 168.28 212.73 161.93 1060 43386 15
    TXG203.20-9.53 203.20 184.15 215.90 177.00 820 32539 15
    TXG206.38-9.40 206.38 187.58 215.90 177.80 830 32539 15
    TXG219.07-11.43 219.07 196.21 244.48 187.33 1100 47453 15
    TXG219.07-12.70 219.07 193.67 244.48 184.15 1220 54232 15
    TXG228.60-10.80 228.60 207.01 250.83 200.03 1260 47453 15
    TXG244.48-11.99 244.48 220.50 266.70 212.73 1450 67791 15
    TXG244.48-13.84 244.48 216.80 266.70 206.37 1560 81349 15
    TXG273.05-11.43 273.05 250.19 290.45 238.13 1620 81349 15
    TXG273.05-12.57 273.05 247.91 298.45 234.95 1640 88128 15
    TXG298.44-12.42 298.44 273.60 323.85 263.53 1800 108465 10
    TXG339.72-13.06 339.72 313.60 365.13 301.62 2020 149140 10
    TXG406.40-16.66 406.40 373.08 444.50 355.60 2500 254894 7.0

    Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.


    TR engages in oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.

    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

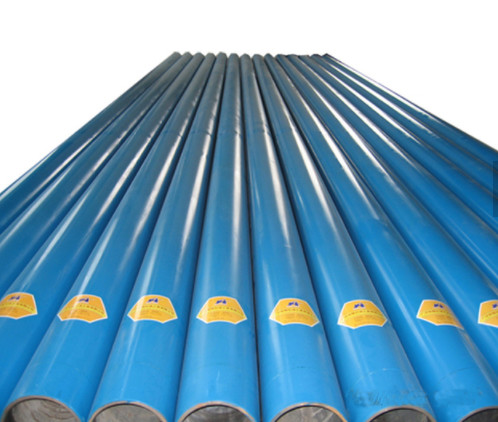

    Quality ISO9001 20MPa Sealing Oilfiled 9 5/8" Washover Pipe for sale
