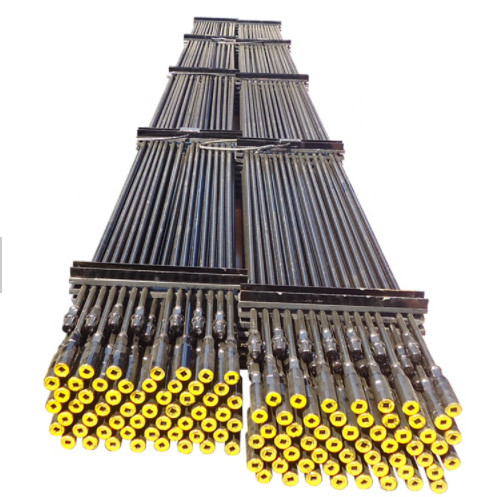

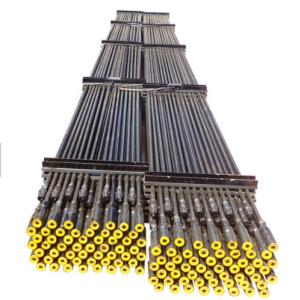

Oil Extraction API 11B Metal Spray Sucker Polished Rod

API 11B Metal Spray Sucker Polished Rod for Oil Extraction

Product Overview

The manufacturing process are used the advanced technologies globally. High-strength and super high strength sucker rod are our main products, in accordance with the standards SY/TSO29, SYTS6272& API Spec 11B. We also produce the specially sucker rod and pony sucker rod ,to filling with our customers’ requirements.

Before the production, the spectrometer are used for the material analysis . The magnetic detector are used to detect the pipes one by one. The Infrared thermometer are applied to monitor the temperature. Others high technologies are also used in the production to ensure the quality.

We can supply the folllowing kind of Polished rod:
Normal Type
One end diameter enlarged polished rod
high-strength, long stroke, corrosion resistant polished rod-
I. Using High Strength Steel
II. Surface Electroplating
III. Surface Spray Metal.

Main Benefits of Oilfield Sucker Rod

• Grade HL and HY sucker rods are super-high strength sucker rod, having the same size and main parameter as grade D sucker rod, but their strength is capable to reach 966~1195Mpa. Grade HL, HY sucker rods are suitable for the deep oil-well or big-pump capacity oil-well.
• Grade D sucker rod is made from fine alloy steel, featured by high strength, better plasticity and long service life after heat treatment. This product is suitable for no-corrosion or light-corrosion environment oil-well widely.
• Grade C sucker rod is made from fine carbon steel. It is featured by mid-strength, good plasticity, toughness, corrosion resistance. It is suitable for sour medium environment where it is not susceptible to sulphuric stress cracking.
• And grade K, KD and KH sucker rod are made from fine Cr-Ni-Mo alloy steel containing different amount of Ni. They possess more powerful anti-corrosion function. The products are suitable for strong corrosion oil-well, with depth of shallow, middle and deep respectively.

Technical Information of Our Oilfield Sucker Rod

Nominal Size		1-1/8 (in)		1-1/4 (in)		1-1/2 (in)
		in.	mm	in.	mm	in.	mm
Outside Diameter	Dimension	1.125	28.58	1.25	31.75	1.50	38.10
	Tolerances	+0.005 -0.010	+0.13 -0.25	+0.005 -0.010	+0.13 -0.25	+0.005 -0.010	+0.13 -0.25
Nominal Diameterof Pin-thread	Dimension for referance	0.938	23.83	1.188	30.18	1.375	34.93
		1.063	27.00
Note:sizes of sucker rods with which used	Nominal Dimension (for referance)	5/8		7/8		1
		3/4
Note:Standard lengths	Dimension	ft 8,11,16, 22, 26,30,36, 40	m 2.4,3.4, 4.9, 6.7,7.9, 9.1, 11.0,12.2	ft 8,11,16, 22, 26,30,36, 40	m 2.4,3.4, 4.9, 6.7,7.9, 9.1, 11.0,12.2	ft 8,11,16, 22, 26,30,36, 40	m 2.4,3.4, 4.9, 6.7,7.9, 9.1, 11.0,12.2

We have a rich history, spanning more than 10 years in the mining and drilling industry. This long record of experience has led us to become the China leader and expert we are today. With one manufacturing location, some of the most advanced drilling technology on the market, we continue to be innovators of the industry. Until now our products are popular in United States , Australia, England, France, Japan, Brazil, India, Russia and many other countries & regions.

Xi'An TianRui Petroleum Machinery Equipment Company Limited is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning, manufacturing and quality monitoring & traceability to ensure that our products match the highest quality & reliability Standards similar to any International major in this field.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Xi'An TianRui Petroleum Machinery Equipment Co.,Ltd. (For short: TR Solids Control) is a professional manufacturer of solids control equipment and mud recovery system, located in Xi'an City, China. Since 2010, TR Solids Control focused on the development and production of various types of solids control equipment & system. Our R&D personnel are composed of rich experienced crew who have long-time work on oil drilling mechanical design, so we supply professional drilling solids control equipment with the enterprise spirit of continuously improvement and constantly innovation.

Our main products include: drilling mud shale shaker, decanter centrifuge, mud agitator, mud cleaner, desander, desilter, vacuum degasser, submersible slurry pump, centrifugal pump, screw pump, shear pump, jet mud mixer, mud hopper, liquids gas separator, flare ignition device, mud tank. Spare parts like shaker screens, hydrocyclones, impeller, mechanical selas and gear box etc. They are widely used in oil and gas drilling, coal bed methane system, trenchless HDD & tunneling, micro-tunneling, drilling waste management, bored pile construction, etc.

TR Solids Control brings in international advanced technology and imports high precision processing equipment for production, and builds talent training cooperation relations with lots of university in Xi’An city for replenishing new blood continuously to us. We also formed a high-tech modern integrated enterprise with design, manufacture, sales and service. TR Solids Control has our own improved management system, high level professionals and excellent service team. Our production management strictly implements API quality specification requirements, and we have strict regulations to materials procurement, producing and processing , equipment debugging and whole process of equipment ex-factory. We’re fully capable of supplying satisfied products and services timely as per client’s request.

In terms of products quality management, TR Solids Control continuously update our own management level. We passed the international quality management system ISO9001-2015. TR Solids Control pursuits high-quality product and establishes excellent quality management system, this enables us to get the appraoval from clients.

TR Solids Control adheres to the enterprise purpose--Customers’ Satisfaction is the Highest Pursuit of us. Our goal is to create the global famous brand enterprise, and supply excellent and stable drilling fluids recycling purification system and HDD(Horizontal Direction Drilling) mud recycling system to users. Our products are used in Chanceful Oilfield in north of Shaaban, Chang Oilfield, Sinkiang Oilfield and other national drilling company. At the same time we exported our products to almost 40 countries and regions like South America, US, Europe, Egypt, Dubai, Abu Dhabi, Oman, Pakistan, Russia, Australia, Korea, Vietnam, Myanmar, etc.

Our goal is simple: to sell the best equipment at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Solids Control Equipment, to help others achieve their goals.
