SS P4 V2 V3 V4 NJ208 Cylindrical Roller Bearing

    Buy cheap SS P4 V2 V3 V4 NJ208 Cylindrical Roller Bearing from wholesalers

    Buy cheap SS P4 V2 V3 V4 NJ208 Cylindrical Roller Bearing from wholesalers
    • Buy cheap SS P4 V2 V3 V4 NJ208 Cylindrical Roller Bearing from wholesalers
    • Buy cheap SS P4 V2 V3 V4 NJ208 Cylindrical Roller Bearing from wholesalers
    • Buy cheap SS P4 V2 V3 V4 NJ208 Cylindrical Roller Bearing from wholesalers
    • Buy cheap SS P4 V2 V3 V4 NJ208 Cylindrical Roller Bearing from wholesalers

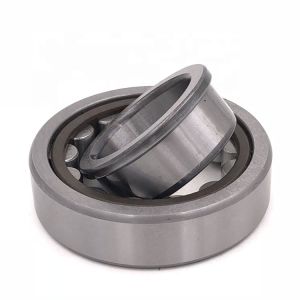

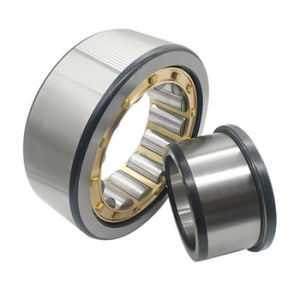

    SS P4 V2 V3 V4 NJ208 Cylindrical Roller Bearing

    Ask Lasest Price
    Brand Name : SILURIAN
    Model Number : NJ208
    Certification : ISO9001 , ISO14001
    Price : $2-15.36/pcs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS Per Month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    SS P4 V2 V3 V4 NJ208 Cylindrical Roller Bearing

    Cylindrical Roller Bearings
    Wholesale good price nn NJ208 cylindrical roller bearing

    Types of cylindrical roller bearing:

    Name
    Cylindrical roller bearing
    Material
    100%GCR15,SS,Carbon steel
    Grade
    P0, P6, P5, P4
    Vibration value
    V1 V2 V3 V4
    Noise
    ZV1 ZV2 ZV3
    product name BC1-0738A BC10738A Cylindrical Roller Bearing for Atlas Air Compressor
    bearing number BC1-738A
    size 40*80.2*18mm
    weight 0.37kg
    package color box or as customers' request
    structure cylindrical roller bearing
    application Atlas air compressor
    OEM service acceptable
    stock 10000pcs
    warranty 1 year

    N type:

    The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.

    NU type:

    The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.

    NJ type:

    The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.

    NF type:

    The outer ring has one integral flange and the inner ring two integral flanges.

    NUP type:

    The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.

    RN type:

    No outer ring and the inner ring two integral flanges.

    NN type:

    NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring. It can make shaft relative bearing between the axial displacement generated in both directions.

    PRODUCT PARAMETERS

    Model number 61011-15-YRX
    Dimension(mm) 15X40.5X28mm
    Weigh(kg) 0.15kg
    Greese/Oil As you requirement,such as SRL ,PS2,AIVania R12 and so on
    Series Eccentric Roller Bearing
    Ring Material Chrome Steel,Carbon steel,bearing steel
    Quality standard ISO 9001:2000 standard
    Precision p0,p6,p5,p4
    Steel pressed cage Bending claw form or rivet form
    Delivery Date Normally ready goods and stock within 7 days
    Payment Term T/T, L/C,Western Union
    Application Home appliances,low noise and high speed electric motors,automotive components,pumps
    Service OEM ODM
    Package industrial package+paper box/wooden box single package+paper box/wooden box
    Details

    we have complete process for the production and quality assurance to make sure our product

    1.Assembly 2,Windage test 3,Cleaning 4,Rotary test 5,Greasing and gland 6,Noise inspection

    7,Rust prevention 9,Product packaging

    N series
    NU series
    NJ series
    d
    D
    T
    Mass (KG)
    N202
    NU202
    NJ202
    15
    35
    11
    0.060
    N203
    NU203
    NJ203
    17
    40
    12
    0.074
    N204
    NU204
    NJ204
    20
    47
    14
    0.110
    N205
    NU205
    NJ205
    25
    52
    15
    0.148
    N206
    NU206
    NJ206
    30
    62
    16
    0.220
    N207
    NU207
    NJ207
    35
    72
    17
    0.344
    N208
    NU208
    NJ208
    40
    80
    18
    0.390
    N209
    NU209
    NJ209
    45
    85
    19
    0.523
    N210
    NU210
    NJ210
    50
    90
    20
    0.510
    N211
    NU211
    NJ211
    55
    100
    21
    0.621
    N212
    NU212
    NJ212
    60
    110
    22
    0.870
    N213
    NU213
    NJ213
    65
    120
    23
    1.050
    N214
    NU214
    NJ214
    70
    125
    24
    1.300
    N215
    NU215
    NJ215
    75
    130
    25
    1.450
    N216
    NU216
    NJ216
    80
    140
    26
    1.720
    N217
    NU217
    NJ217
    85
    150
    28
    2.070
    N218
    NU218
    NJ218
    90
    160
    30
    2.630
    NU2206M
    N2206
    NJ2206
    30
    62
    20
    0.290
    NU2207M
    N2207
    NJ2207
    35
    72
    23
    0.414
    NU2208M
    N2208
    NJ2208
    40
    80
    23
    0.550
    NU2209M
    N2209
    NJ2209
    45
    85
    23
    0.540
    NU2210M
    N2210
    NJ2210
    50
    90
    23
    0.589
    NU2211M
    N2211
    NJ2211
    55
    100
    25
    0.773
    NU2212M
    N2212
    NJ2212
    60
    110
    28
    1.250
    NU2213M
    N2213
    NJ2213
    65
    120
    31
    1.650
    NU2214M
    N2214
    NJ2214
    70
    125
    31
    1.700
    NU2215M
    N2215
    NJ2215
    75
    130
    31
    1.800

    FAQ
    Q: Are you a trading company or a manufacturer?
    A: We have been a bearing manufacturer for more than 20 years. Our factory area is more than 10000 square meters. Welcome Ourfactory.

    Q: How long is your delivery date?
    A: If available, it usually takes 1-3 days. Or 15-20 days if the goods are not in stock.

    Q: What brand can you offer? Can you accept OEM and customization?
    A: Jnll is our brand, we also accept OEM, can be customized according to samples or drawings.

    Q: Do you have any stock?
    A: Yes, most of the bearings on Alibaba are in stock.

    Q: What advantages do you have?
    A: We have a strong production capacity and inventory, large, medium and small bearing stocks, compared with other companies, we can have a great advantaget
